0.3mm Pitch
0102030405

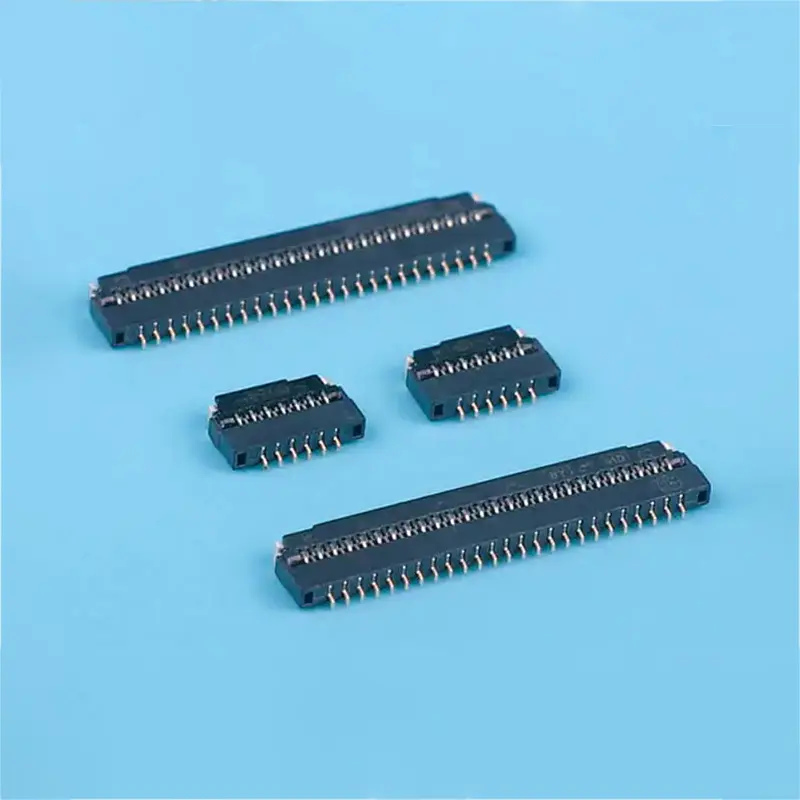

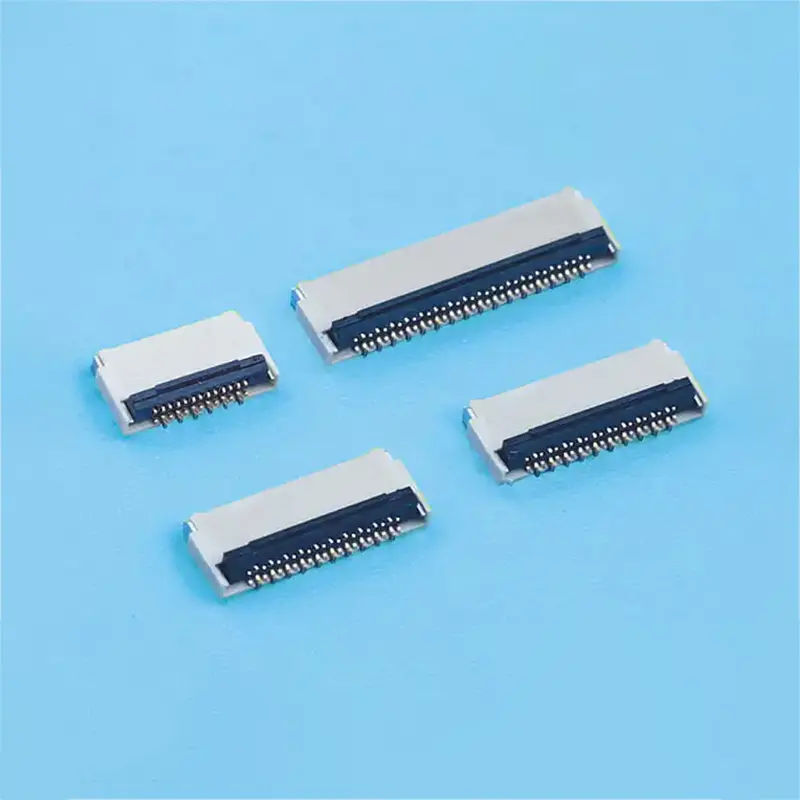

0.3mm Pitch Easy on/Back Flip Type H=1.0
Product Features
1.High-precision connection: The FPC flat connector with a 0.3mm pitch adopts precise manufacturing processes to ensure the stability and reliability of the connection. Its 0.3mm pitch enables high-density connections, making it suitable for electronic devices with high precision requirements.
2.High reliability: The FPC flat connector with a 0.3mm pitch uses high-quality materials and advanced manufacturing processes, ensuring good durability and corrosion resistance. It can maintain stable performance over long periods of use and is less prone to loose or broken connections.
3.High signal transmission rate: The design of the FPC flat connector with a 0.3mm pitch provides a higher signal transmission rate. Its compact pitch and optimized electrical design reduce signal transmission losses, improving the quality and speed of signal transmission.
4.Flexible and diverse applications: The FPC flat connector with a 0.3mm pitch is suitable for various electronic device connection needs. Whether it's smartphones, tablets, laptops, or other portable devices, they can all achieve fast and stable data transmission and power supply through this connector.
Product Advantages
1.High-density connection: The FPC flat connector with a 0.3mm pitch and 0.3mm spacing can achieve high-density connections, saving space and improving device integration. It provides better solutions for electronic devices that require a large number of connections, such as smartphones, wearable devices, etc.
2.High-speed transmission: The design of the FPC flat connector with a 0.3mm pitch can provide higher signal transmission rates. In scenarios requiring high-speed data transmission, such as video transmission and network communication, it ensures stable and fast signal transmission, enhancing user experience.
3.Stability and reliability: The FPC flat connector with a 0.3mm pitch uses high-quality materials and advanced manufacturing processes, ensuring good stability and reliability. During long-term use, it maintains stable performance without frequent connection loosening or breaking, enhancing device reliability and lifespan.
4.Simplified design and assembly: The design of the FPC flat connector with a 0.3mm pitch simplifies the design and assembly process of devices. Its compact size and easy plug-and-play feature reduce the number of connectors and installation steps, improving production efficiency and reducing costs.
5.Versatile applications: The FPC flat connector with a 0.3mm pitch is suitable for various electronic device connection needs. Whether in consumer electronics, communication equipment, or industrial control devices, it enables fast and stable data transmission and power supply, meeting the demands of different industries.
6.Environmental protection and energy conservation: The design of the FPC flat connector with a 0.3mm pitch reduces the number of connectors used, lowering energy consumption and resource consumption. Additionally, its high-quality materials and manufacturing processes comply with environmental regulations, minimizing the impact on the environment.
7.Technical support and after-sales service: We provide comprehensive technical support and after-sales service to ensure smooth and satisfactory customer experiences during usage. Whether it's product selection, technical guidance, or troubleshooting, we promptly respond and provide professional solutions.
Specifications
| Model | Diagram | Specifications |

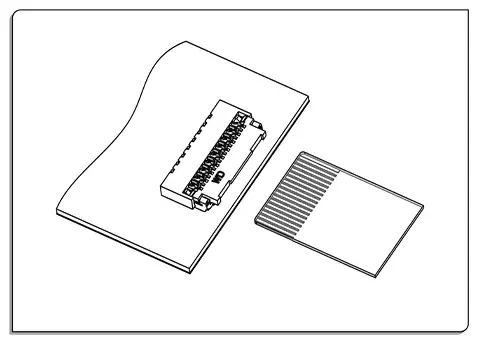

| Easy on |
|
1、CKT: 13Pin to 71Pin 2、Current rating: 0.2A AC/DC 3、Voltage rating(max): 30V, AC/DC 4、Working Temperature: -25°C~+85°C, (Including temperature rise in applying electrical current) 5、Contact resistance:Initial value ≤40mΩ After environmental testing ≤60mΩ 6、Insulation resistance:≥50MΩ 7、Withstand voltage:500VAC(rms) 8、Applicable PCB board thickness:1.6mm to 2.0mm |

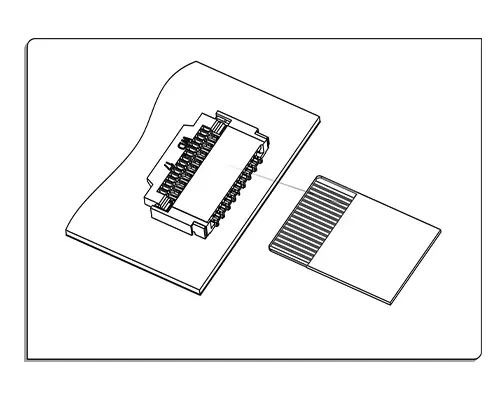

| Back Flip |
|
Mounting Measurement

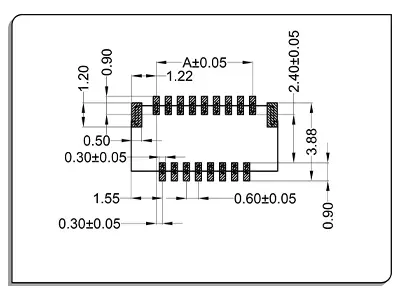

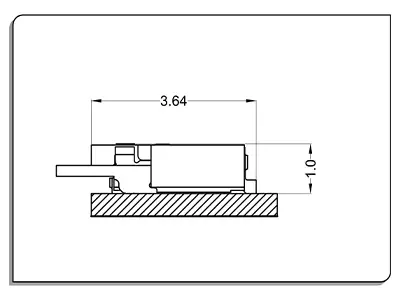

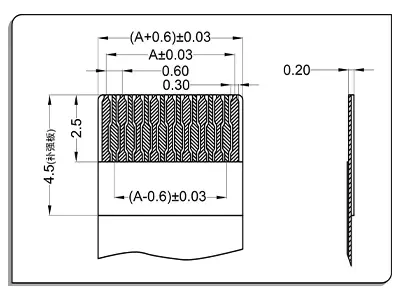

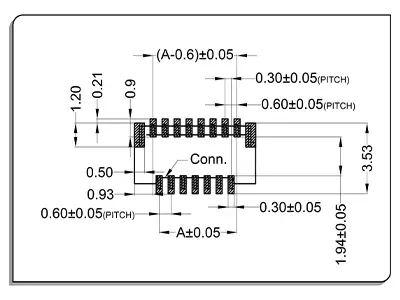

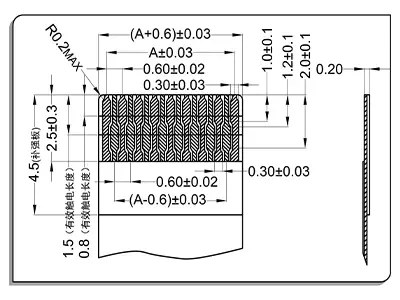

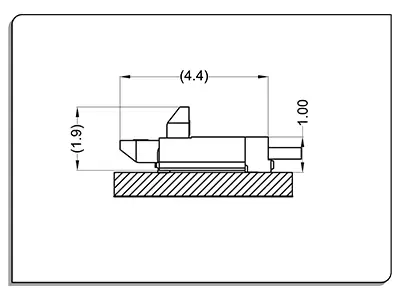

| Assembly layout | Applicable Flat cable | P.C.B Layout | |
| Easy on |
|
|
|
| Back Flip |
|
|
|
Product description

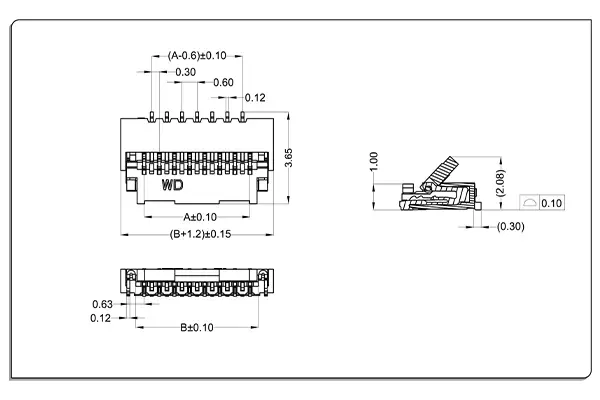

Easy-on R/A
Material and Finish :Housing:LCP UL .94V-0 & Terminal:phosphor bronze & Fitting: phosphor bronze;
Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 13.00 | XW03102-13 | 3.60 | 4.26 |
| 15.00 | XW03102-15 | 4.20 | 4.86 |
| 17.00 | XW03102-17 | 4.80 | 5.46 |
| 19.00 | XW03102-19 | 5.40 | 6.06 |
| 21.00 | XW03102-21 | 6.00 | 6.66 |
| 23.00 | XW03102-23 | 6.60 | 7.26 |
| 25.00 | XW03102-25 | 7.20 | 7.86 |
| 27.00 | XW03102-27 | 7.80 | 8.46 |
| 29.00 | XW03102-29 | 7.80 | 9.06 |
| 31.00 | XW03102-31 | 8.40 | 9.66 |
| 33.00 | XW03102-33 | 9.00 | 10.26 |
| - | - | - | - |
| 71.00 | XW03102-71 | 21.00 | 21.66 |

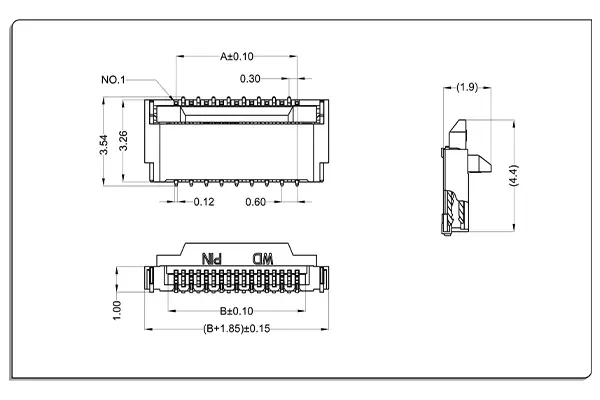

Back Flip R/A
Material and Finish ：Housing: LCP UL 94V-0 & Terminal:phosphor bronze & Fitting :phosphor bronze;
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 13.00 | HW03102-13 | 3.60 | 4.25 |
| 15.00 | HW03102-15 | 4.20 | 4.85 |
| 17.00 | HW03102-17 | 4.80 | 5.45 |
| 19.00 | HW03102-19 | 5.40 | 6.05 |
| 21.00 | HW03102-21 | 6.00 | 6.65 |
| 23.00 | HW03102-23 | 6.60 | 7.25 |
| 25.00 | HW03102-25 | 7.20 | 7.85 |
| 27.00 | HW03102-27 | 7.80 | 8.45 |
| 29.00 | HW03102-29 | 8.40 | 9.05 |
| 31.00 | HW03102-31 | 9.00 | 9.65 |
| 33.00 | HW03102-33 | 9.60 | 10.25 |
| - | - | - | - |
| 71.00 | XW03102-71 | 21.00 | 21.65 |
