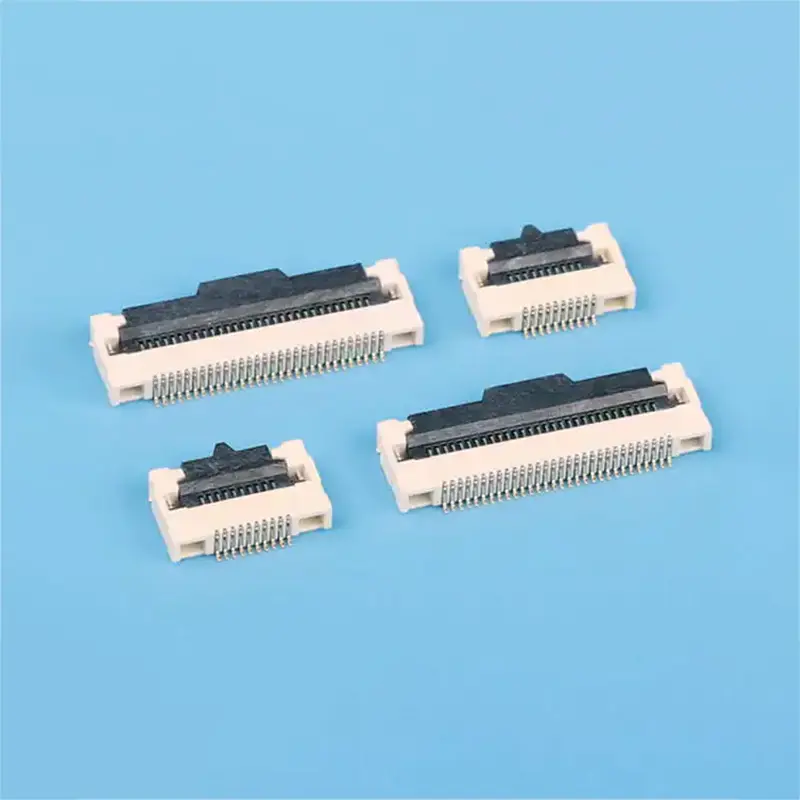

0.5mm Pitch Easy On Type H=2.2 with Buckle

Product Overview

The 0.5mm pitch connector is rated for 0.5A and is suitable for both AC and DC applications, ensuring reliable performance in a wide range of electronic systems. The AC/DC voltage rating of up to 50V makes it suitable for numerous consumer electronics and industrial applications. The connector is designed to operate over a temperature range of -25°C to +85°C, which takes into account the temperature rise when powered on. In terms of electrical performance, the 0.5mm Pitch Easy On Type H=2.2 with Buckle connector has an impressive contact resistance value of less than 30mΩ. Such low contact resistance is critical to minimizing power losses and ensuring efficient signal transmission.

Specifications

Diagram	Specification
	1、CKT: 5Pin to 96Pin 2、Current rating: 0.5A AC/DC 3、Voltage rating(max): 50V, AC/DC 4、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current) 5、Contact resistance: value <30mΩ 6、Insulation resistance:≥100MΩ 7、Withstand voltage: 500VAC(rms) 8、Applicable PCB board thickness: 1.6mm to 2.0mm

Mounting Measurement

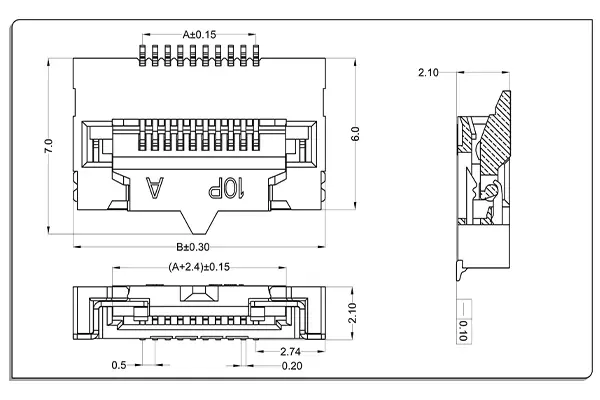

Assembly Layout	Applicable Flat Cable	P.C.B Layout

Product description

Easy-on R/A With Buckle

Material and Finish ：

Housing:LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;

Finish: Tin-plated & Gold-plated
