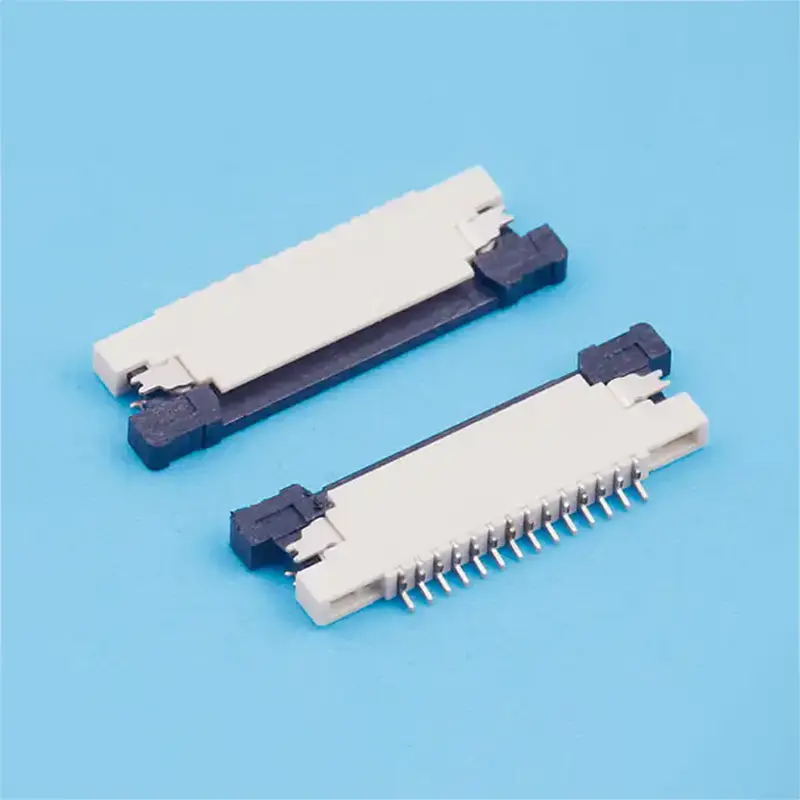

1.0.62mm Pitch ZIF R-A Type Upper Contact H=1.2.jpg

0.62mm/0.7mm Pitch ZIF R/A Type Upper Contact H=1.2

The 0.62mm pitch ZIF R/A-type upper contact and 0.7mm pitch ZIF R/A-type upper contact connectors are essential components for high-density interconnects. Designed to facilitate seamless connections in flexible printed circuits (FPCs), these connectors provide reliable solutions for a variety of applications. With a height of 1.2mm, both connectors are designed to meet the needs of modern electronic devices, saving valuable space while ensuring efficient performance.

Product Details

Product Overview

The 0.62mm pitch connector is designed for flexible printed circuit applications, and its surface mount structure enhances its usability in compact designs. The connector supports 0.5A AC/DC rated current and 50V AC/DC maximum rated voltage, suitable for a variety of electronic devices. The operating temperature range of -25°C to +85°C ensures that the connector can work effectively under various environmental conditions, including the temperature rise generated when power is applied. The initial contact resistance of the connector is less than 30mΩ, and the maximum resistance after environmental testing is 50mΩ, ensuring reliable electrical performance.

Likewise, the 0.7mm pitch connector is designed for flat flexible cable applications and features a PCB mount design that simplifies installation and improves reliability. The connector also supports a 0.5A AC/DC rated current and a 50V AC/DC maximum rated voltage, making it a versatile choice for a variety of electronic applications. The 1.2mm height makes it space-saving, especially beneficial for applications with limited PCB space. An operating temperature range of -25°C to +85°C and a strong contact resistance specification ensure that the connector can withstand the rigors of daily use.

Specifications

Model	Diagram	Specification
0.62mm Pitch ZIF R/A Type Upper Contact H=1.2		1、Current rating: 0.5A AC/DC 2、Voltage rating(max): 50V， AC/DC 3、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current) 4、Contact resistance: Initial value <30mΩ After environmental testing≤50mΩ 5、Insulation resistance:≥500MΩ 6、Withstand voltage: 500VAC(rms) 7、Applicable PCB board thickness: 1.6mm to 2.0mm
	CKT: 14Pin
0.7mm Pitch ZIF R/A Type Upper Contact H=1.2
	CKT: 13Pin

Mounting Measurement

	Assembly Layout	Applicable Flat Cable	P.C.B Layout
0.62mm Pitch ZIF R/A Type Upper Contact H=1.2
0.7mm Pitch ZIF R/A Type Upper Contact H=1.2

Product description

0.62mm Pitch ZIF R/A Type Upper Contact H=1.2

Material and Finish ：

Housing:LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;

Finish: Tin-plated & Gold-plated

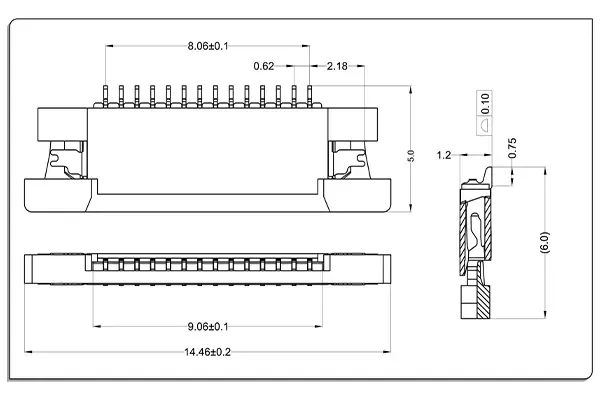

4.Product description.1.jpg

0.7mm Pitch ZIF R/A Type Upper Contact H=1.2
