0.8mm Pitch And 1.0mm Pitch
0102030405
1.0-B Type Double Row 2/3 Generation
Specifications
| Model | Diagram | Specification |

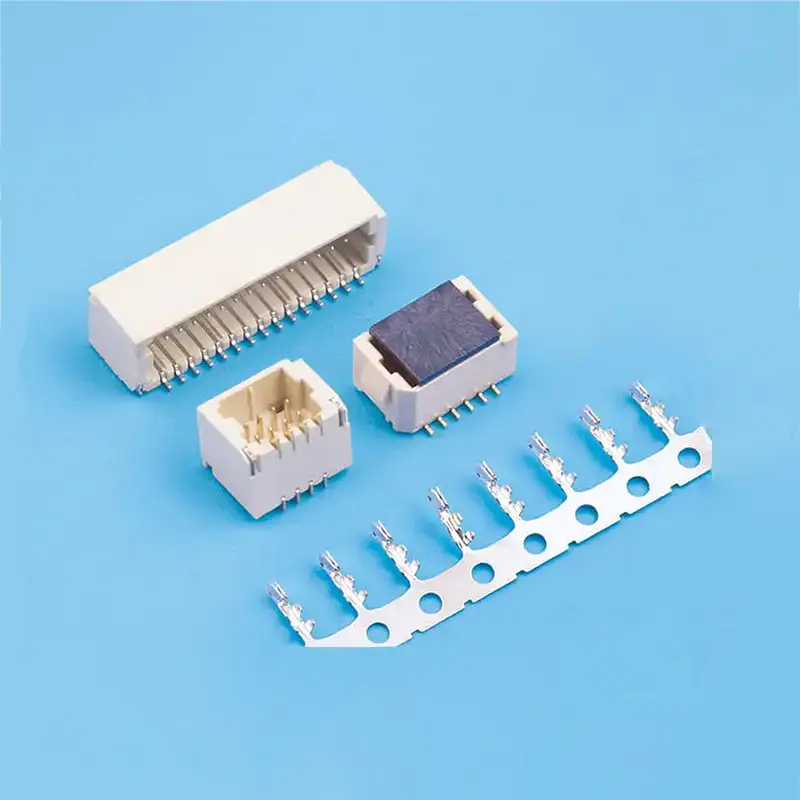

| 1.0-B Type Double Row 2 Generation |  |
1、Current rating: 1A AC/DC 2、Voltage rating(max): 50V, AC/DC 3、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current) 4、Contact resistance: Initial value ≤20mΩ After environmental testing≤40mΩ 5、Insulation resistance: ≥100MΩ 6、Withstand voltage: 500VAC(rms) 7、Applicable wire: AWG #32 to #28 8、Applicable PCB board thickness: 1.6mm to 2.0mm |
| CKT: 2*3Pin to 2*25Pin | ||

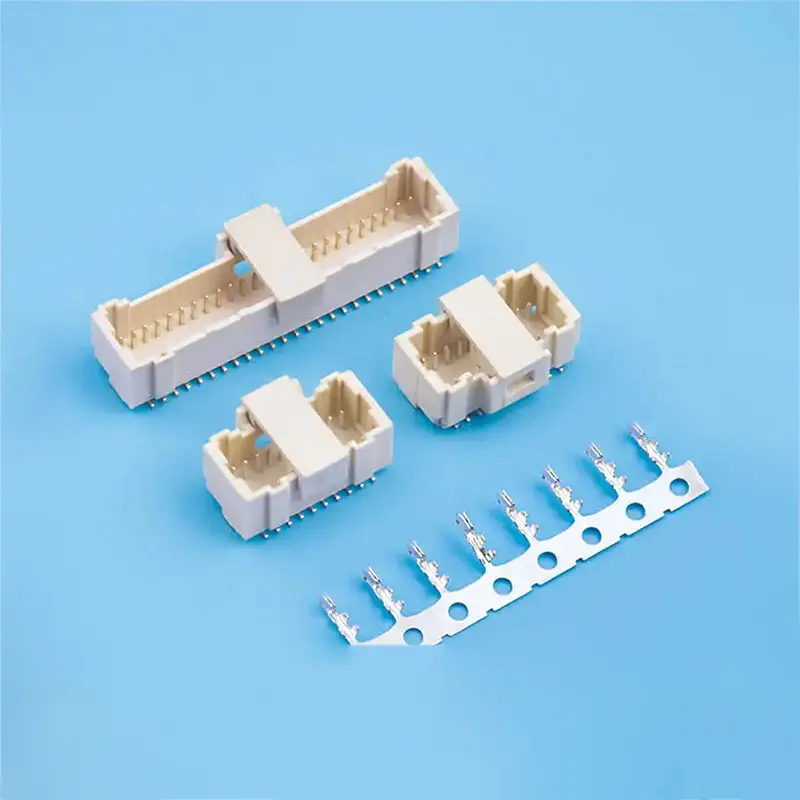

| 1.0-B Type Double Row 3 generation |  |
|
| CKT: 2*10Pin to 2*25Pin |
Mounting Measurement
1.0-B Type Double Row 2 Generation
| Straight Angle | Right Angle |
 |
 |

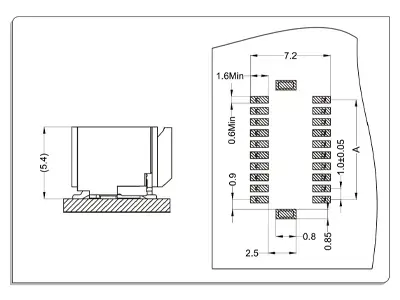

1.0-B Type Double Row 3 generation
Straight Angle

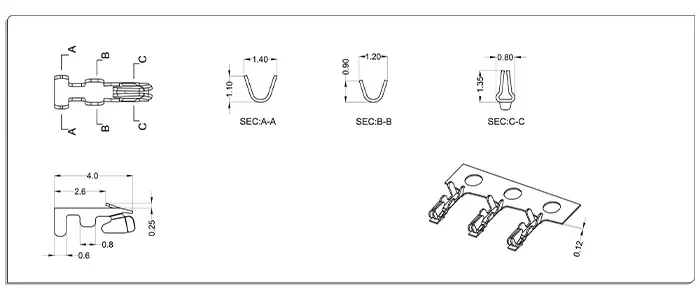

Row 2 Generation Product Parameter
Terminal: T=0.12mm
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| WB100B0- T0 | AWG#32~ #28 | 0.8mm MAX | phosphor bronze | Tin & Gold-plated |
Product description
1.0-B Type Double Row 2 Generation

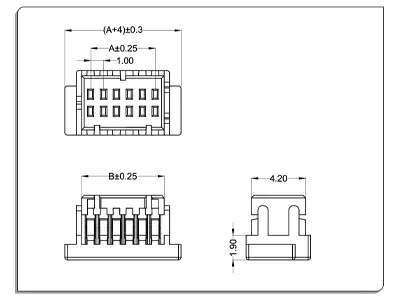

Housing
Material: Nylon 66 UL 94V-0
| CKT | Part No | DIM A | DIM B |
| 2*3 | WB100B0-06 | 2 | 3.4 |
| 2*4 | WB100B0-08 | 3 | 4.4 |
| 2*5 | WB100B0-10 | 4 | 5.4 |
| 2*6 | WB100B0-12 | 5 | 6.4 |
| 2*7 | WB100B0-14 | 6 | 7.4 |
| 2*8 | WB100B0-16 | 7 | 8.4 |
| 2*9 | WB100B0-18 | 8 | 9.4 |
| 2*10 | WB100B0-20 | 9 | 10.4 |
| 2*11 | WB100B0-22 | 10 | 11.4 |
| 2*12 | WB100B0-24 | 11 | 12.4 |
| 2*15 | WB100B0-30 | 14 | 15.4 |
| - | - | - | - |
| 2*25 | WB100B0-50 | 24 | 25.4 |

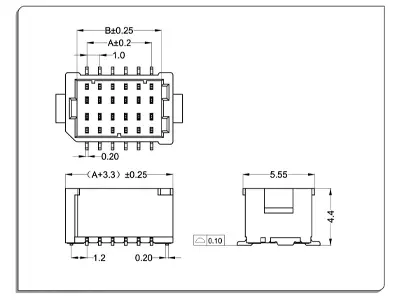

Wafer
Material and Finish :
Housing:LCP UL94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;
Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2*4 | WB100BL-08 | 3 | 4.55 |
| 2*5 | WB100BL-10 | 4 | 5.55 |
| 2*6 | WB100BL-12 | 5 | 6.55 |
| 2*7 | WB100BL-14 | 6 | 7.55 |
| 2*8 | WB100BL-16 | 7 | 8.55 |
| 2*9 | WB100BL-18 | 8 | 9.55 |
| 2*10 | WB100BL-20 | 9 | 10.55 |
| 2*11 | WB100BL-22 | 10 | 11.55 |
| 2*12 | WB100BL-24 | 11 | 12.55 |
| 2*15 | WB100BL-30 | 14 | 15.55 |
| 2*20 | WB100BL-40 | 19 | 20.55 |
| - | - | - | - |
| 2*25 | WB100BL-50 | 24 | 25.55 |

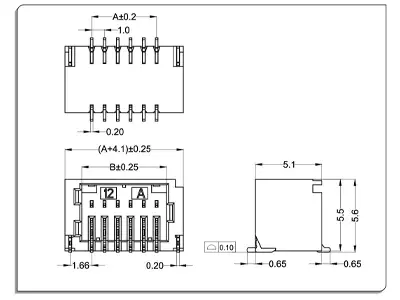

Material and Finish :
Housing:LCP UL94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;
Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2*3 | WB100BW-06 | 2 | 3.5 |
| 2*4 | WB100BW-08 | 3 | 4.5 |
| 2*5 | WB100BW-10 | 4 | 5.5 |
| 2*6 | WB100BW-12 | 5 | 6.5 |
| 2*7 | WB100BW-14 | 6 | 7.5 |
| 2*8 | WB100BW-16 | 7 | 8.5 |
| 2*9 | WB100BW-18 | 8 | 9.5 |
| 2*10 | WB100BW-20 | 9 | 10.5 |
| 2*11 | WB100BW-22 | 10 | 11.5 |
| 2*12 | WB100BW-24 | 11 | 12.5 |
| 2*15 | WB100BW-30 | 14 | 15.5 |
| - | - | - | - |
| 2*25 | WB100BW-50 | 24 | 25.5 |

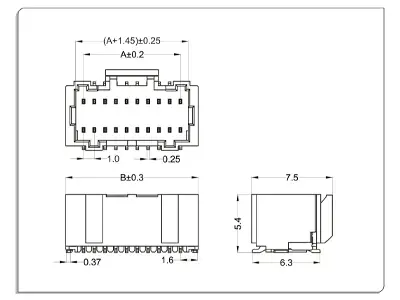

1.0-B Type Double Row 3 generation
Wafer
Material and Finish :
Housing:LCP UL94V-0 & Terminal:phosphor bronze & Fitting:Brass;
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM A |
| 2*10 | WB100BL-20 | 9 | 12.3 |
| 2*12 | WB100BL-24 | 11 | 14.3 |
| 2*15 | WB100BL-30 | 14 | 17.3 |
| 2*18 | WB100BL-36 | 17 | 20.3 |
| 2*20 | WB100BL-40 | 19 | 22.3 |
| 2*25 | WB100BL-50 | 24 | 27.3 |
