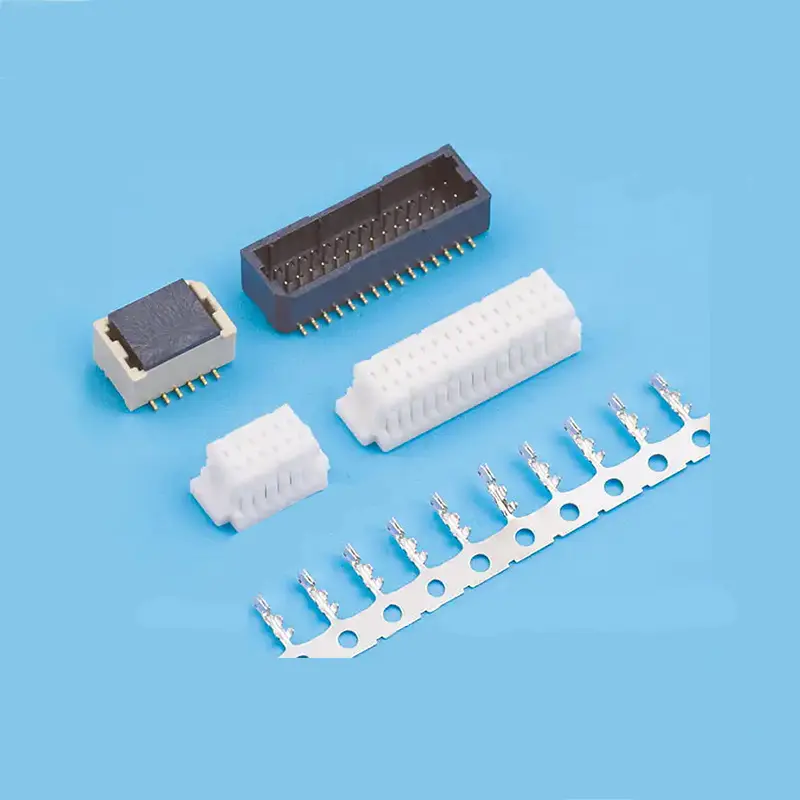

1.0-B Type Double Row(SHD)/Row 4 generation Wire-to-Board Strip Connector

Specifications

Model	Diagram	Specification
1.0-B Type Double Row(SHD) Wire-to-Board Strip Connector		1、Current rating: 1A AC/DC 2、Voltage rating(max): 50V, AC/DC 3、Working Temperature: -25°C~+85°C, (Including temperature rise in applying electrical current) 4、Contact resistance:Initial value ≤20mΩ After environmental testing≤40mΩ 5、Insulation resistance: ≥100MΩ 6、Withstand voltage: 500VAC(rms) 7、Applicable wire: AWG #32 to #28 8、Applicable PCB board thickness: 1.6mm to 2.0mm
	CKT: 2*4Pin to 2*30Pin

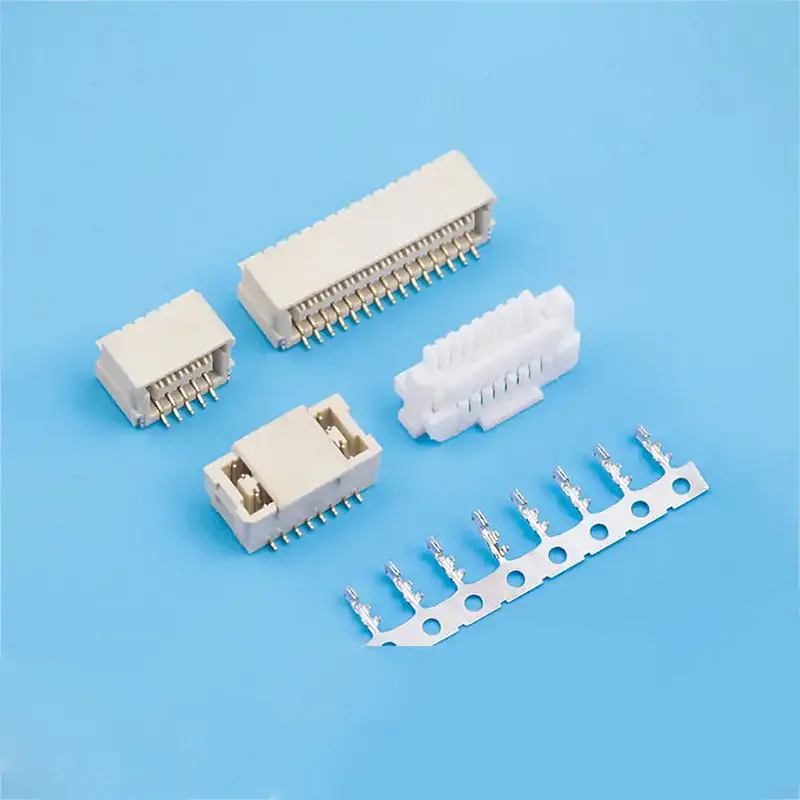

1.0-B Type Double Row 4 generation Wire-to-Board Connector
	CKT: 2*4Pin to 2*25Pin

Mounting Measurement

	Straight Angle	Right Angle
1.0-B Type Double Row(SHD) Wire-to-Board Strip Connector
1.0-B Type Double Row 4 generation Wire-to-Board Connector

Product Parameter

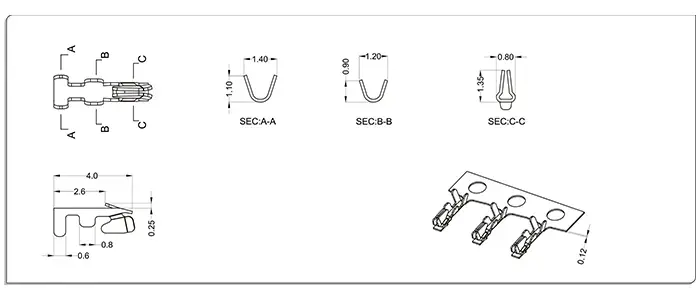

1.0-B Type Double Row(SHD)

Terminal: T=0.12mm

Part No.	Wire Range	Insulation O.D	Material	Finish
WB100B0- T0	AWG#32~ #28	0.8mm MAX	phosphor bronze	Tin & Gold-plated

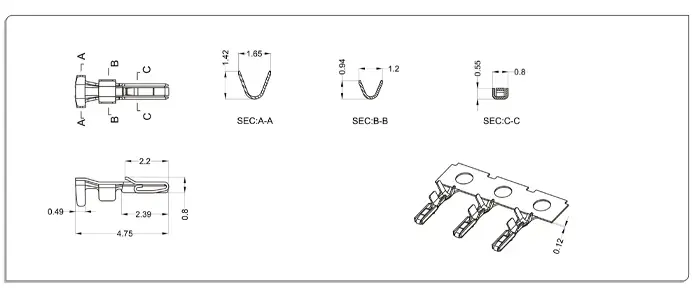

1.0-B Type Double Row 4 generation

Terminal: T=0.12mm

Part No.	Wire Range	Insulation O.D	Material	Finish
WB100B0- T0	AWG#32~ #28	0.6mm MAX	phosphor bronze	Tin & Gold-plated

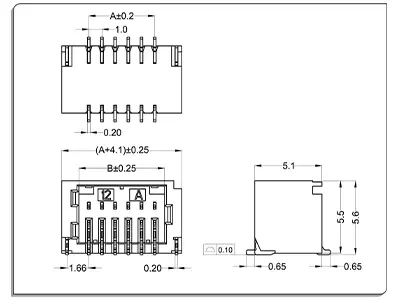

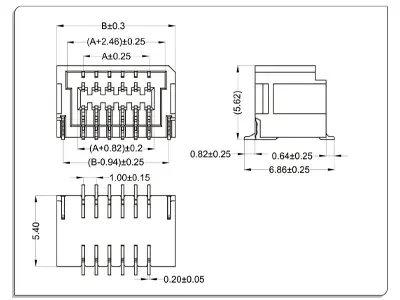

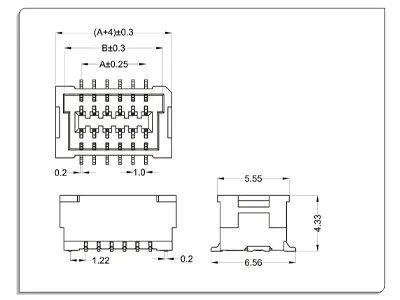

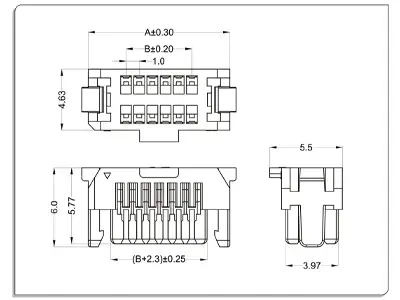

Product description

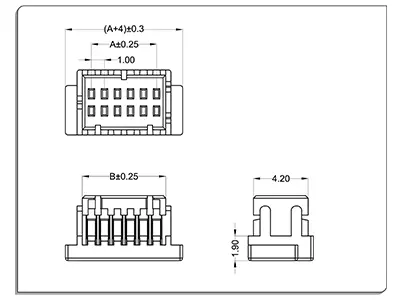

1.0-B Type Double Row(SHD)

Housing

Material: Nylon 66 UL 94V-0

CKT	Part No	DIM A	DIM B
2*4	WB100B0-08	3	4.4
2*5	WB100B0-10	4	5.4
2*6	WB100B0-12	5	6.4
2*7	WB100B0-14	6	7.4
2*8	WB100B0-16	7	8.4
2*9	WB100B0-18	8	9.4
2*10	WB100B0-20	9	10.4
2*11	WB100B0-22	10	11.4
2*12	WB100B0-24	11	12.4
2*15	WB100B0-30	14	15.4
2*20	WB100B0-40	19	20.4
-	-	-	-
2*30	WB100B0-60	29	30.4

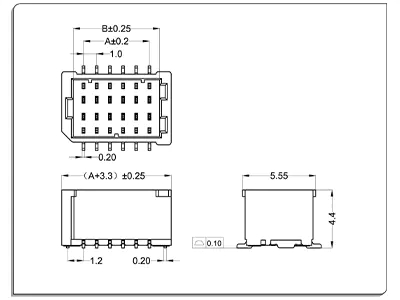

Wafer

Material and Finish :

Housing:PA6T UL 94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;

Finish: Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
2*4	WB100BL-08	3	4.55
2*5	WB100BL-10	4	5.55
2*6	WB100BL-12	5	6.55
2*7	WB100BL-14	6	7.55
2*8	WB100BL-16	7	8.55
2*9	WB100BL-18	8	9.55
2*10	WB100BL-20	9	10.55
2*11	WB100BL-22	10	11.55
2*12	WB100BL-24	11	12.55
2*15	WB100BL-30	14	15.55
2*20	WB100BL-40	19	20.55
-	-	-	-
2*30	WB100BL-60	29	30.55

Material and Finish :

Housing:LCP UL94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;

Finish: Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
2*4	WB100BW-08	3	4.5
2*5	WB100BW-10	4	5.5
2*6	WB100BW-12	5	6.5
2*7	WB100BW-14	6	7.5
2*8	WB100BW-16	7	8.5
2*9	WB100BW-18	8	9.5
2*10	WB100BW-20	9	10.5
2*11	WB100BW-22	10	11.5
2*12	WB100BW-24	11	12.5
2*15	WB100BW-30	14	15.5
2*20	WB100BW-40	19	20.5
-	-	-	-
2*30	WB100BW-60	29	30.5

1.0-B Type Double Row 4 generation

Housing

Material: Nylon 66 UL 94V-0

CKT	Part No	DIM A	DIM B
2*4	WB100B0-08	8.75	3
2*5	WB100B0-10	9.75	4
2*6	WB100B0-12	10.75	5
2*7	WB100B0-14	11.75	6
2*8	WB100B0-16	12.75	7
2*9	WB100B0-18	13.75	8
2*10	WB100B0-20	14.75	9
2*11	WB100B0-22	15.75	10
2*12	WB100B0-24	16.75	11
2*14	WB100B0-28	18.75	13
2*15	WB100B0-30	19.75	14
-	-	-	-
2*25	WB100B0-50	29.75	25

Wafer

Material and Finish :

Housing:LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;

Finish:Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
2*4	WB100BL-08	3	5.6
2*5	WB100BL-10	4	6.6
2*6	WB100BL-12	5	7.6
2*7	WB100BL-14	6	8.6
2*8	WB100BL-16	7	9.6
2*9	WB100BL-18	8	10.6
2*10	WB100BL-20	9	11.6
2*11	WB100BL-22	10	12.6
2*12	WB100BL-24	11	13.6
2*13	WB100BL-26	12	14.6
2*14	WB100BL-28	13	15.6
-	-	-	-
2*25	WB100BL-50	24	26.6

Material and Finish :

Housing:LCP UL .94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;

Finish:Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
2*4	WB100BW-08	3	7
2*5	WB100BW-10	4	8
2*6	WB100BW-12	5	9
2*7	WB100BW-14	6	10
2*8	WB100BW-16	7	11
2*9	WB100BW-18	8	12
2*10	WB100BW-20	9	13
2*11	WB100BW-22	10	14
2*12	WB100BW-24	11	15
2*13	WB100BW-26	12	16
2*14	WB100BW-28	13	17
-	-	-	-
2*20	WB100BW-50	19	23
