1.0-E Type(SH)/1.0-B Type(NH) Wire-to-Board Strip Connector
Specifications
| Model | Diagram | Specification |

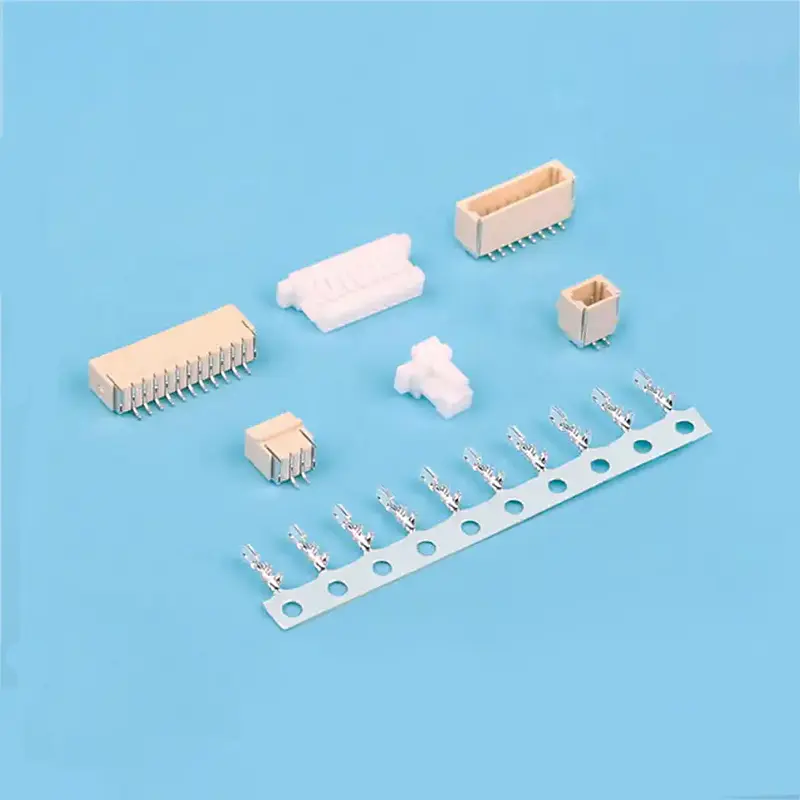

| 1.0-E Type(SH) Wire-to-Board Strip Connector |  |
1、Current rating: 1A AC/DC 2、Voltage rating(max): 50V, AC/DC 3、Working Temperature: -25°C~+85°C, (Including temperature rise in applying electrical current) 4、Contact resistance: Initial value ≤20mΩ After environmental testing≤30mΩ 5、Insulation resistance: ≥100MΩ 6、Withstand voltage: 500VAC(rms) 7、Applicable wire: AWG #32 to #28 8、Applicable PCB board thickness: 1.6mm to 2.0mm |
| CKT: 2Pin to 26Pin | ||

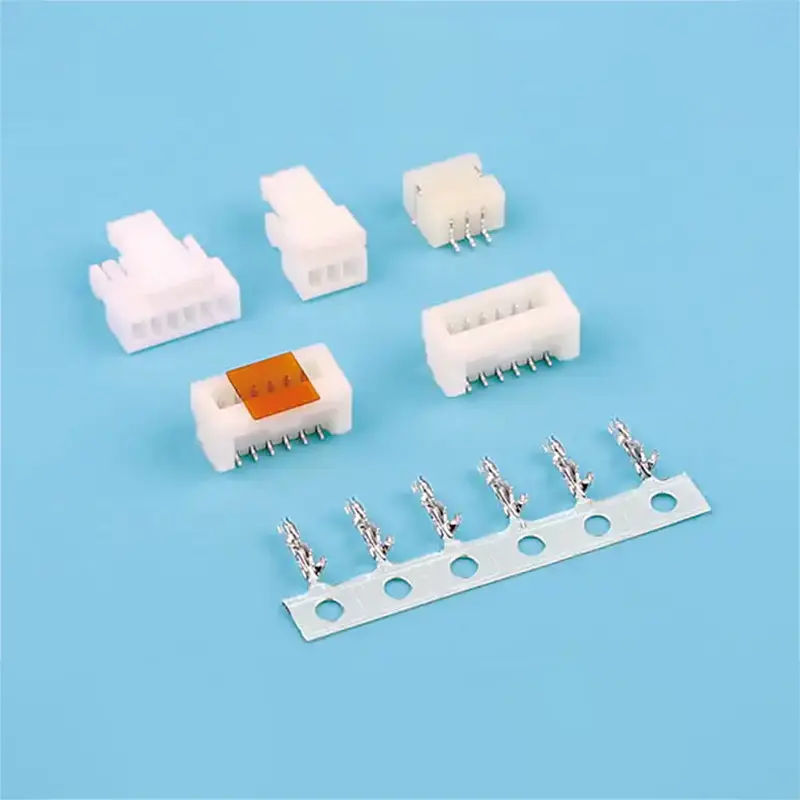

| 1.0-B Type(NH) Wire-to-Board Strip Connector |  |
|
| CKT: 2Pin to 20Pin |
Mounting Measurement
| Straight Angle | Right Angle | |
| 1.0-E Type(SH) Wire-to-Board Strip Connector |  |
 |
| 1.0-B Type(NH) Wire-to-Board Strip Connector |  |
 |
Product Parameter

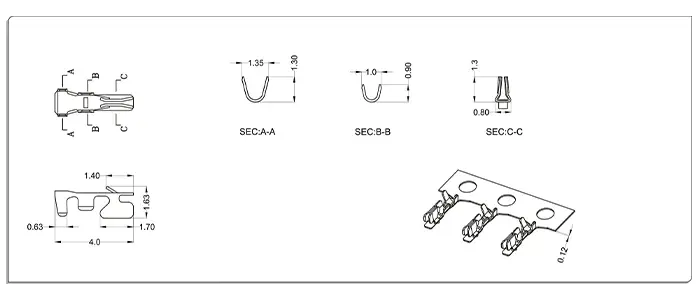

Terminal: T=0.12mm
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| WT100E0- T0 | AWG#32~ #28 | 0.8mm MAX | phosphor bronze | Tin & Gold-plated |

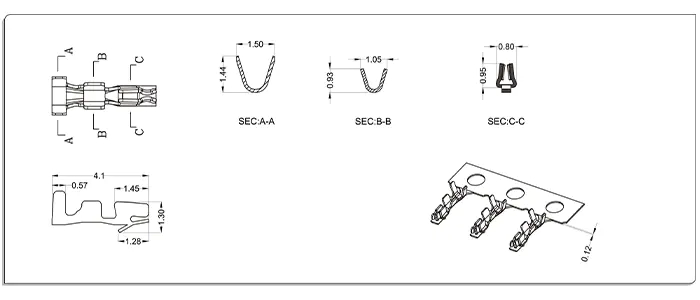

Terminal: T=0.12mm
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| WT100B0- T0 | AWG#32~ #28 | 0.8mm MAX | phosphor bronze | Tin & Gold-plated |
Product description
1.0-E Type(SH)

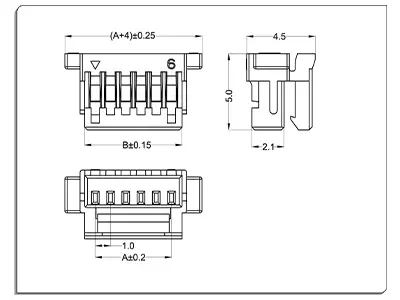

Housing
Material: Nylon 66 UL94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | WT100E0-02 | 1 | 2.4 |
| 3 | WT100E0-03 | 2 | 3.4 |
| 4 | WT100E0-04 | 3 | 4.4 |
| 5 | WT100E0-05 | 4 | 5.4 |
| 6 | WT100E0-06 | 5 | 6.4 |
| 7 | WT100E0-07 | 6 | 7.4 |
| 8 | WT100E0-08 | 7 | 8.4 |
| 9 | WT100E0-09 | 8 | 9.4 |
| 10 | WT100E0-10 | 9 | 10.4 |
| 11 | WT100E0-11 | 10 | 11.4 |
| 12 | WT100E0-12 | 11 | 12.4 |
| - | - | - | - |
| 20 | WT100E0-20 | 19 | 20.4 |

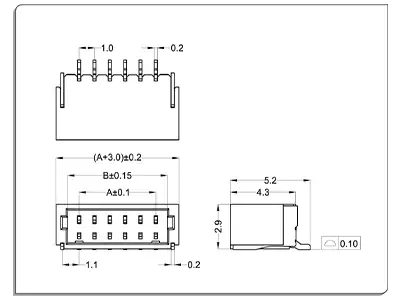

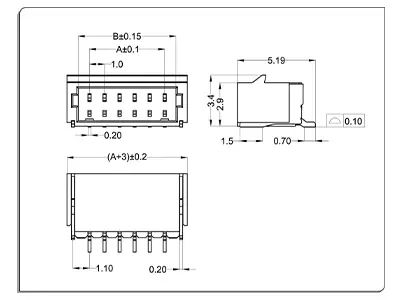

Wafer
Material and Finish :
Housing:LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;
Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2 | WT100EL-02 | 1 | 2.5 |
| 3 | WT100EL-03 | 2 | 3.5 |
| 4 | WT100EL-04 | 3 | 4.5 |
| 5 | WT100EL-05 | 4 | 5.5 |
| 6 | WT100EL-06 | 5 | 6.5 |
| 7 | WT100EL-07 | 6 | 7.5 |
| 8 | WT100EL-08 | 7 | 8.5 |
| 9 | WT100EL-09 | 8 | 9.5 |
| 10 | WT100EL-10 | 9 | 10.5 |
| 11 | WT100EL-11 | 10 | 11.5 |
| 12 | WT100EL-12 | 11 | 12.5 |
| - | - | - | - |
| 26 | WT100EL-26 | 25 | 26.5 |

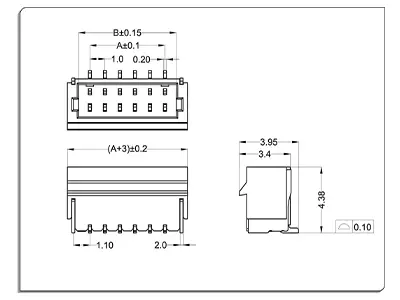

Material and Finish :
Housing:LCP UL94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2 | WT100EW-02 | 1 | 2.5 |
| 3 | WT100EW-03 | 2 | 3.5 |
| 4 | WT100EW-04 | 3 | 4.5 |
| 5 | WT100EW-05 | 4 | 5.5 |
| 6 | WT100EW-06 | 5 | 6.5 |
| 7 | WT100EW-07 | 6 | 7.5 |
| 8 | WT100EW-08 | 7 | 8.5 |
| 9 | WT100EW-09 | 8 | 9.5 |
| 10 | WT100EW-10 | 9 | 10.5 |
| 11 | WT100EW-11 | 10 | 11.5 |
| 12 | WT100EW-12 | 11 | 12.5 |
| - | - | - | - |
| 26 | WT100EW-26 | 25 | 26.5 |
Housing
Material: Nylon 66 UL94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | WT100E0-02 | 1 | 2.4 |
| 3 | WT100E0-03 | 2 | 3.4 |
| 4 | WT100E0-04 | 3 | 4.4 |
| 5 | WT100E0-05 | 4 | 5.4 |
| 6 | WT100E0-06 | 5 | 6.4 |
| 7 | WT100E0-07 | 6 | 7.4 |
| 8 | WT100E0-08 | 7 | 8.4 |
| 9 | WT100E0-09 | 8 | 9.4 |
| 10 | WT100E0-10 | 9 | 10.4 |
| 11 | WT100E0-11 | 10 | 11.4 |
| 12 | WT100E0-12 | 11 | 12.4 |
| - | - | - | - |
| 20 | WT100E0-20 | 19 | 20.4 |
Wafer
Material and Finish :
Housing:LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2 | WT100EL-02 | 1 | 2.5 |
| 3 | WT100EL-03 | 2 | 3.5 |
| 4 | WT100EL-04 | 3 | 4.5 |
| 5 | WT100EL-05 | 4 | 5.5 |
| 6 | WT100EL-06 | 5 | 6.5 |
| 7 | WT100EL-07 | 6 | 7.5 |
| 8 | WT100EL-08 | 7 | 8.5 |
| 9 | WT100EL-09 | 8 | 9.5 |
| 10 | WT100EL-10 | 9 | 10.5 |
| 11 | WT100EL-11 | 10 | 11.5 |
| 12 | WT100EL-12 | 11 | 12.5 |
| - | - | - | - |
| 26 | WT100EL-26 | 25 | 26.5 |
Material and Finish :
Housing:LCP UL94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;
Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2 | WT100EW-02 | 1 | 2.5 |
| 3 | WT100EW-03 | 2 | 3.5 |
| 4 | WT100EW-04 | 3 | 4.5 |
| 5 | WT100EW-05 | 4 | 5.5 |
| 6 | WT100EW-06 | 5 | 6.5 |
| 7 | WT100EW-07 | 6 | 7.5 |
| 8 | WT100EW-08 | 7 | 8.5 |
| 9 | WT100EW-09 | 8 | 9.5 |
| 10 | WT100EW-10 | 9 | 10.5 |
| 11 | WT100EW-11 | 10 | 11.5 |
| 12 | WT100EW-12 | 11 | 12.5 |
| - | - | - | - |
| 26 | WT100EW-26 | 25 | 26.5 |
1.0-B Type(NH)

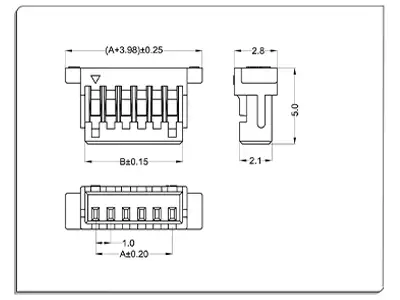

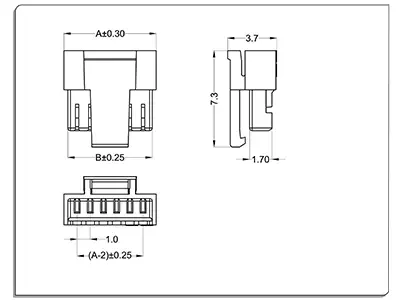

Housing
Material: Nylon 66 UL 94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | WT100B0-02 | 3 | 2.4 |
| 3 | WT100B0-03 | 4 | 3.4 |
| 4 | WT100B0-04 | 5 | 4.4 |
| 5 | WT100B0-05 | 6 | 5.4 |
| 6 | WT100B0-06 | 7 | 6.4 |
| 7 | WT100B0-07 | 8 | 7.4 |
| 8 | WT100B0-08 | 9 | 8.4 |
| 9 | WT100B0-09 | 10 | 9.4 |
| 10 | WT100B0-10 | 11 | 10.4 |
| 11 | WT100B0-11 | 12 | 11.4 |
| 12 | WT100B0-12 | 13 | 12.4 |
| - | - | - | - |
| 16 | WT100B0-16 | 17 | 16.4 |

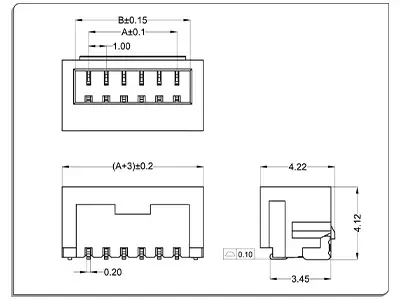

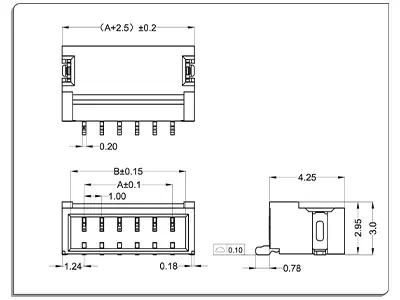

Wafer
Material and Finish :
Housing:PA6T UL 94V-0 & Terminal:phosphor bronze & Fitting:Brass;
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 6 | WT100BL-06 | 5 | 6.5 |

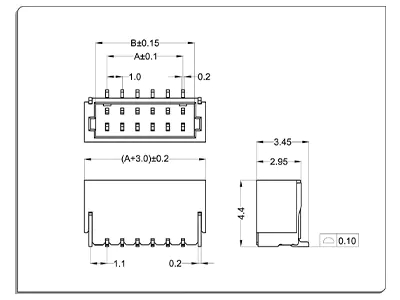

Material and Finish :
Housing:PA6T UL 94V-0 & Terminal:phosphor bronze & Fitting:Brass;
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2 | WT100BW-02 | 1 | 2.5 |
| 3 | WT100BW-03 | 2 | 3.5 |
| 4 | WT100BW-04 | 3 | 4.5 |
| 5 | WT100BW-05 | 4 | 5.5 |
| 6 | WT100BW-06 | 5 | 6.5 |
| 7 | WT100BW-07 | 6 | 7.5 |
| 8 | WT100BW-08 | 7 | 8.5 |
| 9 | WT100BW-09 | 8 | 9.5 |
| 10 | WT100BW-10 | 9 | 10.5 |
| 11 | WT100BW-11 | 10 | 11.5 |
| 12 | WT100BW-12 | 11 | 12.5 |
| - | - | - | - |
| 20 | WT100BW-26 | 19 | 20.5 |
