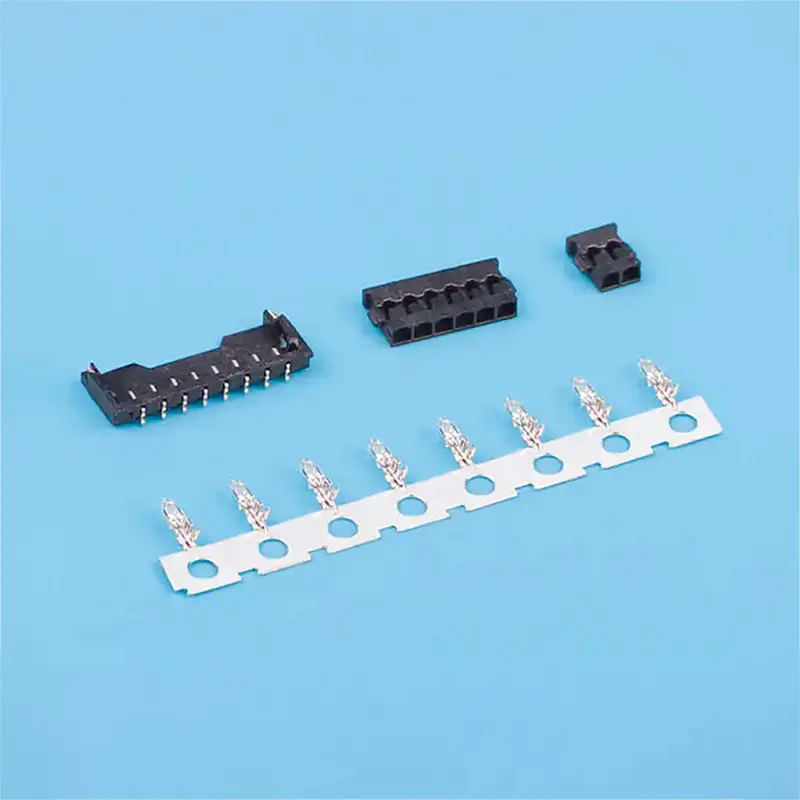

1.1.2-B Type Battery Connector Holder.jpg

1.2-B Type Battery Connector Holder

Battery products have become an indispensable power source in modern life, serving a wide range of applications from household appliances and communication equipment to medical devices and military systems. To ensure reliable connections in these applications, our universal 1.2mm pitch battery connector holder features an SMT PCB mount design with durable plastic housing and multi-pin configuration, providing stable and secure electrical connections for various battery-powered devices.

    Contact us
    Product Details

    Specifications

    Diagram Specification
    1、CKT: 2Pin to 12Pin
    2、Current rating: 1.5A AC/DC
    3、Voltage rating(max): 50V, AC/DC
    4、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current)
    5、Contact resistance:value≤20mΩ
    6、Insulation resistance:≥100MΩ
    7、Withstand voltage: 500VAC(rms)
    8、Applicable wire: AWG #30 to #28
    9、Applicable PCB board thickness: 1.6mm to 2.0mm

    Mounting Measurement

    Right Angle P.C.B Layout

    Product Parameter

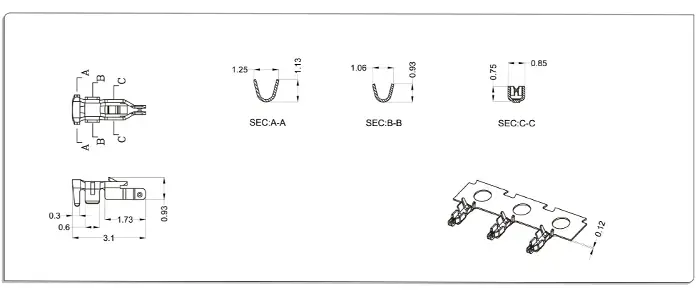

    Terminal: T=0.12mm


    Part No. Wire Range Insulation O.D Material Finish
    DCT120B0- T0 AWG#30~ #28 0.7mm MAX phosphor bronze Tin & Gold-plated

    Product description

    Housing

    Material: LCP UL 94V-0

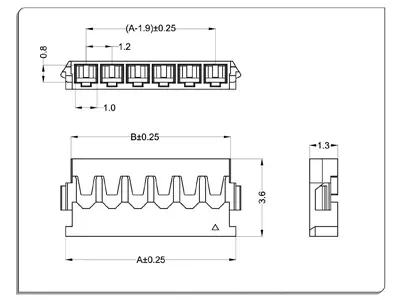

    5.Product description.jpg

    CKT Part No DIM A DIM B
    2 DCT120B0-02 3.1 2.6
    3 DCT120B0-03 4.3 3.8
    4 DCT120B0-04 5.5 5
    5 DCT120B0-05 6.7 6.2
    6 DCT120B0-06 7.9 7.4
    7 DCT120B0-07 9.1 8.6
    8 DCT120B0-08 10.3 9.8
    9 DCT120B0-09 11.5 11
    10 DCT120B0-10 12.7 12.2
    11 DCT120B0-11 13.9 13.4
    12 DCT120B0-12 15.1 14.6

    Wafer

    Material and Finish:

    Housing:LCP UL 94V-0 & Terminal:Brass Fitting:Brass; Finish: Tin-plated & Gold-plated

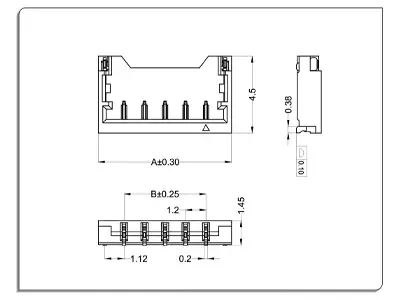

    5.Product description.1.jpg

    CKT Part No DIM A DIM B
    2 DCT120BW-02 4.2 1.2
    3 DCT120BW-03 5.4 2.4
    4 DCT120BW-04 6.6 3.6
    5 DCT120BW-05 7.8 4.8
    6 DCT120BW-06 9 6
    7 DCT120BW-07 10.2 7.2
    8 DCT120BW-08 11.4 8.4
    9 DCT120BW-09 12.6 9.6
    10 DCT120BW-10 13.8 10.8
    11 DCT120BW-11 15 12
    12 DCT120BW-12 16.2 13.2
