1.5mm Pitch
0102030405
1.5-K/B Type(MX) Wire-to-Board Strip Connector
Specifications
| model | Diagram | Specification |

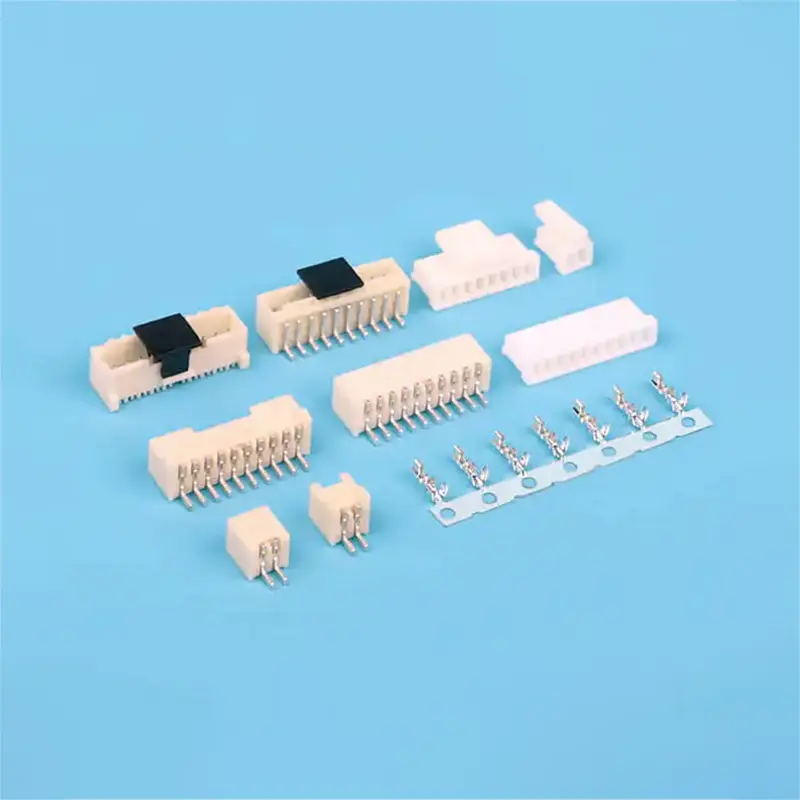

| 1.5-K Type(MX) Wire-to-Board Strip Connector |  |
1、CKT: 2Pin to 16Pin 2、Current rating: 3A AC/DC 3、Voltage rating(max): 350V， AC/IDC 4、Working Temperature: -25°C~+85°C, (Including temperature rise in applying electrical current) 5、Contact resistance: Initial value s20mΩ After environmental testing≤30mΩ 6、Insulation resistance: 21000MΩ 7、Withstand voltage: 500VAC(rms) 8、Applicable wire: AWG #28 to #24 9、Applicable PCB board thickness: 1.6mm to 2.0mm |

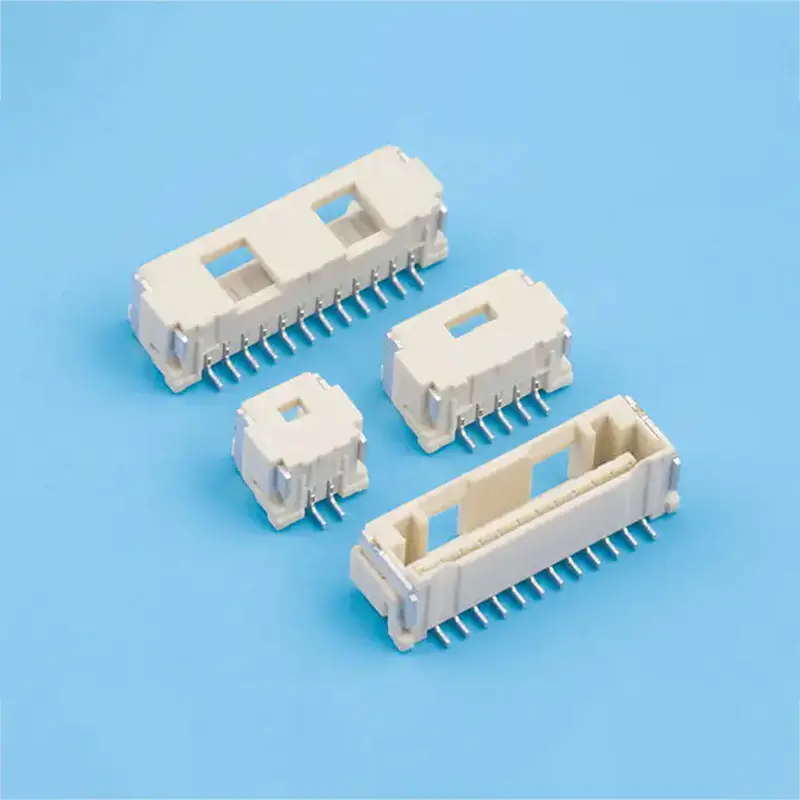

| 1.5-B Type(MX) Wire-to-Board Strip Connector |  |
1、CKT: 2Pin to 15Pin 2、Current rating: 2A AC/DC 3、Voltage rating(max): 100V, AC/DC 4、Working Temperature: -25°C~+85°C, (Including temperature rise in applying electrical current) 5、Contact resistance:value≤40mΩ 6、Insulation resistance: 2500MΩ 7、Withstand voltage:500VAC(rms) 8、Applicable PCB board thickness: 1.6mm to 2.0mm |
Mounting Measurement
| Straight Angle | Right Angle | |
| 1.5-K Type(MX) Wire-to-Board Strip Connector |  |
 |
| 1.5-B Type(MX) Wire-to-Board Strip Connector |  |
 |

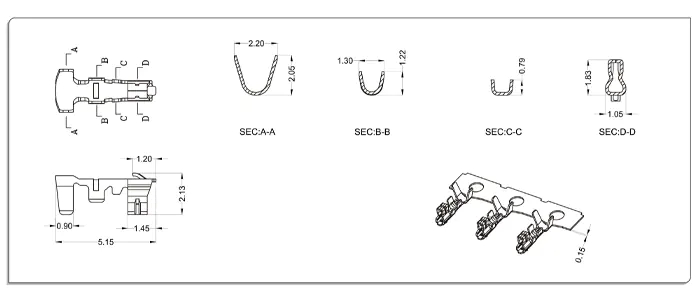

Product Parameter
1.5-K Type(MX)
Terminal: T=0.15mm
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| WT150K0- T0 | AWG#28~ #24 | 0.7~1.10mm MAX | phosphor bronze | Tin & Gold-plated |
Product description

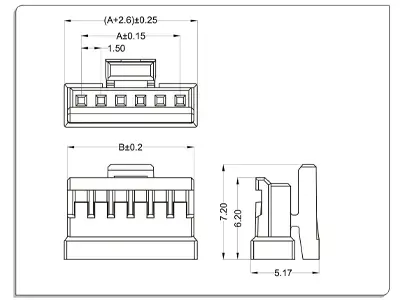

Housing
Material: Nylon 66 UL 94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | WT150K0-02 | 1.5 | 3.6 |
| 3 | WT150K0-03 | 3 | 5.1 |
| 4 | WT150K0-04 | 4.5 | 6.6 |
| 5 | WT150K0-05 | 6 | 8.1 |
| 6 | WT150K0-06 | 7.5 | 9.6 |
| 7 | WT150K0-07 | 9 | 11.1 |
| 8 | WT150K0-08 | 10.5 | 12.6 |
| 9 | WT150K0-09 | 12 | 14.1 |
| 10 | WT150K0-10 | 13.5 | 15.6 |
| 11 | WT150K0-11 | 15 | 17.1 |
| 12 | WT150K0-12 | 16.5 | 18.6 |
| - | - | - | - |
| 16 | WT150K0-16 | 22.5 | 24.6 |

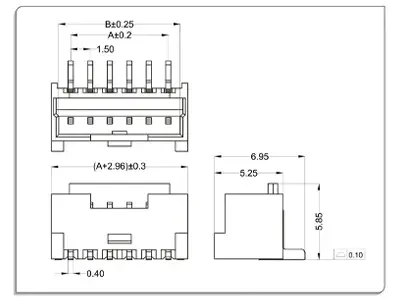

Wafer
Material and Finish:
Housing:PA6T UL 94V-0 & Terminal:Brass Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2 | WT150KL-02 | 1.5 | 3.35 |
| 3 | WT150KL-03 | 3 | 4.85 |
| 4 | WT150KL-04 | 4.5 | 6.35 |
| 5 | WT150KL-05 | 6 | 7.85 |
| 6 | WT150KL-06 | 7.5 | 9.35 |
| 7 | WT150KL-07 | 9 | 10.85 |
| 8 | WT150KL-08 | 10.5 | 12.35 |
| 9 | WT150KL-09 | 12 | 13.85 |
| 10 | WT150KL-10 | 13.5 | 15.35 |
| 11 | WT150KL-11 | 15 | 16.85 |
| 12 | WT150KL-12 | 16.5 | 18.35 |
| - | - | - | - |
| 15 | WT150KL-15 | 21 | 22.85 |

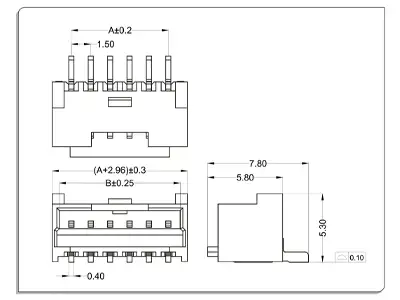

Material and Finish:
Housing:PA6T UL 94V-0 & Terminal:Brass Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2 | WT150KW-02 | 1.5 | 3.35 |
| 3 | WT150KW-03 | 3 | 4.85 |
| 4 | WT150KW-04 | 4.5 | 6.35 |
| 5 | WT150KW-05 | 6 | 7.85 |
| 6 | WT150KW-06 | 7.5 | 9.35 |
| 7 | WT150KW-07 | 9 | 10.85 |
| 8 | WT150KW-08 | 10.5 | 12.35 |
| 9 | WT150KW-09 | 12 | 13.85 |
| 10 | WT150KW-10 | 13.5 | 15.35 |
| 11 | WT150KW-11 | 15 | 16.85 |
| 12 | WT150KW-12 | 16.5 | 18.35 |
| - | - | - | - |
| 15 | WT150KW-15 | 21 | 22.85 |

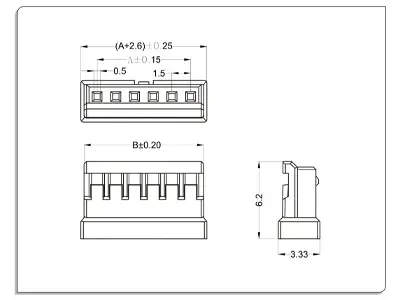

Housing
Material: Nylon 66 UL 94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | WT150K0-02 | 1.5 | 3.6 |
| 3 | WT150K0-03 | 3 | 5.1 |
| 4 | WT150K0-04 | 4.5 | 6.6 |
| 5 | WT150K0-05 | 6 | 8.1 |
| 6 | WT150K0-06 | 7.5 | 9.6 |
| 7 | WT150K0-07 | 9 | 11.1 |
| 8 | WT150K0-08 | 10.5 | 12.6 |
| 9 | WT150K0-09 | 12 | 14.1 |
| 10 | WT150K0-10 | 13.5 | 15.6 |
| 11 | WT150K0-11 | 15 | 17.1 |
| 12 | WT150K0-12 | 16.5 | 18.6 |
| - | - | - | - |
| 16 | WT150K0-16 | 22.5 | 24.6 |

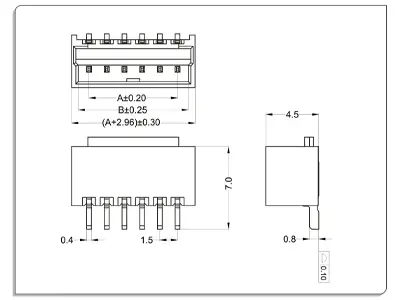

Wafer
Material and Finish:
Housing:PA6T UL 94V-0 & Terminal:Brass Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2 | WT150KL-02 | 1.5 | 3.35 |
| 3 | WT150KL-03 | 3 | 4.85 |
| 4 | WT150KL-04 | 4.5 | 6.35 |
| 5 | WT150KL-05 | 6 | 7.85 |
| 6 | WT150KL-06 | 7.5 | 9.35 |
| 7 | WT150KL-07 | 9 | 10.85 |
| 8 | WT150KL-08 | 10.5 | 12.35 |
| 9 | WT150KL-09 | 12 | 13.85 |
| 10 | WT150KL-10 | 13.5 | 15.35 |
| 11 | WT150KL-11 | 15 | 16.85 |
| 12 | WT150KL-12 | 16.5 | 18.35 |
| - | - | - | - |
| 15 | WT150KL-15 | 21 | 22.85 |
Material and Finish:
Housing:PA6T UL 94V-0 & Terminal:Brass Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2 | WT150KW-02 | 1.5 | 3.35 |
| 3 | WT150KW-03 | 3 | 4.85 |
| 4 | WT150KW-04 | 4.5 | 6.35 |
| 5 | WT150KW-05 | 6 | 7.85 |
| 6 | WT150KW-06 | 7.5 | 9.35 |
| 7 | WT150KW-07 | 9 | 10.85 |
| 8 | WT150KW-08 | 10.5 | 12.35 |
| 9 | WT150KW-09 | 12 | 13.85 |
| 10 | WT150KW-10 | 13.5 | 15.35 |
| 11 | WT150KW-11 | 15 | 16.85 |
| 12 | WT150KW-12 | 16.5 | 18.35 |
| - | - | - | - |
| 15 | WT150KW-15 | 21 | 22.85 |
1.5-B Type(MX)

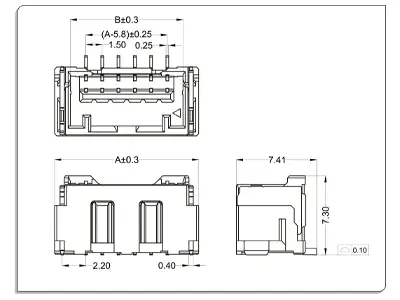

Wafer
Material and Finish:
Housing:PA9T UL 94V-0 & Terminal:phosphor bronze & Fitting:Brass; Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2 | WT150BL-02 | 7.3 | 4.4 |
| 3 | WT150BL-03 | 8.8 | 5.9 |
| 4 | WT150BL-04 | 10.3 | 7.4 |
| 5 | WT150BL-05 | 11.8 | 8.9 |
| 6 | WT150BL-06 | 13.3 | 10.4 |
| 7 | WT150BL-07 | 14.8 | 11.9 |
| 8 | WT150BL-08 | 16.3 | 13.4 |
| 9 | WT150BL-09 | 17.8 | 14.9 |
| 10 | WT150BL-10 | 19.3 | 16.4 |
| 11 | WT150BL-11 | 20.8 | 17.9 |
| 12 | WT150BL-12 | 22.3 | 19.4 |
| - | - | - | - |
| 15 | WT150BL-15 | 26.8 | 23.9 |
Material and Finish:
Housing:PA9T UL 94V-0 & Terminal:phosphor bronze & Fitting:Brass;
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2 | WT150BW-02 | 7.3 | 4.4 |
| 3 | WT150BW-03 | 8.8 | 5.9 |
| 4 | WT150BW-04 | 10.3 | 7.4 |
| 5 | WT150BW-05 | 11.8 | 8.9 |
| 6 | WT150BW-06 | 13.3 | 10.4 |
| 7 | WT150BW-07 | 14.8 | 11.9 |
| 8 | WT150BW-08 | 16.3 | 13.4 |
| 9 | WT150BW-09 | 17.8 | 14.9 |
| 10 | WT150BW-10 | 19.3 | 16.4 |
| 11 | WT150BW-11 | 20.8 | 17.9 |
| 12 | WT150BW-12 | 22.3 | 19.4 |
| - | - | - | - |
| 15 | WT150BW-15 | 26.8 | 23.9 |
