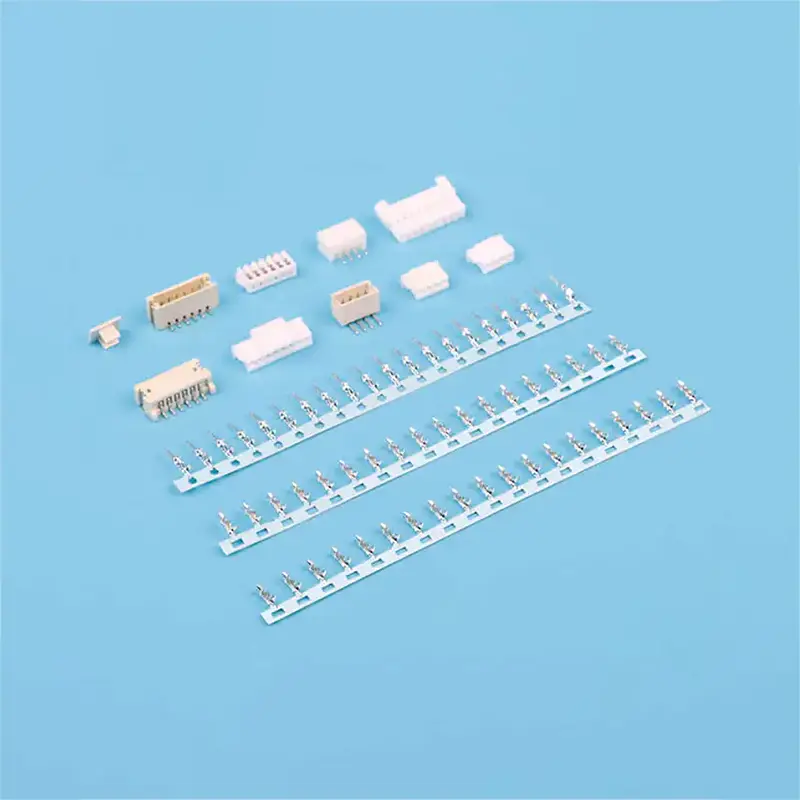

1.1.5-L Type(ZH) Wire-to-Board Strip Connector.jpg

1.5-L Type(ZH) Wire-to-Board Strip Connector

1.5mm pitch wire-to-board strip connectors, pcb circuit board plug-in, electronics assembly kit.The 1.5mm Pitch WTB board-to-board strip connector can achieve high-density connections, providing higher signal transmission rates and better electrical performance, thereby improving the overall performance of the system.

    Contact us
    Product Details

    Specifications

    Diagram Specification
      1、CKT: 2Pin to 20Pin
    2、Current rating: 1A AC/DC
    3、Voltage rating(max): 100V， AC/DC
    4、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current)
    5、Contact resistance: Initial value ≤20mΩ After environmental testing≤30mΩ
    6、Insulation resistance: ≥500MΩ
    7、Withstand voltage:500VAC(rms)
    8、Applicable wire: AWG #30 to #26
    9、Applicable PCB board thickness: 1.6mm to 2.0mm

    Mounting Measurement

    Straight Angle Right Angle

    Product Parameter

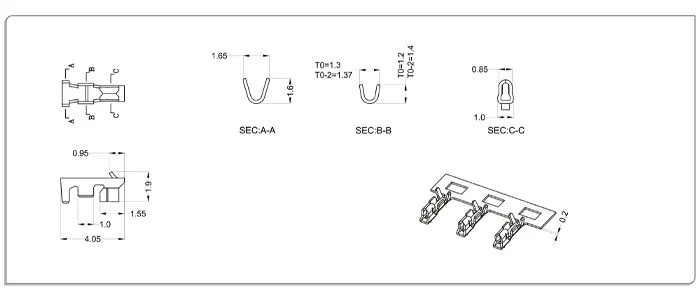

    Terminal: T=0.2mm

    3.Product Parameter.1.jpg

    Part No. Wire Range Insulation O.D Material Finish
    WT150Z0-T0 AWG#30~ #26 1.10mm MAX phosphor bronze Tin & Gold-plated
    WT150Z0-T0-2 AWG#26~ #24 1.10mm MAX phosphor bronze Tin & Gold-plated

    Product description

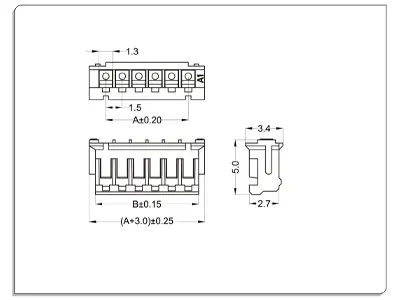

    Housing

    Material : Nylon 66 UL 94V-0

    4.Product description.1.jpg

    CKT Part No DIM A DIM B
    2 WT150Z0-02 1.5 3.4
    3 WT150Z0-03 3 4.9
    4 WT150Z0-04 4.5 6.4
    5 WT150Z0-05 6 7.9
    6 WT150Z0-06 7.5 9.4
    7 WT150Z0-07 9 10.9
    8 WT150Z0-08 10.5 12.4
    9 WT150Z0-09 12 13.9
    10 WT150Z0-10 13.5 15.4
    11 WT150Z0-11 15 16.9
    12 WT150Z0-12 16.5 18.4
    - - -
    16 WT150Z0-16 22.5 24.4

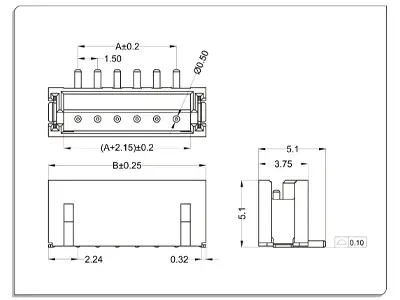

    Wafer

    Material and Finish:

    Housing:LCP UL 94V-0 & Terminal:Brass Fitting:Brass;

    Finish:Tin-plated & Gold-plated

    4.Product description.2.jpg

    CKT Part No DIM A DIM B
    2 WT150LL-02 1.5 3.4
    3 WT150LL-03 3 4.9
    4 WT150LL-04 4.5 6.4
    5 WT150LL-05 6 7.9
    6 WT150LL-06 7.5 9.4
    7 WT150LL-07 9 10.9
    8 WT150LL-08 10.5 12.4
    9 WT150LL-09 12 13.9
    10 WT150LL-10 13.5 15.4
    11 WT150LL-11 15 16.9
    12 WT150LL-12 16.5 18.4
    - - -
    20 WT150LL-20 28.5 33

    Material and Finish:

    Housing:LCP UL 94V-0 & Terminal:Brass Fitting:Brass; Finish: Tin-plated & Gold-plated

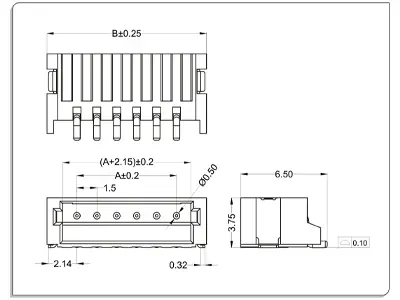

    4.Product description.3.jpg

    CKT Part No DIM A DIM B
    2 WT150LW-02 1.5 3.4
    3 WT150LW-03 3 4.9
    4 WT150LW-04 4.5 6.4
    5 WT150LW-05 6 7.9
    6 WT150LW-06 7.5 9.4
    7 WT150LW-07 9 10.9
    8 WT150LW-08 10.5 12.4
    9 WT150LW-09 12 13.9
    10 WT150LW-10 13.5 15.4
    11 WT150LW-11 15 16.9
    12 WT150LW-12 16.5 18.4
    - - -
    20 WT150LW-20 28.5 33
