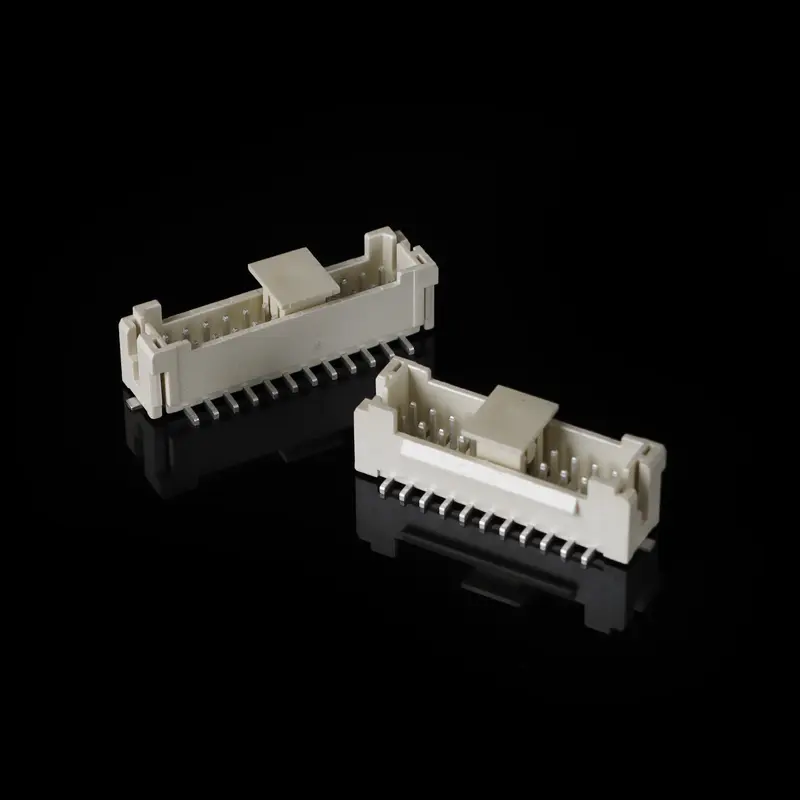

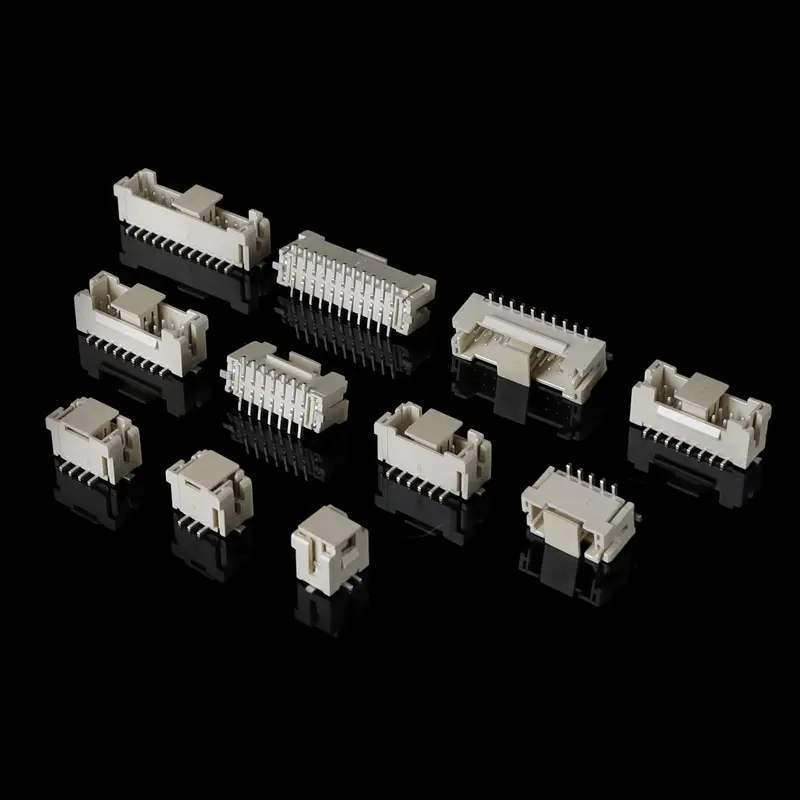

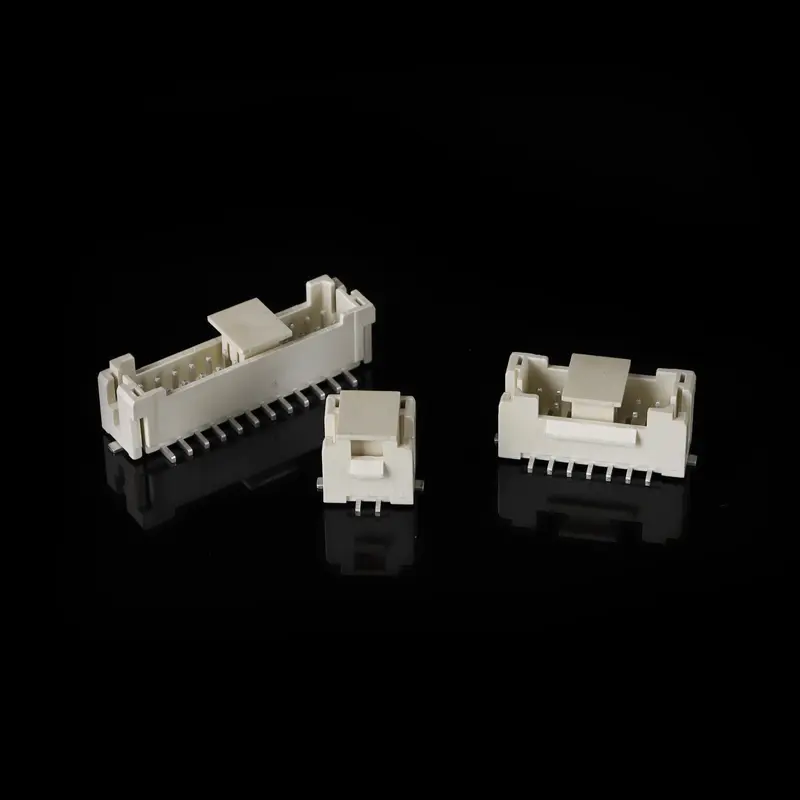

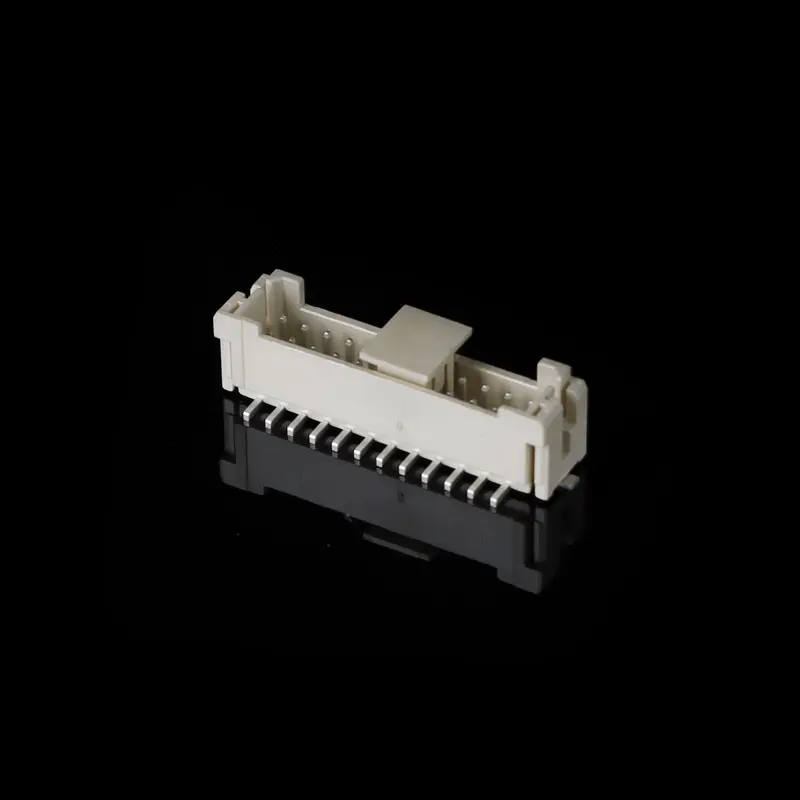

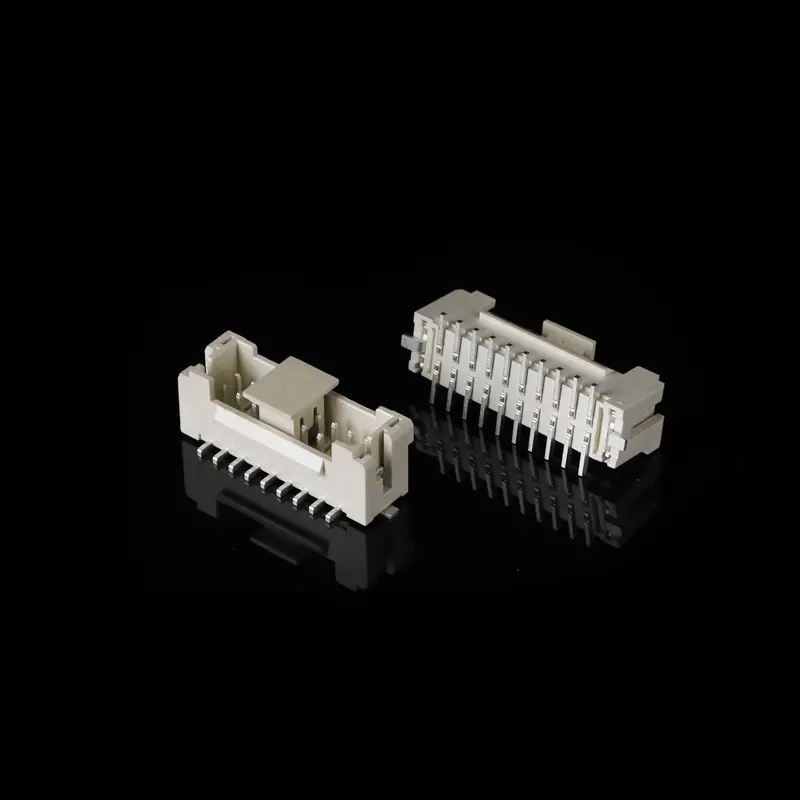

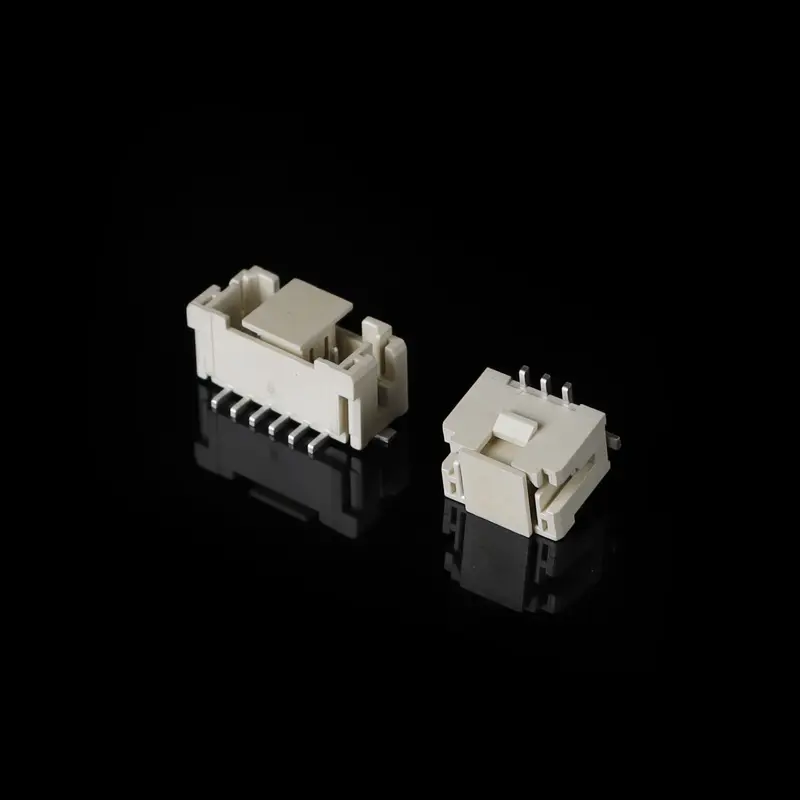

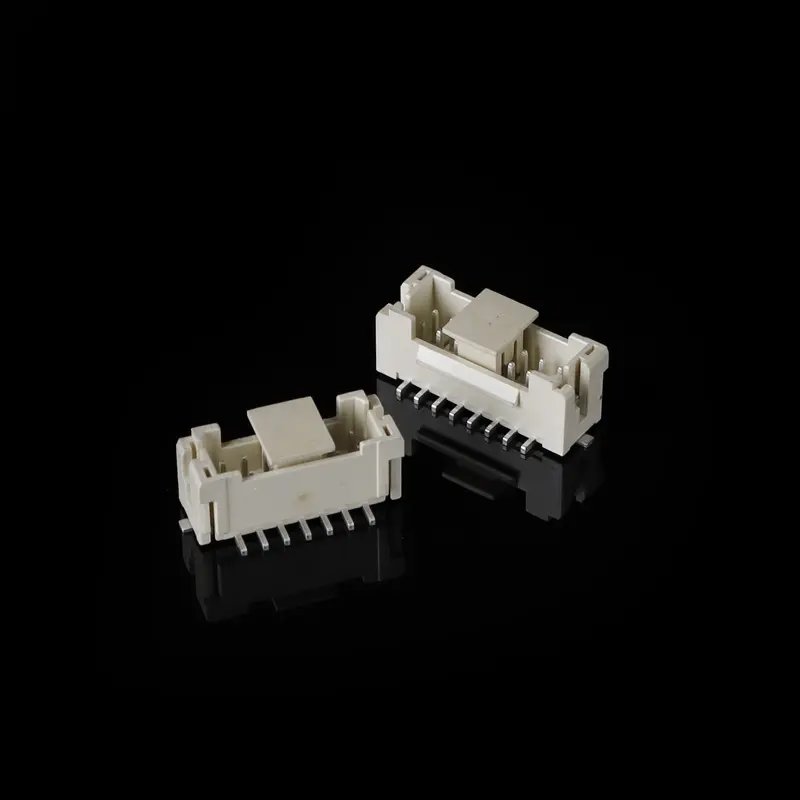

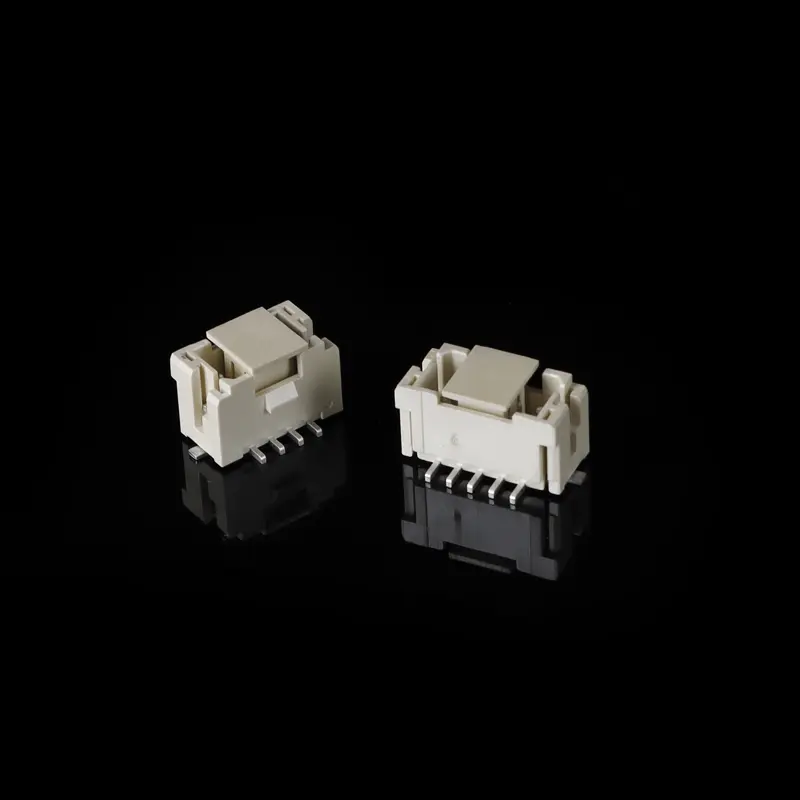

2.0mm Spacing Connector Horizontal Double Row Connector with Lock Plug-in
Advantage
1.Rich selection of connector, more than 100 experienced mould processing staff Equipment imported from Japan, Germany, Switzerland, Taiwan
2.Specializes in manufacturing connector more than 16 year as well as export the relevant component more than 8 years
3.Have long and Rich cooperation experience with Samsung, whirlpool, Midea
4.Almost get all of the certification for connector ,such as UL,SGS, MSDS, CE, ISO9001,ROHS,REACH, CQC,TUV, PAHS, PFOS, PFOA ect.
5.replace JST, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. and short delivery
6.competitive price
7.Monthly average turnover is 2million USD
8.ISO 9001:2008-certified factory equipped with automated assembly lines
9.Custom-made orders welcome here
10.Sample take up to 3 days,but can be finished with one day in urgent cases
Application
2.0mm Spacing Connector Horizontal Double Row Connector with Lock Plug-in has become an ideal choice for the internal interconnection of many demanding electronic devices due to its excellent reliability, complete international certifications (UL, SGS, CE, ROHS, REACH, ISO9001, etc.) and stable locking mechanism. With excellent electrical performance and physical strength, it is widely used in the field of household appliances, such as the connection of internal circuit boards of washing machines, refrigerators, air conditioners, etc., and has won the long-term trust of world-renowned home appliance brands such as Samsung, Whirlpool, and Midea. It is suitable for PLC modules, sensor interfaces, human-machine interfaces (HMI) and various motor drivers in industrial automation control systems. It can provide stable and anti-loosening signal transmission in communication equipment (routers, switches), office automation equipment (printers, copiers), consumer electronics (game consoles, high-end audio) and automotive electronics (in-vehicle infotainment systems, assisted driving modules).
Table parameters

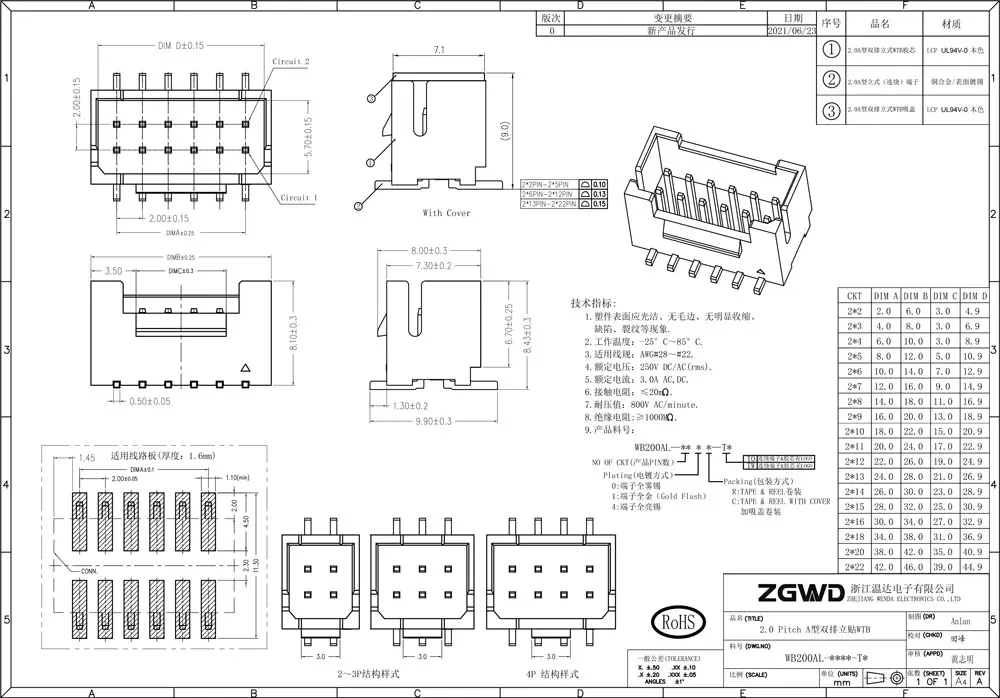

| No. | Name | Material |
| ① | 2.0A type double row vertical WTB rubber core | LCP UL94V-0 Natural color |
| ② | 2.0A type vertical (continuous winding) terminal | Copper alloy/Surface tin plating |
| ③ | 2.0A type double row vertical WTB suction cover | LCP UL94V-0 Natural color |
| CKT | DIM A | DIM B | DIM C | DIM D |
| 2*2 | 2.0 | 6.0 | 3.0 | 4.9 |
| 2*3 | 4.0 | 8.0 | 3.0 | 6.9 |
| 2*4 | 6.0 | 10.0 | 3.0 | 8.9 |
| 2*5 | 8.0 | 12.0 | 5.0 | 10.9 |
| 2*6 | 10.0 | 14.0 | 7.0 | 12.9 |
| 2*7 | 12.0 | 16.0 | 9.0 | 14.9 |
| 2*8 | 14.0 | 18.0 | 11.0 | 16.9 |
| 2*9 | 16.0 | 20.0 | 13.0 | 18.9 |
| 2*10 | 18.0 | 22.0 | 15.0 | 20.9 |
| 2*11 | 20.0 | 24.0 | 17.0 | 22.9 |
| 2*12 | 22.0 | 26.0 | 19.0 | 24.9 |
| 2*13 | 24.0 | 28.0 | 21.0 | 26.9 |
| 2*14 | 26.0 | 30.0 | 23.0 | 28.9 |
| 2*15 | 28.0 | 32.0 | 25.0 | 30.9 |
| 2*16 | 30.0 | 34.0 | 27.0 | 32.9 |
| 2*18 | 34.0 | 38.0 | 31.0 | 36.9 |
| 2*20 | 38.0 | 42.0 | 35.0 | 40.9 |
| 2*22 | 42.0 | 46.0 | 39.0 | 44.9 |
Technical indicators
1.The surface of the plastic part should be smooth, without burrs, obvious shrinkage, defects, cracks, etc.
2.Working temperature: -25℃~85℃.
3.Applicable wire gauge: AWG#28~#22.
4.Rated voltage: 250V DC/AC (rms).
5.Rated current: 3.OA AC, DC.
6.Contact resistance: ≤20mΩ.
7.Withstand voltage: 800V AC/minute.
8.Insulation resistance: ≥1000MΩ.

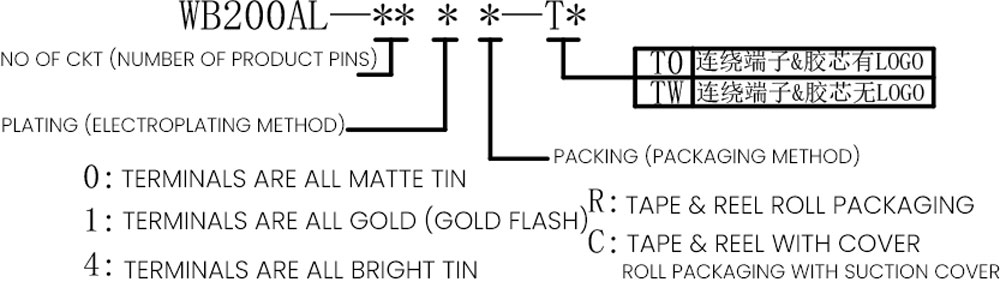

9.Product number:
