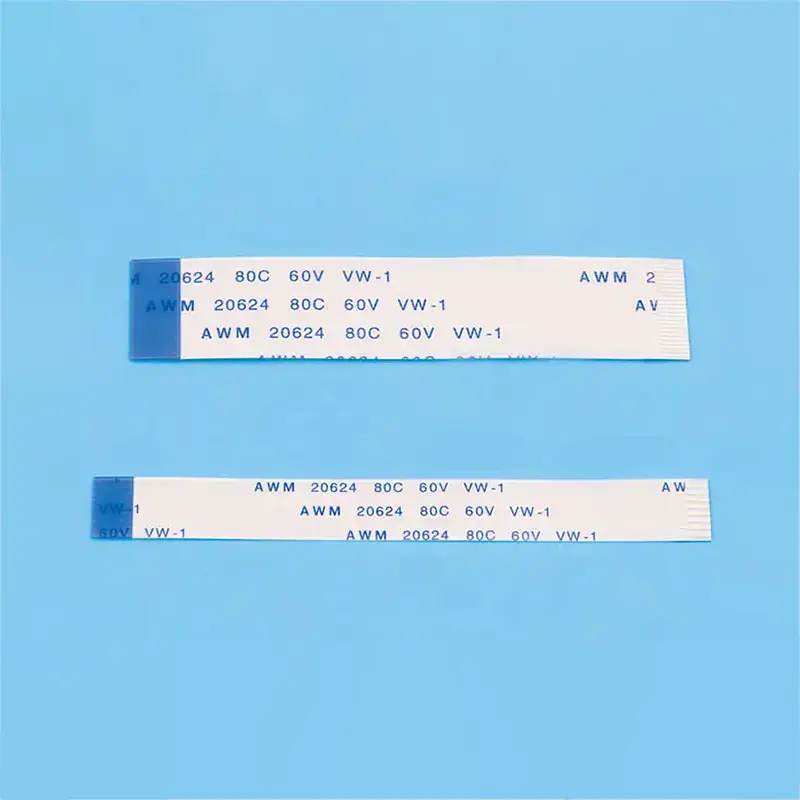

1.Flat Cable FFC Ribbon Cable 1.jpg

Flat Cable FFC Ribbon Cable 1

High-quality flexible flat cable - ffc ribbon cable, standard pitch, multiple pin counts, reliable data connection, durable flat ribbon conductors.FFC cable is made of flexible materials and has good bending performance. It can freely bend in a narrow space and adapt to various complex installation environments.FFC cable is designed with connectors at both ends, which can be directly inserted into devices without additional soldering or crimping processes, greatly simplifying the installation process.

    Contact us
    Product Details

    Product description

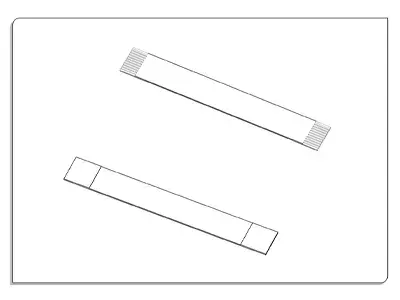

    2.Product description.1.jpg

    DIMENSION
    NO of conductors N
    Pitch P
    Span SP
    Width W
    Margin M
    /
    Total length TL
    Insulator length L
    Insert Thickness T
    Suface Thickness ST
    Strip Length S1
    S2
    Supporting Tapelength B1
    B2

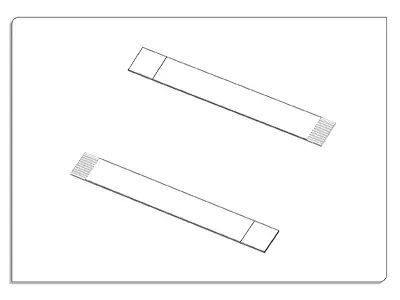

    2.Product description.2.jpg

    DIMENSION
    NO of conductors N
    Pitch P
    Span SP
    Width W
    Margin M
    /
    Total length TL
    Insulator length L
    Insert Thickness T
    Suface Thickness ST
    Strip Length S1
    S2
    Supporting Tapelength B1
    B2

    Dimensional diagram

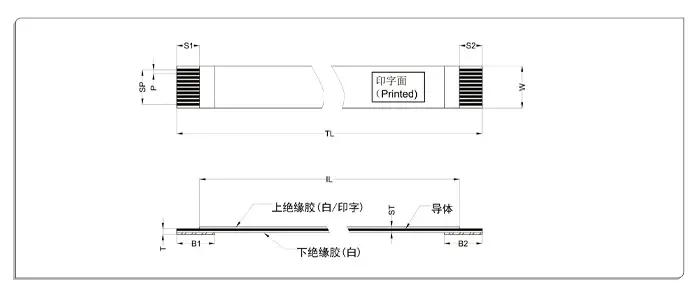

    3.Dimensional diagram.1.jpg

    CKT Part No SP W TL
    4 A0.5*04*60 1.5 2.5 60
    5 A0.5*05*60 2 3 60
    6 A0.5*06*60 2.5 3.5 60
    7 A0.5*07*60 3 4 60
    8 A0.5*08*60 3.5 4.5 60
    9 A0.5*09*60 4 5 60
    10 A0.5*10*60 4.5 5.5 60
    11 A0.5*11*100 5 6 100
    12 A0.5*12*100 5.5 6.5 100
    13 A0.5*13*100 6 7 100
    - - - - -

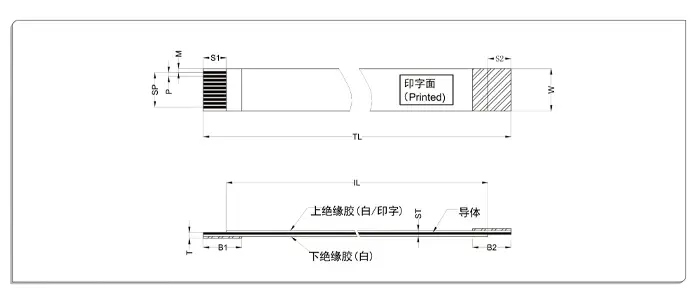

    3.Dimensional diagram.2.jpg
    CKT Part No SP W TL
    4 B0.5*04*60 1.5 2.5 60
    5 B0.5*05*60 2 3 60
    6 B0.5*06*60 2.5 3.5 60
    7 B0.5*07*60 3 4 60
    8 B0.5*08*60 3.5 4.5 60
    9 B0.5*09*60 4 5 60
    10 B0.5*10*60 4.5 5.5 60
    11 B0.5*11*100 5 6 100
    12 B0.5*12*100 5.5 6.5 100
    13 B0.5*13*100 6 7 100
    - - - - -
