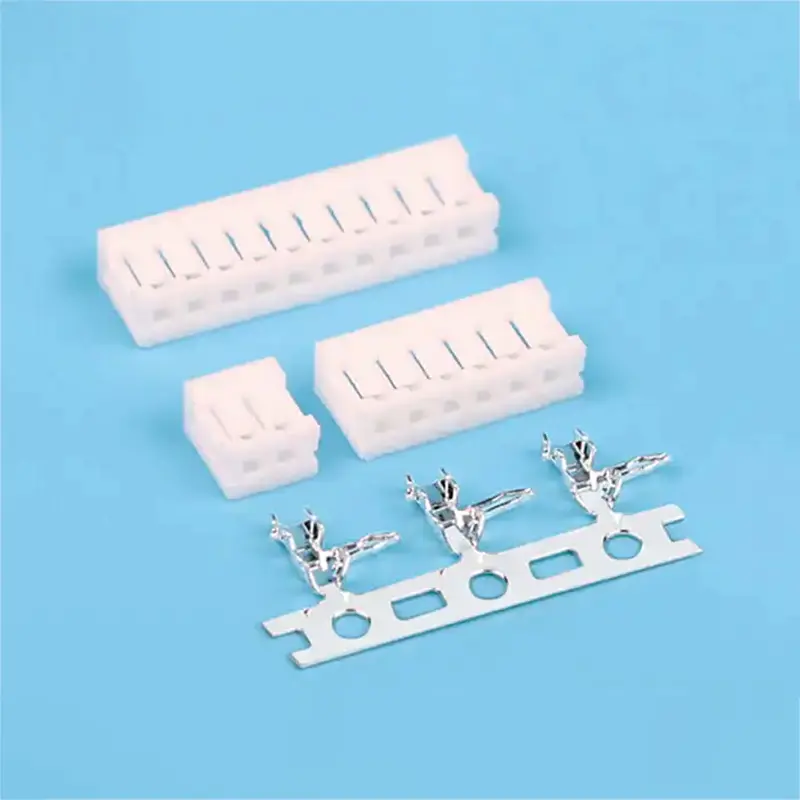

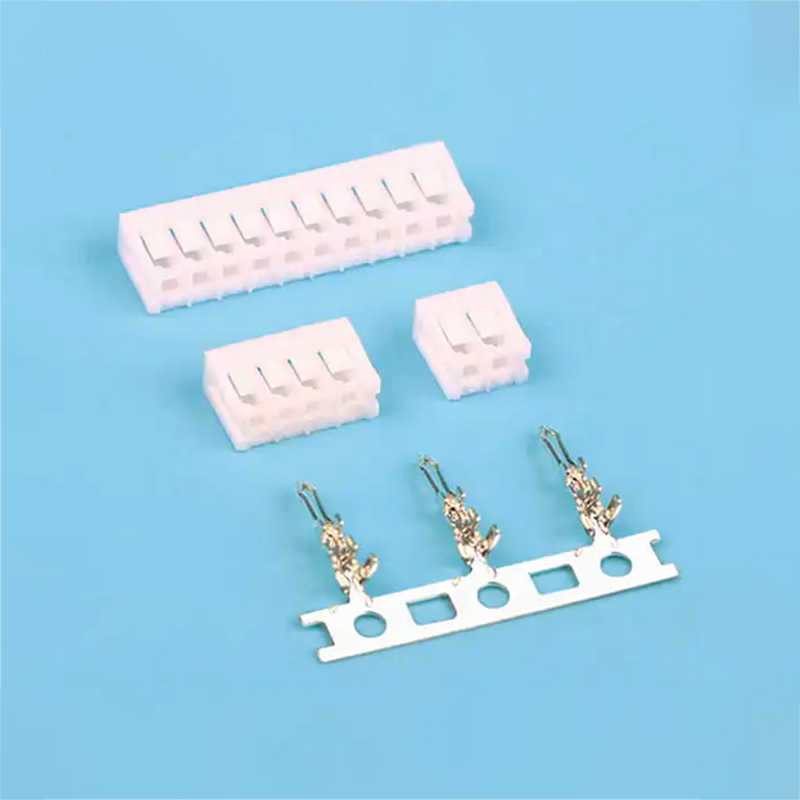

JC15/SZN1.5 Wire-to-Board Strip Connector
Product Overview
In the world of electronic connectivity, the JC15/SZN1.5 wire-to-board strip connector designed for PCB mounting, this 1.5mm pitch wire-to-board connector kit offers a variety of pin configurations, making it an ideal choice for a variety of interconnect system components.The JC15/SZN1.5 wire-to-board strip connectors are available in various configurations, ranging from 2-pin to 20-pin. Each connector has a maximum current rating of 0.7A AC/DC and can withstand voltages up to 50V, making it suitable for low- and medium-power applications. The connector is designed to operate in a temperature range of -25°C to +85°C, including the temperature rise when powered.
Specifications
| model | Diagram | Specification |
| JC15 Wire-to-Board Strip Connector |
|
1、CKT: 2Pin to 20Pin 2、Current rating: 0.7A AC/DC 3、Voltage rating(max): 50V, AC/DC 4、Working Temperature: -25°C~+85°C, (Including temperature rise in applying electrical current) 5、Insulation resistance: ≥1000MΩ 6、Withstand voltage :500VAC(rms) 7、Applicable wire: AWG #30 to #26 8、Applicable PCB board thickness: 1.6mm to 2.0mm |
| SZN1.5 Wire-to-Board Strip Connector |
|
Product Parameter

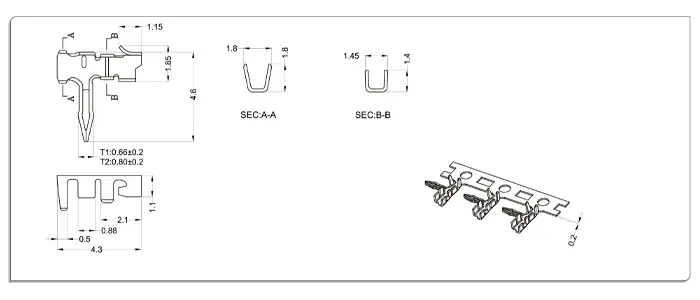

JC15 Terminal: T=0.2mm
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| WTJC150- T0 | AWG#30~ #26 | 1.10mm MAX | phosphor bronze | Tin & Gold-plated |

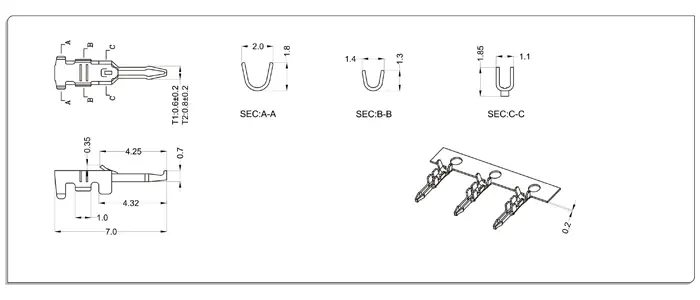

SZN1.5 Terminal: T=0.2mm
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| WTSZN15- T0 | AWG#30~ #26 | 1.10mm MAX | phosphor bronze | Tin & Gold-plated |
Product description

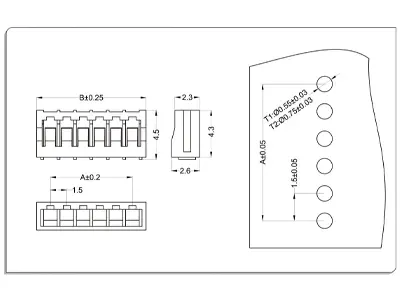

JC15 Housing
Material: Nylon 66 UL94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | WTJC150-02 | 1.5 | 4 |
| 3 | WTJC150-03 | 3 | 5.5 |
| 4 | WTJC150-04 | 4.5 | 7 |
| 5 | WTJC150-05 | 6 | 8.5 |
| 6 | WTJC150-06 | 7.5 | 10 |
| 7 | WTJC150-07 | 9 | 11.5 |
| 8 | WTJC150-08 | 10.5 | 13 |
| 9 | WTJC150-09 | 12 | 14.5 |
| 10 | WTJC150-10 | 13.5 | 16 |
| 11 | WTJC150-11 | 15 | 17.5 |
| 12 | WTJC150-12 | 16.5 | 19 |
| - | - | - | - |
| 20 | WTJC150-20 | 28.5 | 31 |

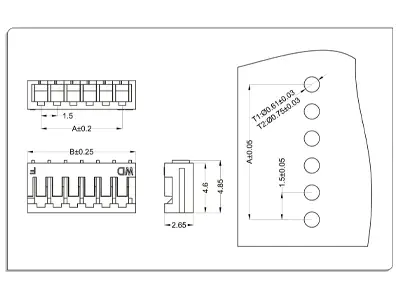

SZN1.5 Housing
Material: Nylon 66 UL94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | WTSZN15-02 | 1.5 | 4 |
| 3 | WTSZN15-03 | 3 | 5.5 |
| 4 | WTSZN15-04 | 4.5 | 7 |
| 5 | WTSZN15-05 | 6 | 8.5 |
| 6 | WTSZN15-06 | 7.5 | 10 |
| 7 | WTSZN15-07 | 9 | 11.5 |
| 8 | WTSZN15-08 | 10.5 | 13 |
| 9 | WTSZN15-09 | 12 | 14.5 |
| 10 | WTSZN15-10 | 13.5 | 16 |
| 11 | WTSZN15-11 | 15 | 17.5 |
| 12 | WTSZN15-12 | 16.5 | 19 |
| - | - | - | - |
| 20 | WTSZN15-20 | 28.5 | 31 |
