0.5mm Pitch
0102030405
0.5mm Pitch Easy On/Back Flip Type H=1.5
Product Advantages
1.Space Saving: Due to the small pitch design of FPC flat connector 0.5mm Pitch, the size of the connector can be significantly reduced, saving space for electronic devices and meeting the requirements of miniaturization and high-density design.
2.Improved Production Efficiency: The flat connector design makes it more convenient and faster to plug and unplug the connector, reducing the time and labor required for plugging and unplugging connectors, thereby improving production efficiency.
Specifications

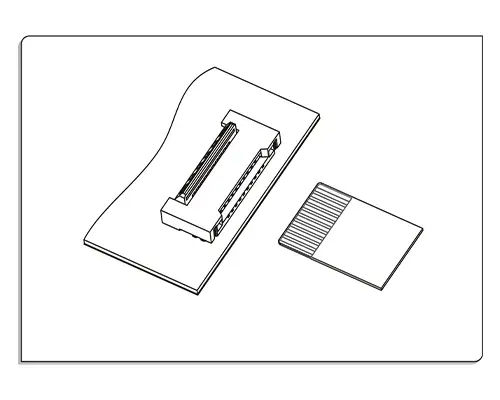

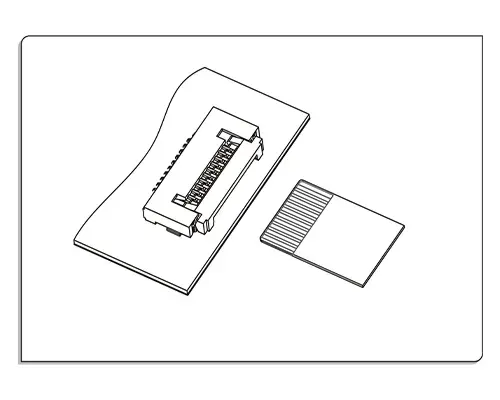

| Model | Diagram | Specifications |

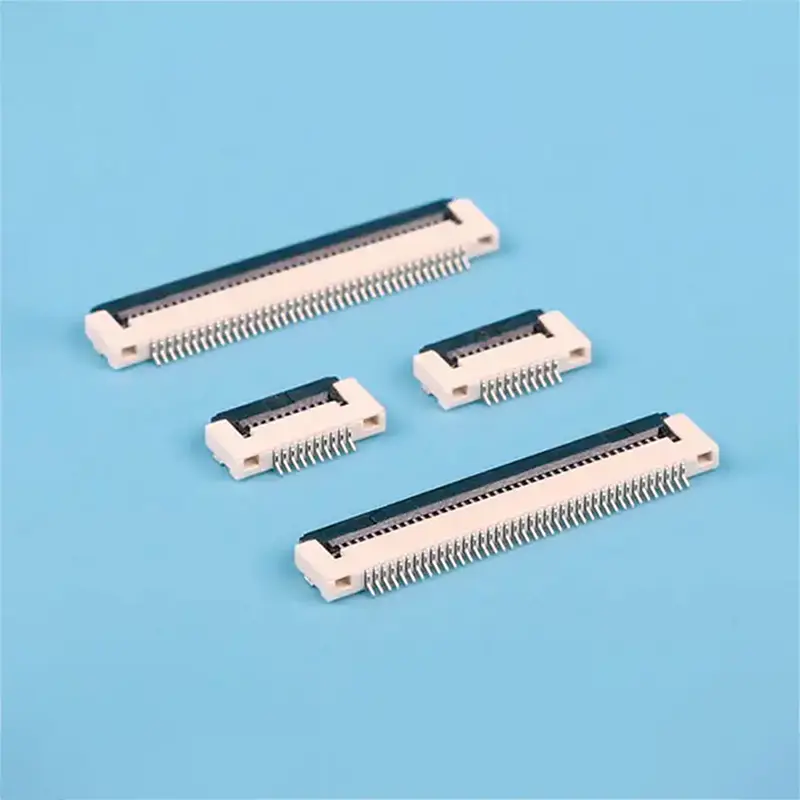

| 0.5mm Pitch Easy On Type H=1.5 |
|
1、CKT: 4Pin to 60Pin 2、Current rating: 0.5A AC/DC 3、Voltage rating(max): 50V, AC/DC 4、Working Temperature: -25°C~+85°C, (Including temperature rise in applying electrical current) 5、Contact resistance: Initial value S30mΩ After environmental testing≤50mΩ 6、Insulation resistance: ≥500MΩ 7、Withstand voltage: 500VAC(rms) 8、Applicable PCB board thickness: 1.6mm to 2.0mm |

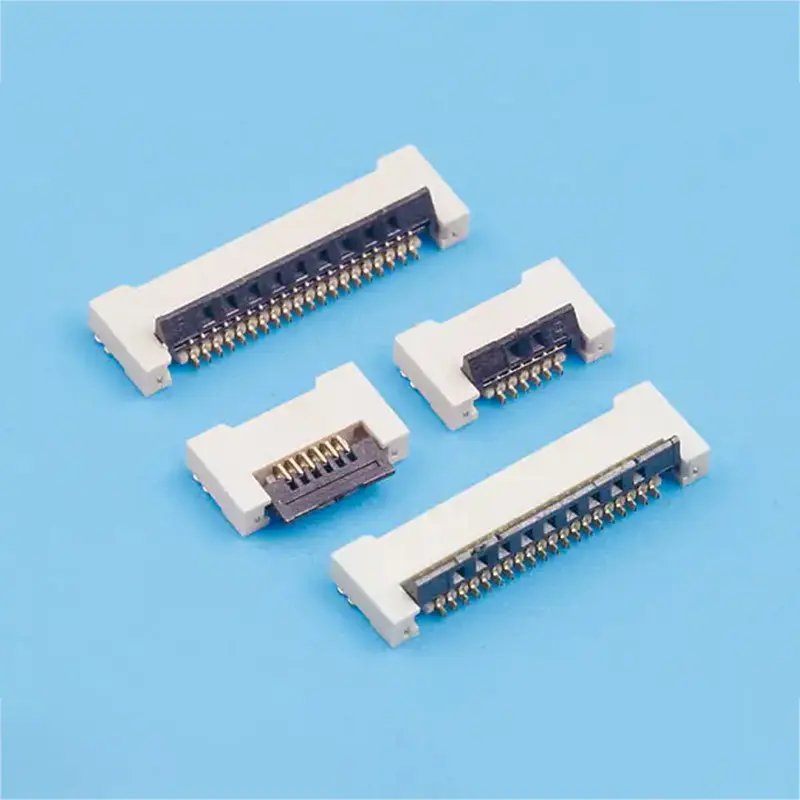

| 0.5mm Pitch Back Flip Type H=1.5 |
|
Mounting Measurement

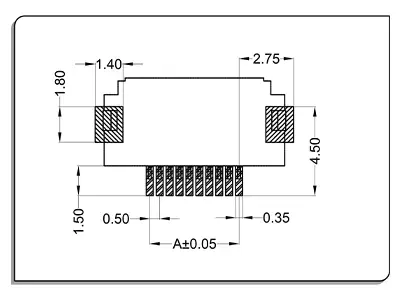

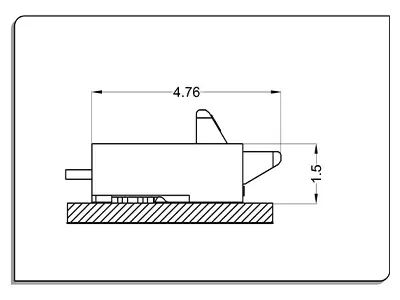

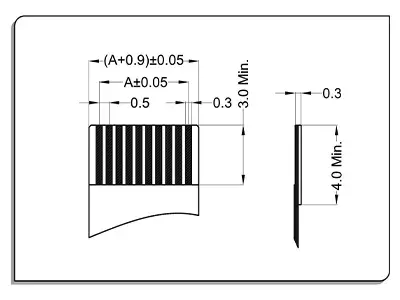

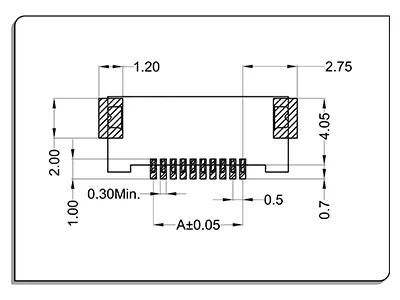

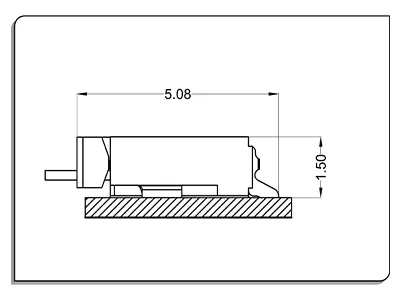

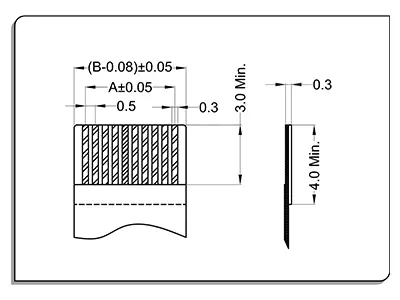

| Assembly layout | Applicable Flat cable | P.C.B Layout | |
| 0.5mm Pitch Easy On Type H=1.5 |
|
|
|
| 0.5mm Pitch Back Flip Type H=1.5 |
|
|
|
Product description

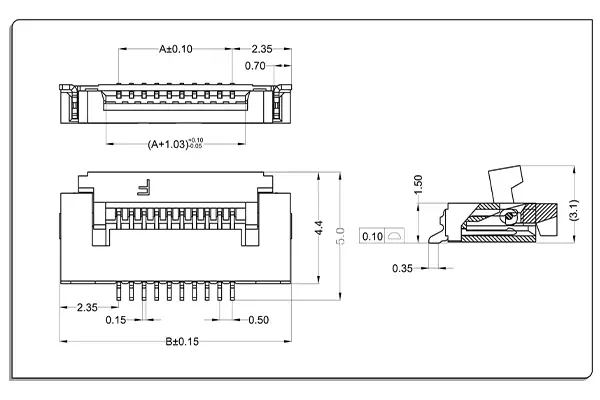

Easy-on R/A
Material and Finish ：Housing:LCP UL .94V-0 & Terminal:phosphor bronze &Fitting:phosphor bronze;
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 4.00 | XW05152-04 | 1.50 | 6.20 |
| 5.00 | XW05152-05 | 2.00 | 6.70 |
| 6.00 | XW05152-06 | 2.50 | 7.20 |
| 7.00 | XW05152-07 | 3.00 | 7.70 |
| 8.00 | XW05152-08 | 3.50 | 8.20 |
| 9.00 | XW05152-09 | 4.00 | 8.70 |
| 10.00 | XW05152-10 | 4.50 | 9.20 |
| 11.00 | XW05152-11 | 5.00 | 9.70 |
| 12.00 | XW05152-12 | 5.50 | 10.20 |
| 13.00 | XW05152-13 | 6.00 | 10.70 |
| 14.00 | XW05152-14 | 6.50 | 11.20 |
| - | - | - | - |
| 60.00 | XW05152-60 | 29.50 | 34.20 |

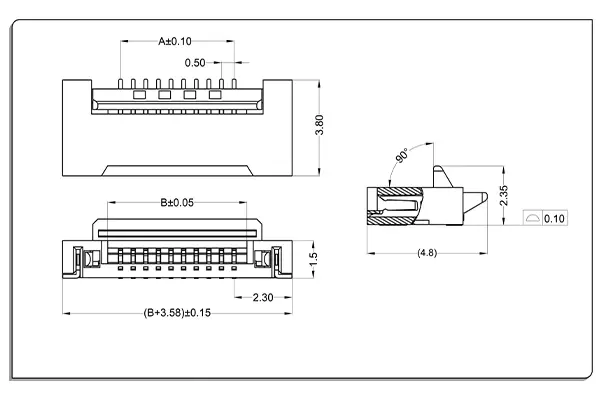

Back Flip R/A
Material and Finish ：Housing:LCP UL .94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;
Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 4 | HW05150-04 | 1.5 | 2.52 |
| 5 | HW05150-05 | 2 | 3.02 |
| 6 | HW05150-06 | 2.5 | 3.52 |
| 7 | HW05150-07 | 3 | 4.02 |
| 8 | HW05150-08 | 3.5 | 4.52 |
| 9 | HW05150-09 | 4 | 5.02 |
| 10 | HW05150-10 | 4.5 | 5.52 |
| 11 | HW05150-11 | 5 | 6.02 |
| 12 | HW05150-12 | 5.5 | 6.52 |
| 13 | HW05150-13 | 6 | 7.02 |
| 14 | HW05150-14 | 6.5 | 7.52 |
| - | - | - | - |
| 60 | HW05150-60 | 29.5 | 30.52 |
