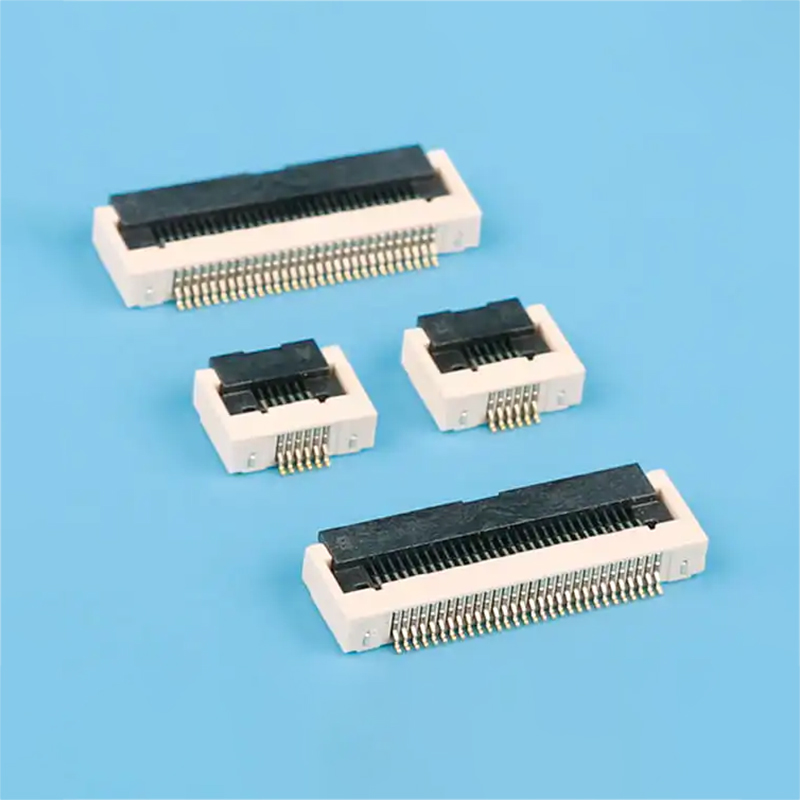

1.0.5mm Pitch Easy On Type H=2.55 with Buckle.jpg
1.0.5mm Pitch Easy On Type H=2.55 with Customized Butterfly Buckle.jpg

0.5mm Pitch Easy On Type H=2.55 with Buckle/with Customized Butterfly Buckle

0.5mm pitch 2.55mm height easy-on r/a with buckle fpc flat cable connector, flexible printed circuit board connectors, durable locking design;0.5mm pitch 2.55mm height easy-on r/a customized butterfly buckle fpc flat connector, flexible printed circuit board connector, high-density interface, durable, easy-insert design.

    Contact us
    Product Details

    Specifications

    Model Diagram Specification
    0.5mm Pitch Easy On Type H=2.55 with Buckle   1、CKT: 5Pin to 80Pin
    2、Current rating: 0.5A AC/DC
    3、Voltage rating(max): 50V, AC/DC
    4、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current)
    5、Contact resistance:value≤50mΩ
    6、Insulation resistance: 2500MΩ
    7、Withstand voltage: 150VAC(rms)
    8、Applicable PCB board thickness: 1.6mm to 2.0mm
    0.5mm Pitch Easy On Type H=2.55 with Customized Butterfly Buckle

    Mounting Measurement

      Assembly Layout Applicable Flat Cable P.C.B Layout
    0.5mm Pitch Easy On Type H=2.55 with Buckle
    0.5mm Pitch Easy On Type H=2.55 with Customized Butterfly Buckle

    Product description

    Easy-on R/A With Buckle

    Material and Finish ：

    Housing:LCP UL94V-0 & Terminal:phosphor bronze & Fitting:Brass;

    Finish:Tin-plated & Gold-plated

    4.Product description.1.jpg

    CKT Part No DIM A DIM B
    5 XW05252-05 7.45 3.07
    6 XW05252-06 7.95 3.57
    7 XW05252-07 8.45 4.07
    8 XW05252-08 8.95 4.57
    9 XW05252-08 9.45 5.07
    10 XW05252-10 9.95 5.57
    11 XW05252-11 10.45 6.07
    12 XW05252-12 10.95 6.57
    13 XW05252-13 11.45 7.07
    14 XW05252-14 11.95 7.57
    15 XW05252-15 12.45 8.07
    - - - -
    80 XW05252-80 44.95 40.57

    Easy-on R/A Customized Butterfly buckle

    Material and Finish ：

    Housing;LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:Brass;

    Finish: Tin-plated & Gold-plated

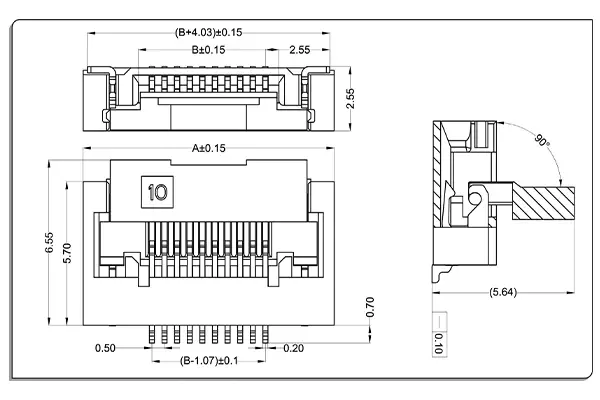

    4.Product description.2.jpg

    CKT Part No DIM A DIM B
    5 XW05252-05 7.45 3.07
    6 XW05252-06 7.95 3.57
    7 XW05252-07 8.45 4.07
    8 XW05252-08 8.95 4.57
    9 XW05252-08 9.45 5.07
    10 XW05252-10 9.95 5.57
    11 XW05252-11 10.45 6.07
    12 XW05252-12 10.95 6.57
    13 XW05252-13 11.45 7.07
    14 XW05252-14 11.95 7.57
    15 XW05252-15 12.45 8.07
    - - - -
    80 XW05252-80 44.95 40.57
