0.5mm Pitch Non-ZIF S/T Positive Pointer H=4.0

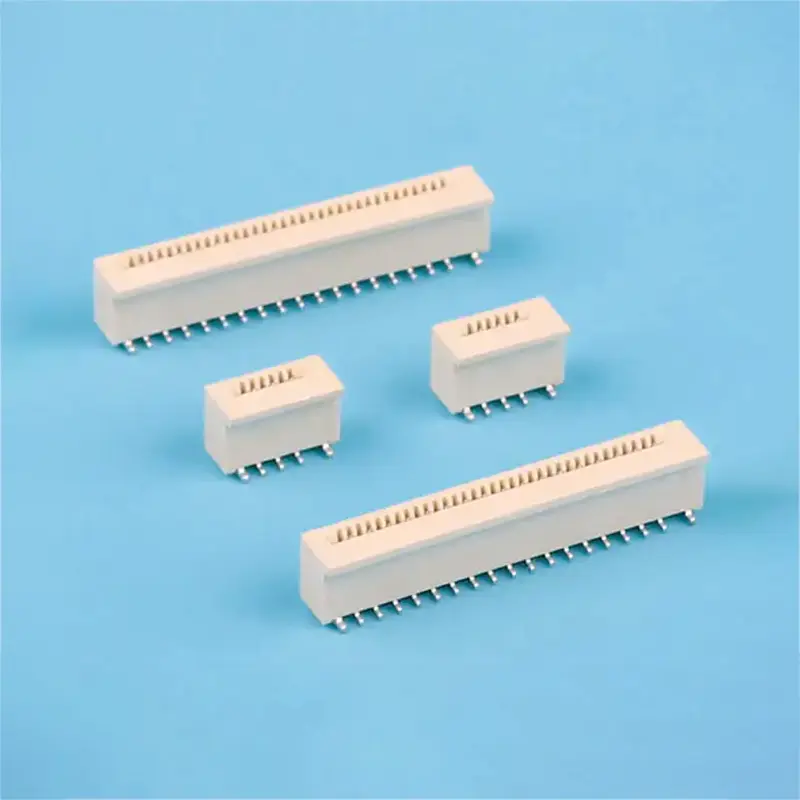

Product Overview

The connector has a 0.5mm pitch, which is the distance between the centers of adjacent pins. This fine pitch is critical for modern electronic devices that require high-density connections. The connector supports configurations from 4 to 60 pins, providing versatility for different circuit designs. In terms of electrical specifications, the 0.5mm pitch non-zero insertion torque (Non-ZIF) S/T positive pointer connector is rated at 0.5A AC/DC and can withstand up to 50V AC/DC. The connector is designed to operate in a temperature range of -25°C to +85°C to adapt to various environmental conditions and maintain performance. This temperature range takes into account the temperature rise caused by current, ensuring that the connector maintains reliability under working pressure.

Specifications

Diagram	Specification
	1、CKT: 4Pin to 60Pin 2、Current rating: 0.5A AC/DC 3、Voltage rating(max): 50V, AC/DC 4、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current) 5、Contact resistance: Initial value ≤30mΩ After environmental testing≤60mΩ 6、Insulation resistance: ≥500MΩ 7、Withstand voltage: 250VAC(rms) 8、Applicable PCB board thickness: 1.6mm to 2.0mm

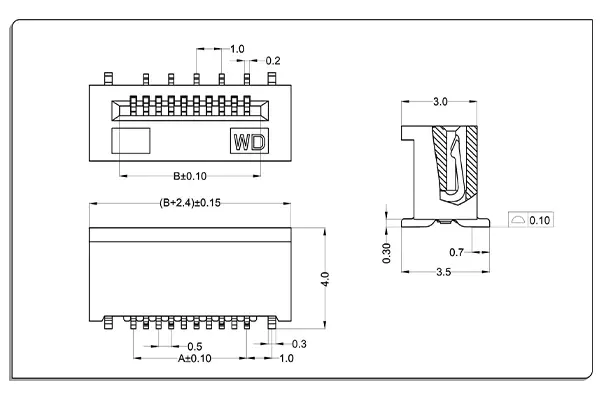

Mounting Measurement

Assembly Layout	Applicable Flat Cable	P.C.B Layout

Product description

Non-ZIF S/T Positive pointer

Material and Finish ：

Housing: LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:Brass;

Finish:Tin-plated & Gold-plated
