0.5mm Pitch
0102030405
0.5mm Pitch ZIF R/A Type Upper/Down Contact H=2.0
Product Advantages
| model | Diagram | Specification |
| 0.5mm Pitch ZIF R/A Type Upper Contact H=2.0 |
|
1、CKT: 4Pin to 60Pin 2、Current rating: 0.5A AC/DC 3、Voltage rating(max): 50V, AC/DC 4、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current) 5、Contact resistance: Initial value≤30mΩAfter environmental testing≤50mΩ 6、Insulation resistance: 2500MΩ 7、Withstand voltage: 500VAC(rms) 8、Applicable PCB board thickness: 1 .6mm to 2.0mm |

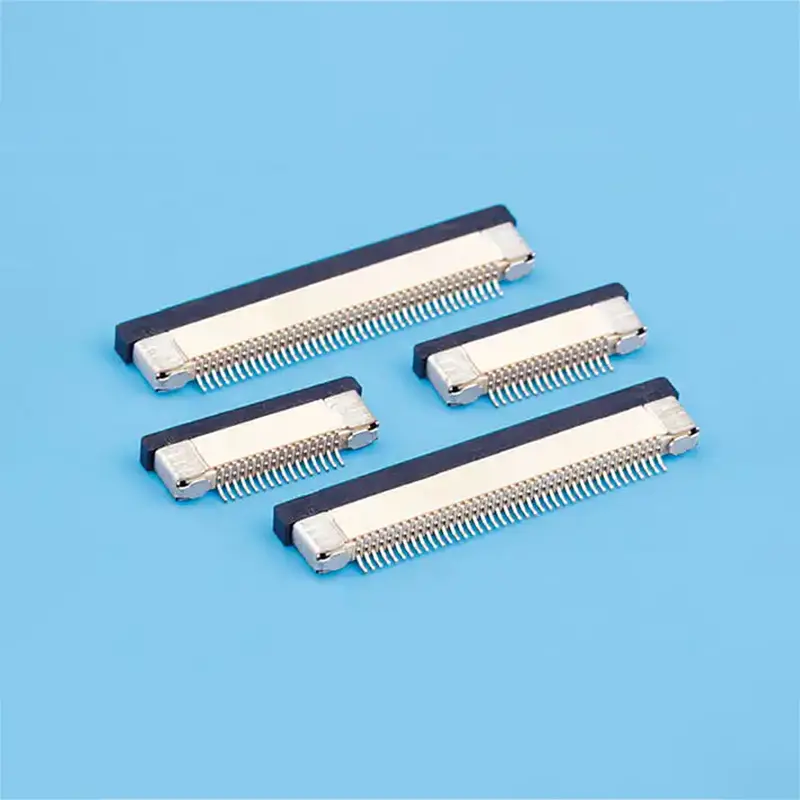

| 0.5mm Pitch ZIF R/A Type Down Contact H=2.0 |
|
Mounting Measurement
| Assembly Layout | Applicable Flat Cable | P.C.B Layout |
|
|
 |
 |
 |
 |
Product description

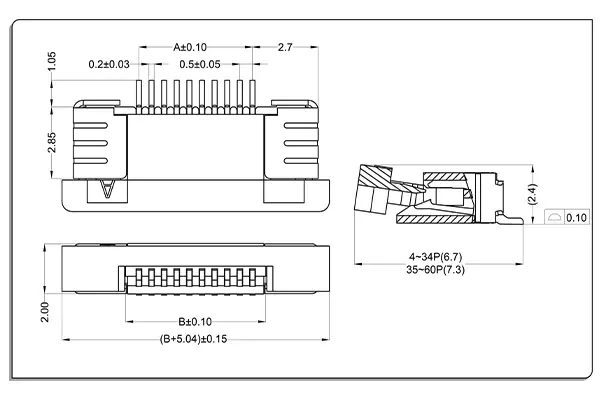

ZIF R/A Upper contact
Material and Finish ：
Housing:LCP UL94V-0 & Terminal:phosphor bronze & Fitting:Brass;
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 4 | LW05201-04 | 1.5 | 2.56 |
| 5 | LW05201-05 | 2 | 3.06 |
| 6 | LW05201-06 | 2.5 | 3.56 |
| 7 | LW05201-07 | 3 | 4.06 |
| 8 | LW05201-08 | 3.5 | 4.56 |
| 9 | LW05201-09 | 4 | 5.06 |
| 10 | LW05201-10 | 4.5 | 5.56 |
| 11 | LW05201-11 | 5 | 6.06 |
| 12 | LW05201-12 | 5.5 | 6.56 |
| 13 | LW05201-13 | 6 | 7.06 |
| 14 | LW05201-14 | 6.5 | 7.56 |
| - | - | - | - |
| 60 | LW05201-60 | 29.5 | 30.56 |

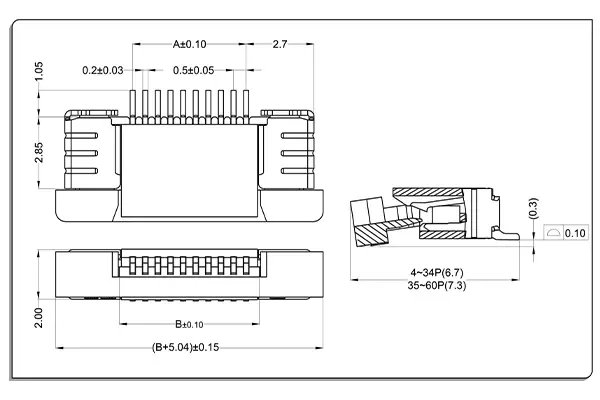

ZIF R/A Down contact
Material and Finish ：
Housing:LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:Brass;
Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 4 | LW05202-04 | 1.5 | 2.56 |
| 5 | LW05202-05 | 2 | 3.06 |
| 6 | LW05202-06 | 2.5 | 3.56 |
| 7 | LW05202-07 | 3 | 4.06 |
| 8 | LW05202-08 | 3.5 | 4.56 |
| 9 | LW05202-09 | 4 | 5.06 |
| 10 | LW05202-10 | 4.5 | 5.56 |
| 11 | LW05202-11 | 5 | 6.06 |
| 12 | LW05202-12 | 5.5 | 6.56 |
| 13 | LW05202-13 | 6 | 7.06 |
| 14 | LW05202-14 | 6.5 | 7.56 |
| - | - | - | - |
| 60 | LW05202-60 | 29.5 | 30.56 |
