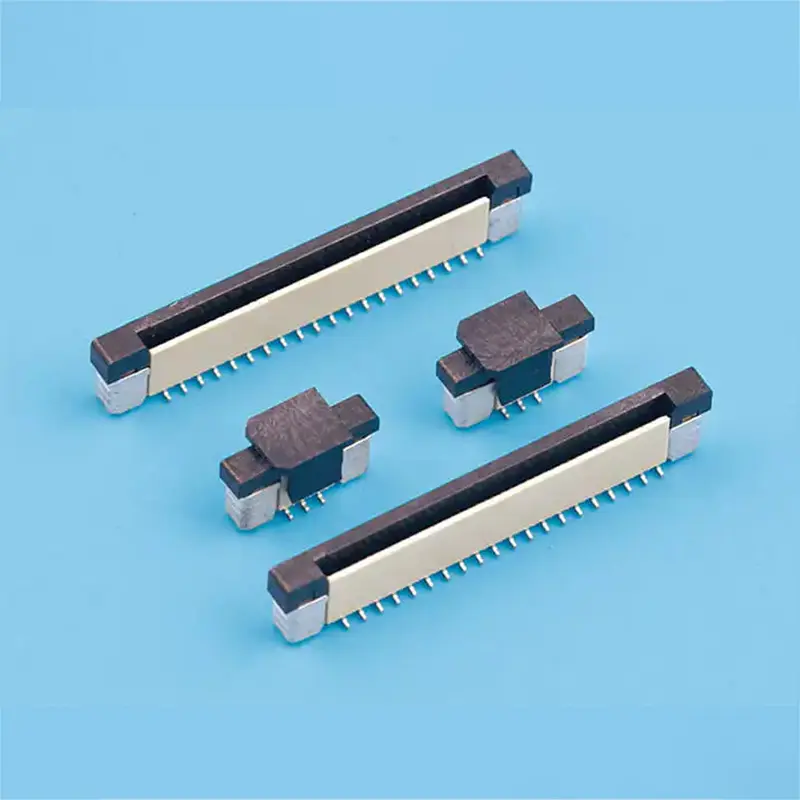

0.5mm Pitch ZIF RA Type H=4.5

Designed to be compatible with a wide range of flat cable configurations, the 0.5mm Pitch ZIF RA Type H=4.5 connector is an ideal choice for engineers and designers seeking reliability and efficient electronic design. With its compact size and rugged specifications, the 0.5mm pitch ZIF RA H=4.5 connector is designed to meet the demands of modern electronic devices and ensure optimal performance in a variety of environments.

Product Details

Product Overview

The0.5mm Pitch ZIF RA Type H=4.5 connector supports 4 to 60 pins, providing flexibility for different circuit designs. With a rated current of 0.5A AC/DC and a maximum rated voltage of 50V AC/DC, it is suitable for a wide range of applications from consumer electronics to industrial machinery. The connector is designed to operate over a temperature range of -25°C to +85°C, taking into account the temperature rise when power is applied.

Specifications

Diagram	Specification
	1、CKT: 4Pin to 60Pin 2、Current rating: 0.5A AC/DC 3、Voltage rating(max): 50V, AC/DC 4、Working Temperature: -25°C~+85"C,(Including temperature rise in applying electrical current) 5、Contact resistance: Initial value≤30mΩ After environmental testing≤50mSΩ 6、Insulation resistance:≥500MΩ 7、Withstand voltage: 500VAC(rms) 8、Applicable PCB board thickness: 1.6mm to 2.0mm

Mounting Measurement

Assembly Layout	Applicable Flat Cable	P.C.B Layout

Product description

ZIF S/T Positive pointer

Material and Finish ：

Housing:LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:Brass;

Finish: Tin-plated & Gold-plated

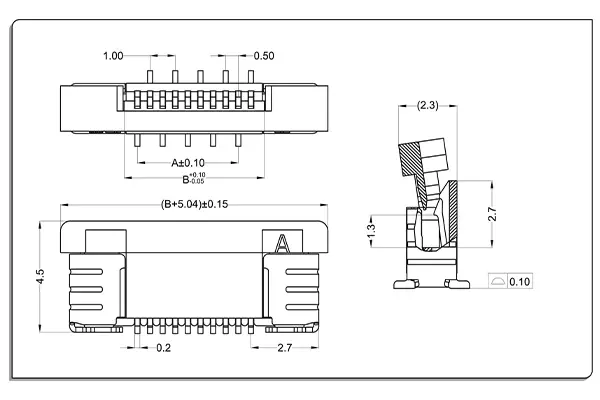

4.Product description.jpg

CKT	Part No	DIM A	DIM B
4	LL05453-04	1.5	2.56
5	LL05453-05	2	3.06
6	LL05453-06	2.5	3.56
7	LL05453-07	3	4.06
8	LL05453-08	3.5	4.56
9	LL05453-09	4	5.06
10	LL05453-10	4.5	5.56
11	LL05453-11	5	6.06
12	LL05453-12	5.5	6.56
13	LL05453-13	6	7.06
14	LL05453-14	6.5	7.56
-	-	-	-
60	LL054532-60	29.5	30.56
