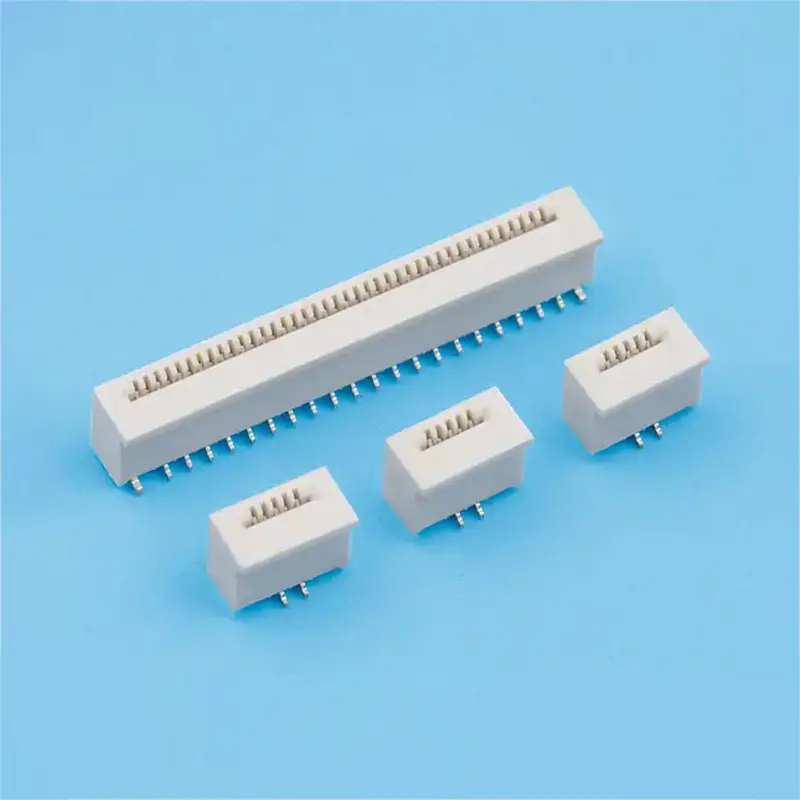

1.0-H5.5 Non-ZIF ST Reversed Pointer

The 1.0-H5.5 Non-ZIF ST Reversed Pointer Connector Kit is a precision solution designed for flexible connections on printed circuit boards (PCBs). With a 0.5mm pitch and 4.0mm height, this connector kit is ideal for space-constrained applications. The Non-ZIF design allows for easy and reliable connections, while the reverse pointer configuration ensures proper alignment and secure engagement. This product is particularly suitable for a variety of electronic devices that require a rugged and efficient interconnect system.

Product Details

Specifications

Diagram	Specification
	1、CKT: 4Pin to 60Pin 2、Current rating: 0.5A AC/DC 3、Voltage rating(max): 50V， AC/DC 4、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current) 5、Contact resistance: Initial value <30mΩ After environmental testing≤60mΩ 6、Insulation resistance:≥500MΩ 7、Withstand voltage: 250VAC(rms) 8、Applicable PCB board thickness: 1.6mm to 2.0mm

Mounting Measurement

Assembly Layout	Applicable Flat Cable	P.C.B Layout

Product description

Non-ZIF S/T Reversed pointer

Material and Finish ：

Housing:LCP UL .94V-0 & Terminal:phosphor bronze & Fitting:Brass;

Finish: Tin-plated & Gold-plated

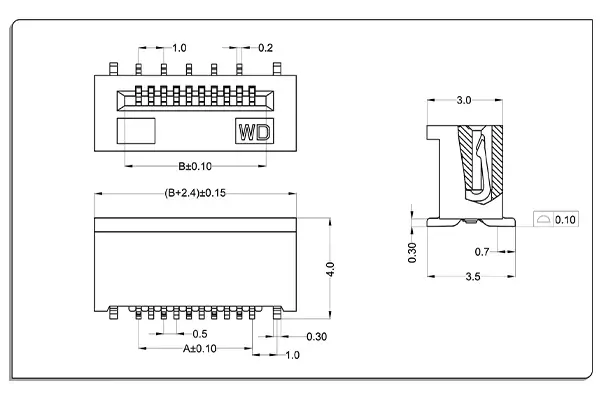

4.Product description.jpg

CKT	Part No	DIM A	DIM B
4	WL05404-04	1.5	2.6
5	WL05404-05	2	3.1
6	WL05404-06	2.5	3.6
7	WL05404-07	3	4.1
8	WL05404-08	3.5	4.6
9	WL05404-09	4	5.1
10	WL05404-10	4.5	5.6
11	WL05404-11	5	6.1
12	WL05404-12	5.5	6.6
13	WL05404-13	6	7.1
14	WL05404-14	6.5	7.6
-	-	-	-
60	WL05404-60	29.5	30.6
