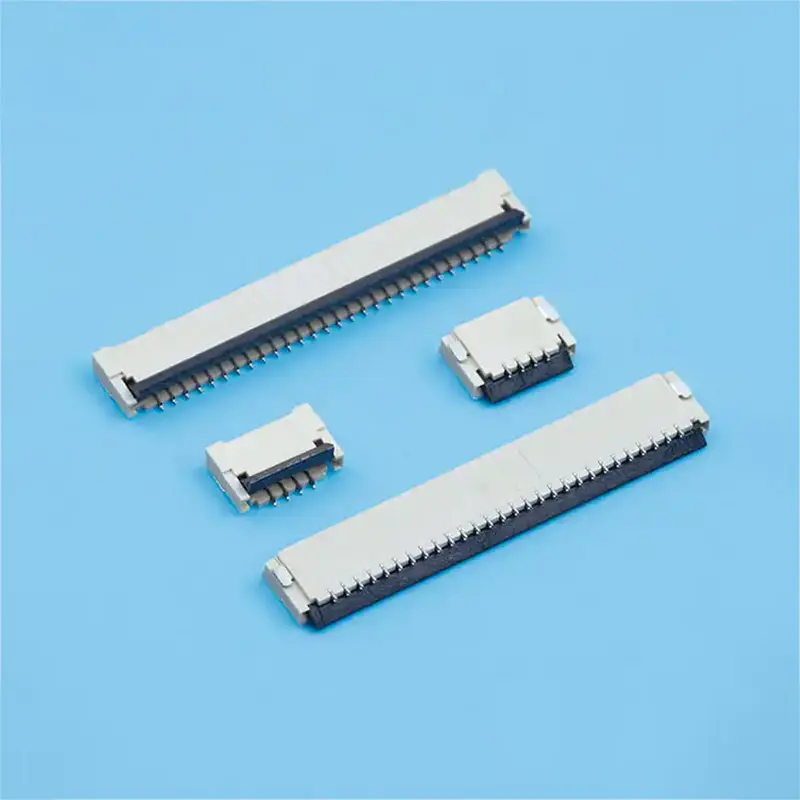

1.1.0mm Pitch Back Flip Type H=2.0.jpg

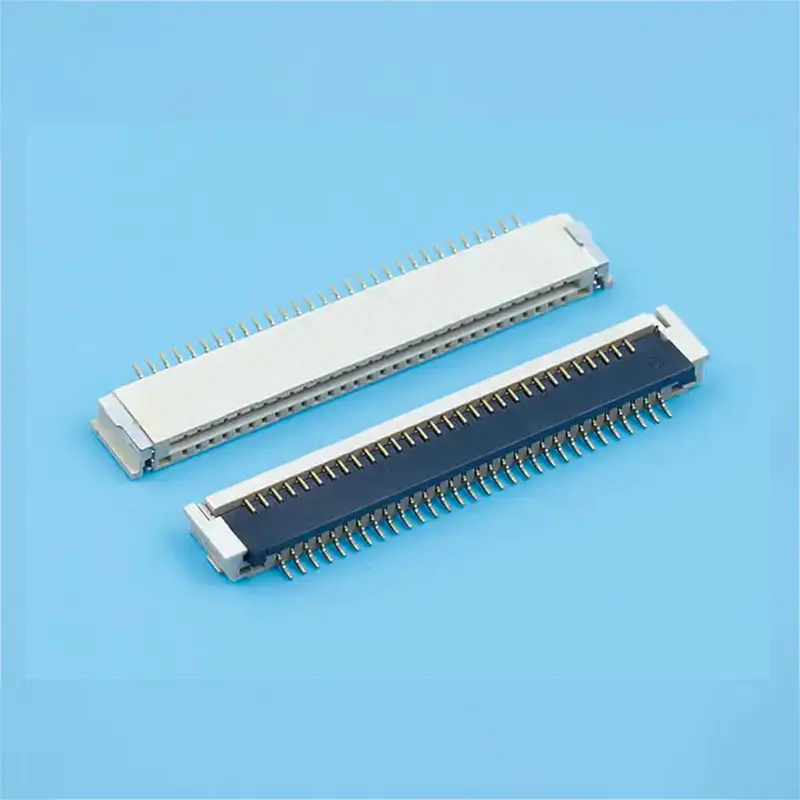

1.1.0mm Pitch Back Flip Type H=2.7.jpg

1.0mm Pitch Back Flip Type H=2.0/H=2.7

Fpc flat connector, 1.0mm pitch, 2.0mm height, back flip r/a, flexible printed circuit cable connectors, for electronics and prototyping；High-density fpc flat ribbon cable connector, 1.0mm pitch, 2.7mm height, back flip r/a, durable interface, electronics internal wiring.

    Contact us
    Product Details

    Specifications

    Model Diagram Specification
    1.0mm Pitch Back Flip Type H=2.0   1、CKT: 4Pin to 30Pin
    2、Current rating: 0.5A AC/DC
    3、Voltage rating(max): 50V, AC/DC
    4、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current)
    5、Contact resistance: Initial value≤30mΩ After environmental testing≤50mΩ
    6、Insulation resistance: ≥500MΩ
    7、Withstand voltage: 500VAC(rms)
    8、Applicable PCB board thickness: 1.6mm to 2.0mm
    1.0mm Pitch Back Flip Type H=2.7   1、CKT: 4Pin to 35Pin
    2、Current rating: 0.5A AC/DC
    3、Voltage rating(max): 50V, AC/DC
    4、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current)
    5、Contact resistance: Initial value ≤20mΩ After environmental testing≤40mΩ
    6、Insulation resistance: ≥100MΩ
    7、Withstand voltage: 500VAC(rms)
    8、Applicable PCB board thickness: 1.6mm to 2.0mm

    Mounting Measurement

    Assembly Layout Applicable Flat Cable P.C.B Layout
    1.0mm Pitch Back Flip Type H=2.0
    1.0mm Pitch Back Flip Type H=2.7

    Product description

    Back Flip R/A

    Material and Finish ：

    Housing:LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;

    Finish: Tin-plated & Gold-plated

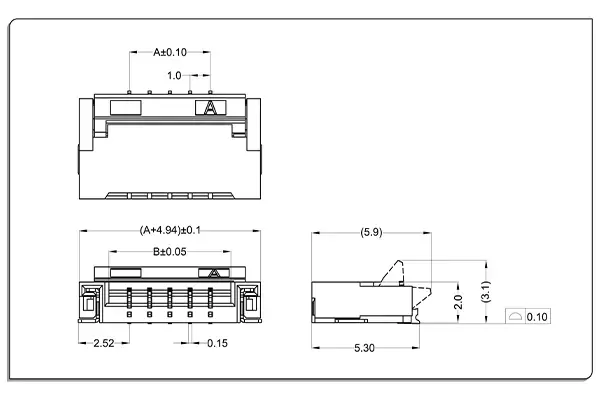

    3.Product description.1.jpg

    CKT Part No DIM A DIM B
    4 HW10200-04 3 5.02
    5 HW10200-05 4 6.02
    6 HW10200-06 5 7.02
    7 HW10200-07 6 8.02
    8 HW10200-08 7 9.02
    9 HW10200-09 8 10.02
    10 HW10200-10 9 11.02
    11 HW10200-11 10 12.02
    12 HW10200-12 11 13.02
    13 HW10200-13 12 14.02
    14 HW10200-14 13 15.02
    - - - -
    30 HW10200-30 29 31.02

    Back Flip R/A With Buckle

    Material and Finish ：

    Housing:LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:Brass;

    Finish: Tin-plated & Gold-plated

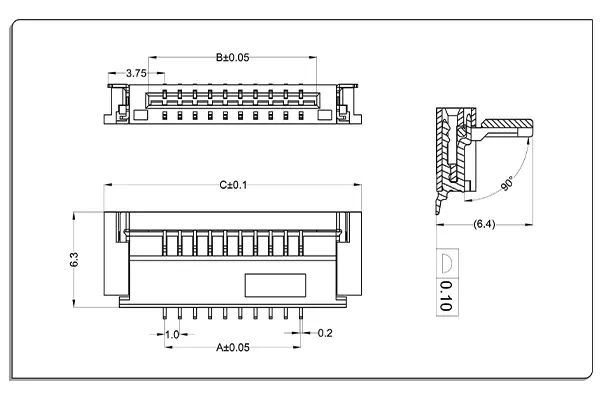

    3.Product description.2.jpg

    CKT Part No DIM A DIM B
    4 HW10270-04 3 5.1
    5 HW10270-05 4 6.1
    6 HW10270-06 5 7.1
    7 HW10270-07 6 8.1
    8 HW10270-08 7 9.1
    9 HW10270-09 8 10.1
    10 HW10270-10 9 11.1
    11 HW10270-11 10 12.1
    12 HW10270-12 11 13.1
    13 HW10270-13 12 14.1
    14 HW10270-14 13 15.1
    - - - -
    35 HW10270-35 34 36.1
