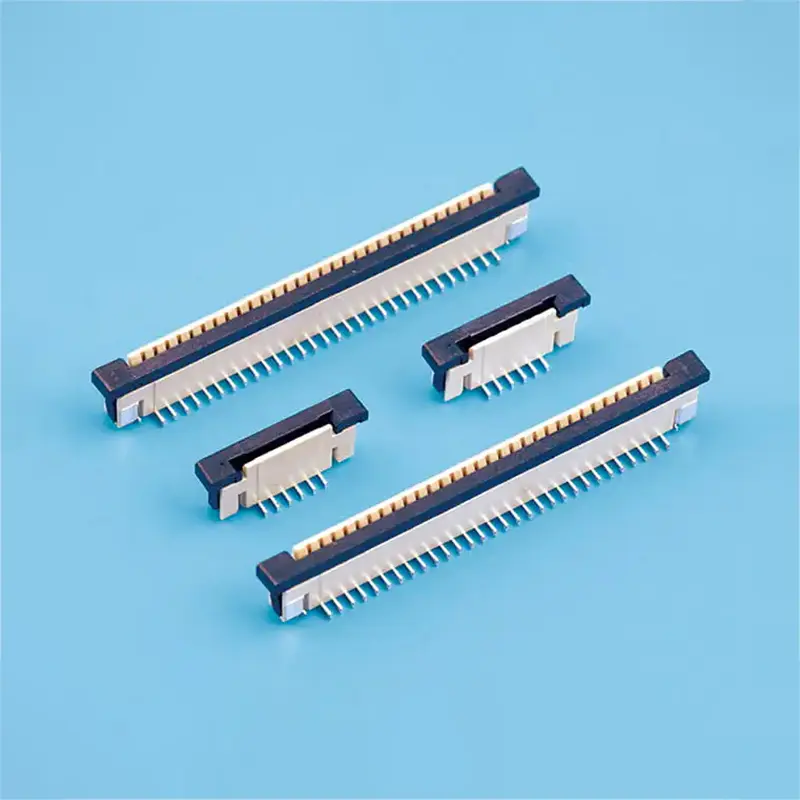

1.0mm Pitch ZIF S/T FPC Flat Connector/Abreast PIN H=5.5
Specifications
| Model | Diagram | Specification |
| 1.0mm Pitch ZIF S/T FPC Flat Connector H=5.5 |
|
1、CKT: 4Pin to 40Pin 2、Current rating: 0.5A AC/DC 3、Voltage rating(max): 50V, AC/DC 4、Working Temperature: -25°C~+85'C,(Including temperature rise in applying electrical current) 5、Contact resistance: Initial value ≤30mΩ After environmental testing≤60mΩ 6、Insulation resistance: ≥500MΩ 7、Withstand voltage: 250VAC(rms) 8、Applicable PCB board thickness: 1.6mm to 2.0mm |
| 1.0mm Pitch ZIF S/T Abreast PIN H=5.5 |
|
Mounting Measurement
| Assembly Layout | Applicable Flat Cable | P.C.B Layout | |
| 1.0mm Pitch ZIF S/T FPC Flat Connector H=5.5 |
|
|
|
| 1.0mm Pitch ZIF S/T Abreast PIN H=5.5 |
|
|
 |
Product description

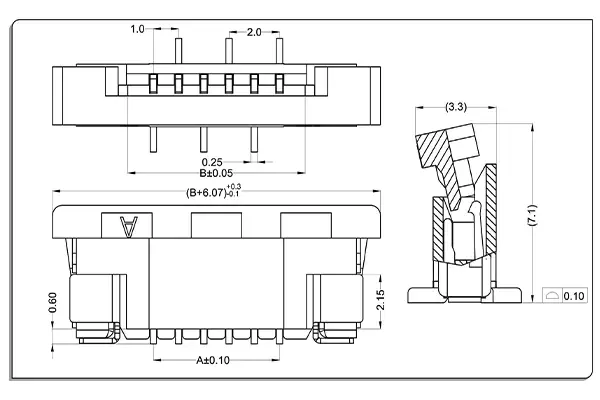

1.0mm Pitch ZIF S/T FPC Flat Connector H=5.5
Material and Finish ：
Housing:LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:Brass;
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 4 | LL10553-04 | 3 | 5.03 |
| 5 | LL10553-05 | 4 | 6.03 |
| 6 | LL10553-06 | 5 | 7.03 |
| 7 | LL10553-07 | 6 | 8.03 |
| 8 | LL10553-08 | 7 | 9.03 |
| 9 | LL10553-09 | 8 | 10.03 |
| 10 | LL10553-10 | 9 | 11.03 |
| 11 | LL10553-11 | 10 | 12.03 |
| 12 | LL10553-12 | 11 | 13.03 |
| 13 | LL10553-13 | 12 | 14.03 |
| 14 | LL10553-14 | 13 | 15.03 |
| - | - | - | - |
| 40 | LL10553-40 | 39 | 41.03 |

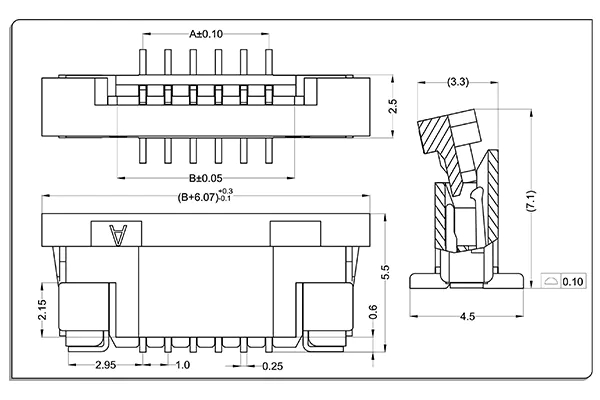

1.0mm Pitch ZIF S/T Abreast PIN H=5.5
Material and Finish ：
Housing:LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:Brass;
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 4 | LL10550-04 | 3 | 5.03 |
| 5 | LL10550-05 | 4 | 6.03 |
| 6 | LL10550-06 | 5 | 7.03 |
| 7 | LL10550-07 | 6 | 8.03 |
| 8 | LL10550-08 | 7 | 9.03 |
| 9 | LL10550-09 | 8 | 10.03 |
| 10 | LL10550-10 | 9 | 11.03 |
| 11 | LL10550-11 | 10 | 12.03 |
| 12 | LL10550-12 | 11 | 13.03 |
| 13 | LL10550-13 | 12 | 14.03 |
| 14 | LL10550-14 | 13 | 15.03 |
| - | - | - | - |
| 40 | LL10550-40 | 39 | 41.03 |
