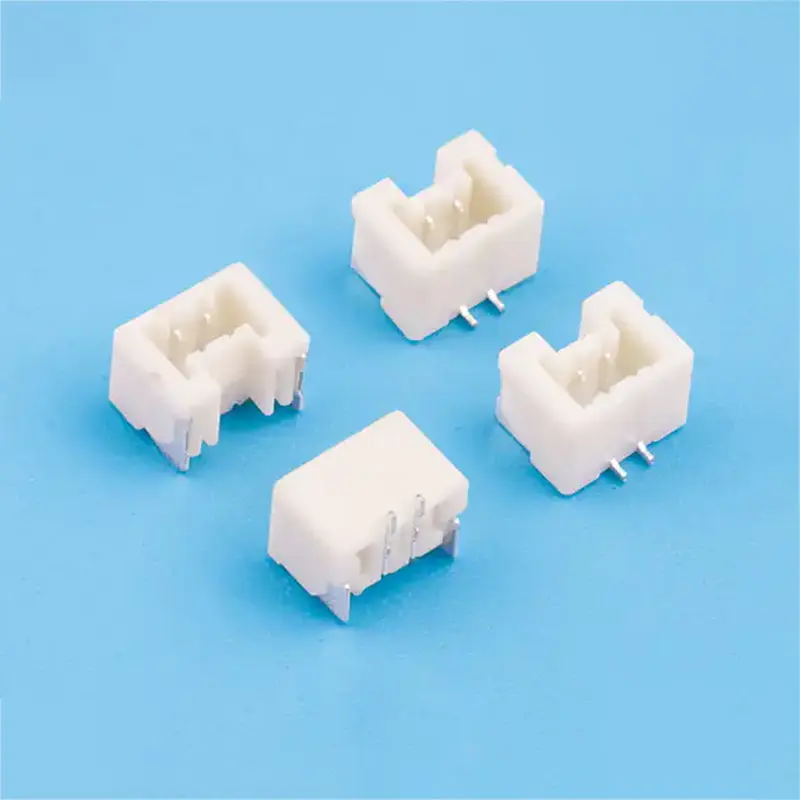

1.1.25-B Type Board-to-Board Connector.jpg

1.25-B Type Board-to-Board Connector

BTB board-to-board connectors are an important electronic component with features such as small size, lightweight, and high reliability. They are widely used in various fields such as electronic products, automotive electronics, industrial control, and medical equipment. When purchasing, it is necessary to choose the appropriate model and specification based on actual requirements, pay attention to the material and plating of the contact points, consider environmental adaptability;1.25mm pitch board-to-board connector kit, wire-to-board plugs and receptacles, durable interface.

    Contact us
    Product Details

    Application Areas

    1.Electronic Products: BTB board-to-board connectors are widely used in mobile phones, tablets, laptops, TVs, and other electronic products for connecting circuit boards and power supply, signal transmission, etc.

    2.Automotive Electronics: In the field of automotive electronics, BTB board-to-board connectors are used to connect various modules such as car instrument panels, in-car entertainment systems, navigation systems, etc., to achieve information transmission and control.

    3.Industrial Control: BTB board-to-board connectors are also widely used in industrial control systems for connecting sensors, actuators, controllers, and other devices to achieve automatic control and monitoring.

    4.Medical Devices: In medical devices, BTB board-to-board connectors are used to connect various circuit boards and modules such as electrocardiographs, blood pressure monitors, ventilators, etc., to ensure the normal operation of the equipment and data transmission.

    Specifications

    Diagram Specification
      1、CKT: 2Pin
    2、Current rating: 1A AC/DC
    3、Voltage rating(max): 125V, AC/DC
    4、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current)
    5、Contact resistance:value≤20mΩ After environmental testing≤30mΩ
    6、Insulation resistance: ≥100MΩ
    7、Withstand voltage: 500VAC(rms)
    8、Applicable PCB board thickness: 1.6mm to 2.0mm

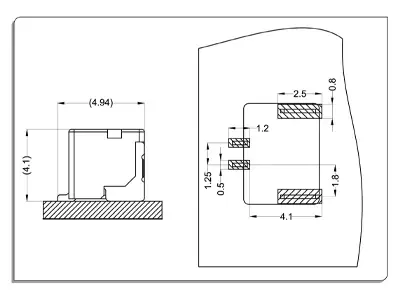

    Mounting Measurement

    Straight Angle

    3.Straight Angle.jpg

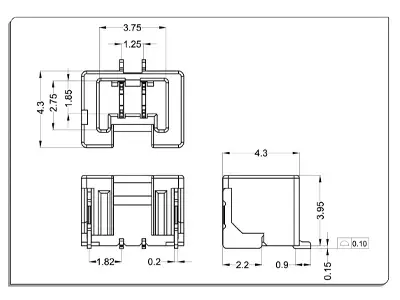

    Product description

    Wafer

    Material and Finish ：

    Housing:PA6T UL 94V-0 & Terminal:phosphor bronze & Fitting:Brass; Finish: Tin-plated & Gold-plated

    4.Product description.jpg
