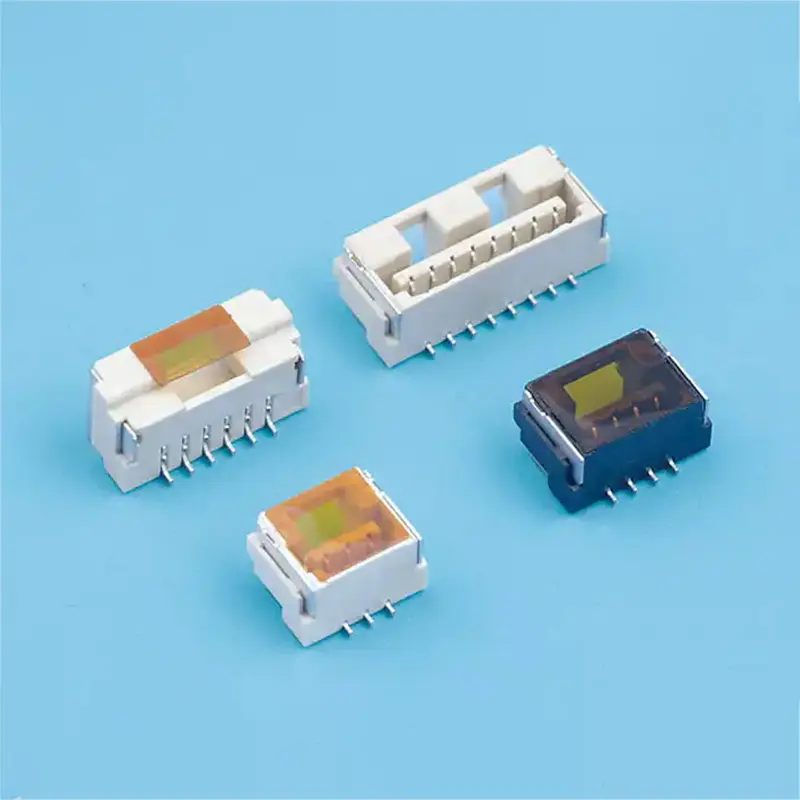

1.1.25-C Type PCB Wire-to-Board Strip Connector.jpg

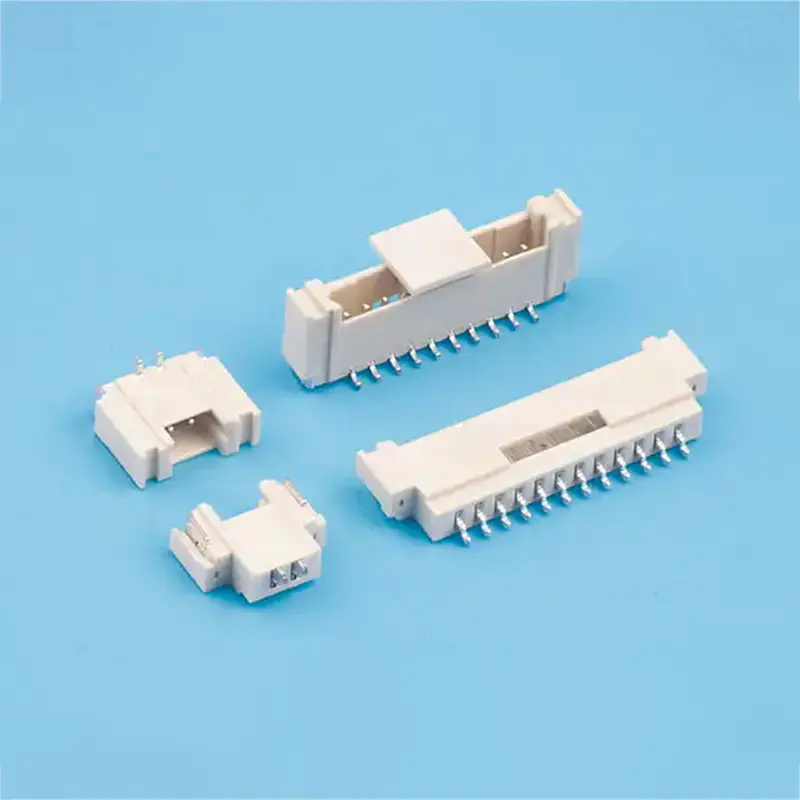

1.1.25-DF16 Type PCB Wire-to-Board Strip Connector.jpg

1.25-C/DF16 Type PCB Wire-to-Board Strip Connector

1.25mm pitch wire-to-board strip connector, pcb mount, high-density interconnect system, durable, for industrial and commercial applications;1.25mm pitch wire-to-board strip connector kit, wire-to-board wire harness plug, compact design, electronics repair and assembly

    Contact us
    Product Details

    Specifications

    Model Diagram Specification
    1.25-C Type PCB Wire-to-Board Strip Connector 1、CKT: 2Pin to 15Pin
    2、Current rating: 1A AC/DC
    3、Voltage rating(max): 50V, AC/DC
    4、Working Temperature: -25°C~+85°C,
    (Including temperature rise in applying electrical current)
    5、Contact resistance:Initial value ≤20mΩ
    After environmental testing ≤40mΩ
    6、Insulation resistance: ≥100MΩ
    7、Withstand voltage: 500VAC(rms)
    8、Applicable PCB board thickness: 1.6mm to 2.0mm
    1.25-DF16 Type PCB Wire-to-Board Strip Connector 1、CKT: 2Pin to 30Pin
    2、Current rating: 1A AC/DC
    3、Voltage rating(max): 150V, AC/DC
    4、Working Temperature: -25°C~+85°C,
    (Including temperature rise in applying electrical current)
    5、Contact resistance: Initial value ≤20mΩ
    After environmental testing≤30mΩ
    6、Insulation resistance: ≥500MΩ
    7、Withstand voltage: 500VAC(rms)
    8、Applicable PCB board thickness: 1.6mm to 2.0mm

    Mounting Measurement

      Straight Angle Right Angle
    1.25-C Type PCB Wire-to-Board Strip Connector
    1.25-DF16 Type PCB Wire-to-Board Strip Connector

    Product description

    1.25-C Type

    Wafer

    Material and Finish :

    Housing:LCP UL .94V-0 & Terminal:phosphor bronze & Fitting:Brass;

    Finish: Tin-plated & Gold-plated

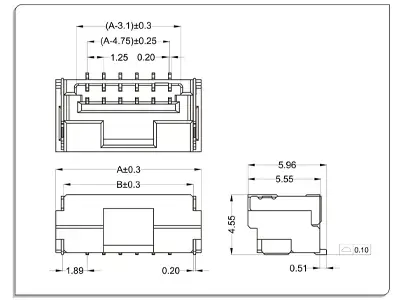

    3.Product description.1.jpg

    CKT Part No DIM A DIM B
    2 WT125CL-02 6 4.78
    3 WT125CL-03 7.25 6.03
    4 WT125CL-04 8.5 7.28
    5 WT125CL-05 9.75 8.53
    6 WT125CL-06 11 9.78
    7 WT125CL-07 12.25 11.03
    8 WT125CL-08 13.5 12.28
    9 WT125CL-09 10 13.53
    10 WT125CL-10 14.75 14.78
    11 WT125CL-11 16 16.03
    12 WT125CL-12 17.25 17.28
    - - - -
    15 WT125CL-15 22.25 21.3

    Material and Finish :

    Housing:LCP UL .94V-0 & Terminal:phosphor bronze & Fitting:Brass;

    Finish:Tin-plated & Gold-plated

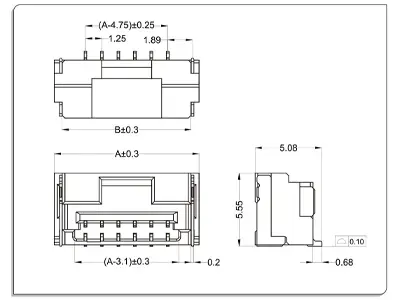

    3.Product description.2.jpg

    CKT Part No DIM A DIM B
    2 WT125CW-02 6 4.78
    3 WT125CW-03 7.25 6.03
    4 WT125CW-04 8.5 7.28
    5 WT125CW-05 9.75 8.53
    6 WT125CW-06 11 9.78
    7 WT125CW-07 12.25 11.03
    8 WT125CW-08 13.5 12.28
    9 WT125CW-09 14.75 13.53
    10 WT125CW-10 16 14.78
    11 WT125CW-11 17.25 16.03
    12 WT125CW-12 18.5 17.28
    - - - -
    15 WT125CW-15 22.25 21.03

    1.25-DF16 Type

    Wafer

    Material and Finish :

    Housing:LCP UL 94V-0 & Terminal:Brass & Fitting:Brass;

    Finish: Tin-plated & Gold-plated

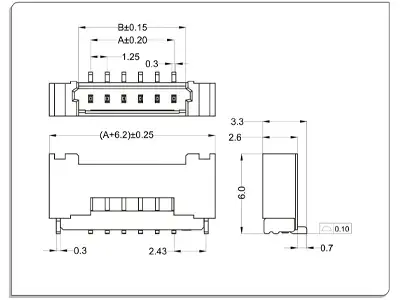

    3.Product description.3.jpg

    CKT Part No DIM A DIM B
    2 WT125FL-02 1.25 3.05
    3 WT125FL-03 2.5 4.3
    4 WT125FL-04 3.75 5.55
    5 WT125FL-05 5 6.8
    6 WT125FL-06 6.25 8.05
    7 WT125FL-07 7.5 9.3
    8 WT125FL-08 8.75 10.55
    9 WT125FL-09 10 11.8
    10 WT125FL-10 11.25 13.05
    11 WT125FL-11 12.5 14.3
    12 WT125FL-12 13.75 15.55
    - - - -
    30 WT125FL-30 36.25 38.05

    Material and Finish :

    Housing:LCP UL94V-0 & Terminal:Brass & Fitting:Brass;

    Finish: Tin-plated & Gold-plated

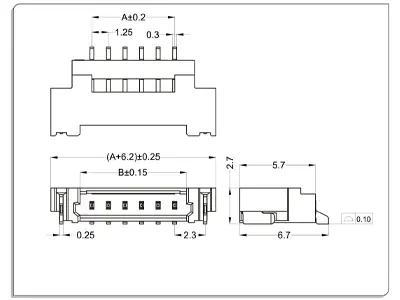

    3.Product description.4.jpg

    CKT Part No DIM A DIM B
    2 WT125FW-02 1.25 3.05
    3 WT125FW-03 2.5 4.3
    4 WT125FW-04 3.75 5.55
    5 WT125FW-05 5 6.8
    6 WT125FW-06 6.25 8.05
    7 WT125FW-07 7.5 9.3
    8 WT125FW-08 8.75 10.55
    9 WT125FW-09 10 11.8
    10 WT125FW-10 11.25 13.05
    11 WT125FW-11 12.5 14.3
    12 WT125FW-12 13.75 15.55
    - - - -
    30 WT125FW-30 36.25 38.05
