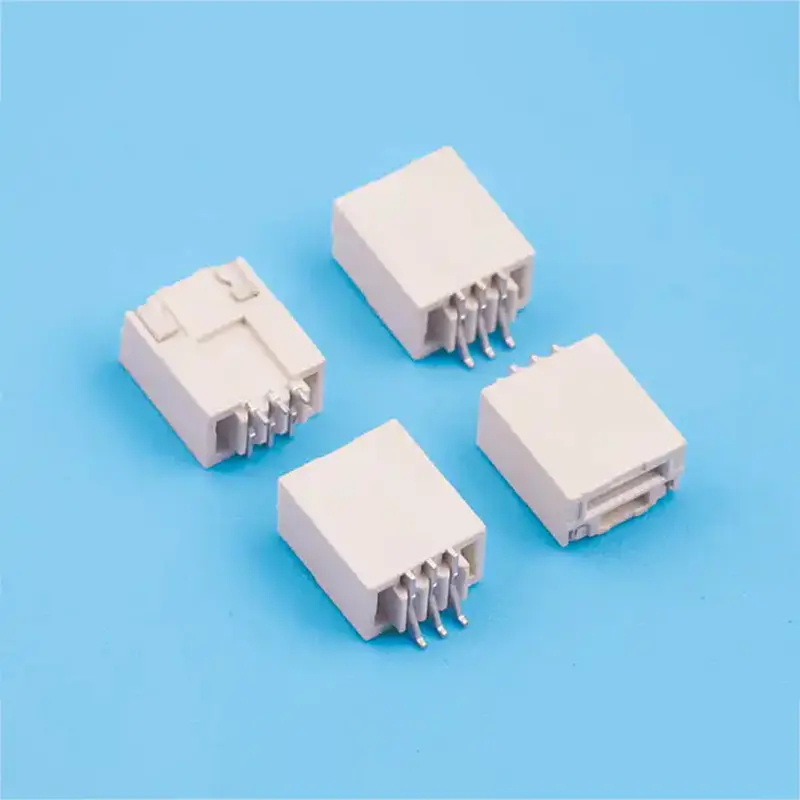

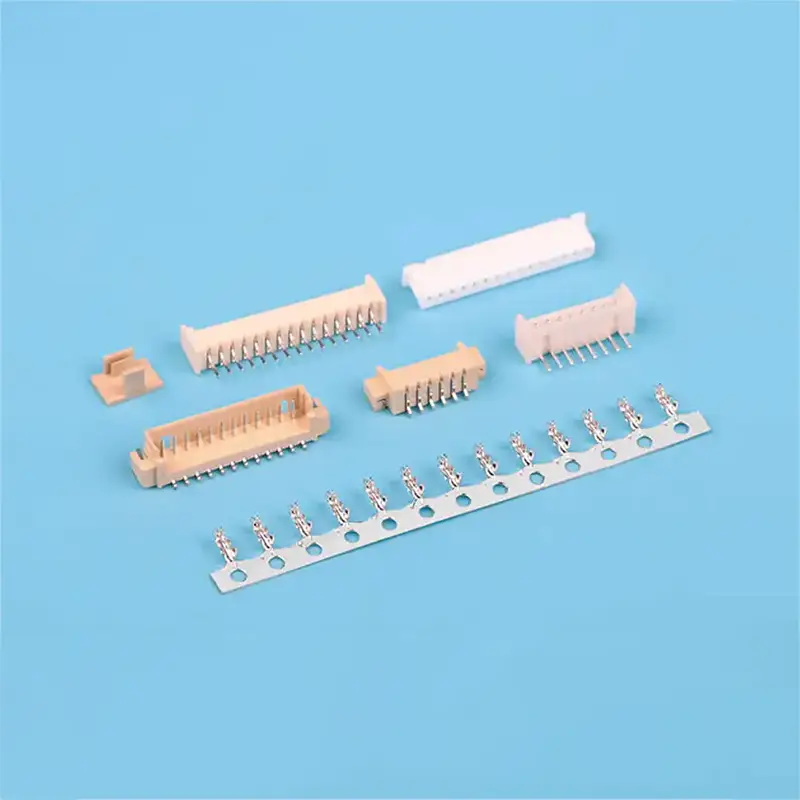

1.25-D/A Type PCB Wire-to-Board Strip Connector

Specifications

Model	Diagram	Specification
1.25-A Type PCB Wire-to-Board Strip Connector		1、CKT: 3Pin 2、Current rating: 1A AC/DC 3、Voltage rating(max): 125V, AC/DC 4、Working Temperature: -25°C~+85°C, (Including temperature rise in applying electrical current) 5、Contact resistance: Initial value ≤20mΩ After environmental testing≤30mΩ 6、Insulation resistance: ≥100MΩ 7、Withstand voltage: 500VAC(rms) 8、Applicable PCB board thickness: 1.6mm to 2.0mm
1.25-D Type PCB Wire-to-Board Strip Connector		1、CKT: 2Pin to 20Pin 2、Current rating: 1A AC/DC 3、Voltage rating(max): 125V， AC/IDC 4、Working Temperature: -25°C~+85°C, (Including temperature rise in applying electrical current) 5、Contact resistance: Initial value ≤20mΩ After environmental testing≤40mΩ 6、Insulation resistance: ≥100MΩ 7、Withstand voltage: 500VAC(rms) 8、Applicable wire: AWG #32 to #28 9、Applicable PCB board thickness: 1.6mm to 2.0mm

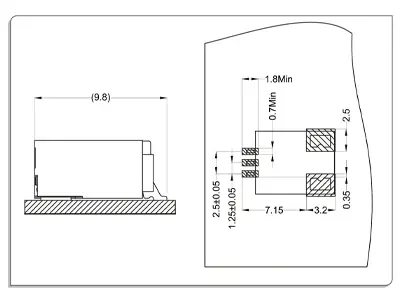

Mounting Measurement

1.25-D

Right Angle

1.25-A

Straight Angle	Right Angle

Product Parameter

1.25-A

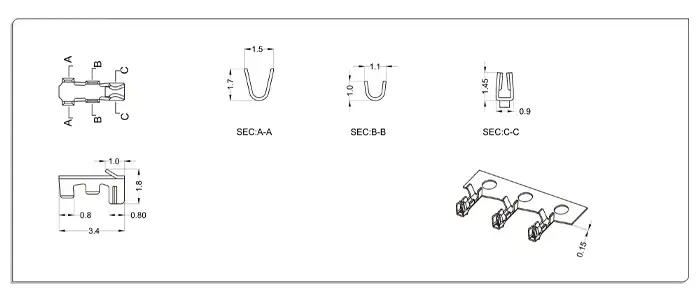

Terminal: T=0.15mm

Part No.	Wire Range	Insulation O.D	Material	Finish
WT125A0- T0	AWG#32~ #28	0.8mm MAX	phosphor bronze	Tin & Gold-plated

Product description

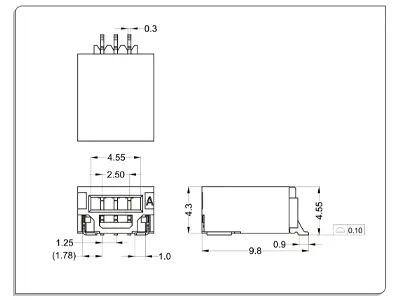

1.25-D

Wafer

Material and Finish :

Housing:LCP UL94V-0 & Terminal:phosphor bronze & Fitting:Brass; Finish: Tin-plated & Gold-plated

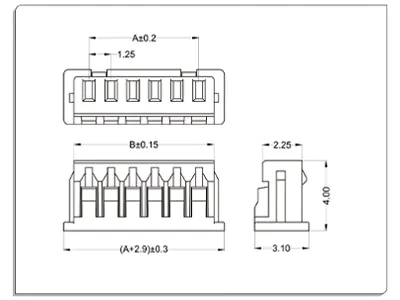

1.25-A

Housing

Material: Nylon 66 UL 94V-0

CKT	Part No	DIM A	DIM B
2	WT125A0-02	1.25	2.95
3	WT125A0-03	2.5	4.2
4	WT125A0-04	3.75	5.45
5	WT125A0-05	5	6.7
6	WT125A0-06	6.25	7.95
7	WT125A0-07	7.5	9.2
8	WT125A0-08	8.75	10.45
9	WT125A0-09	10	11.7
10	WT125A0-10	11.25	12.95
11	WT125A0-11	12.5	14.2
12	WT125A0-12	13.75	15.45
-	-	-	-
20	WT125A0-20	23.75	25.45

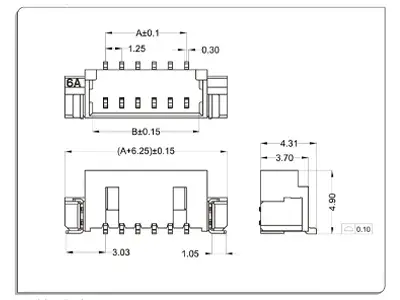

Wafer

Material and Finish :

Housing:LCP UL 94V-0 & Terminal:Brass & Fitting:Brass;

Finish:Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
2	WT125AL-02	1.25	3.25
3	WT125AL-03	2.5	4.5
4	WT125AL-04	3.75	5.75
5	WT125AL-05	5	7
6	WT125AL-06	6.25	8.25
7	WT125AL-07	7.5	9.5
8	WT125AL-08	8.75	10.75
9	WT125AL-09	10	12
10	WT125AL-10	11.25	13.25
11	WT125AL-11	12.5	14.5
12	WT125AL-12	13.75	15.75
-	-	-	-
20	WT125AL-20	23.75	25.75

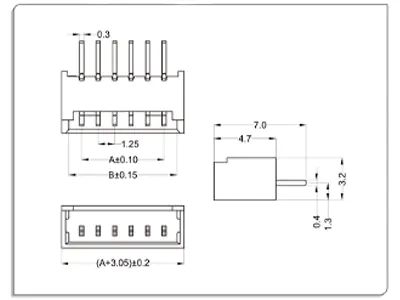

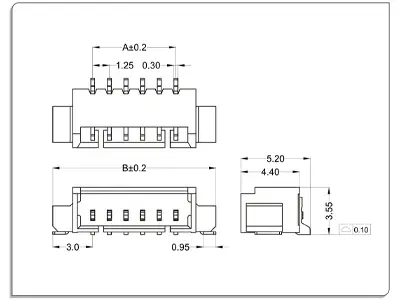

Material and Finish :

Housing:LCP UL94V-0 & Terminal:Brass & Fitting:Brass; Finish: Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
2	WT125AW-02	1.25	3.05
3	WT125AW-03	2.5	4.3
4	WT125AW-04	3.75	5.55
5	WT125AW-05	5	6.8
6	WT125AW-06	6.25	8.05
7	WT125AW-07	7.5	9.3
8	WT125AW-08	8.75	10.55
9	WT125AW-09	10	11.8
10	WT125AW-10	11.25	13.05
11	WT125AW-11	12.5	14.3
12	WT125AW-12	13.75	15.55
-	-	-	-
20	WT125AW-20	23.75	25.55

Housing

Material: Nylon 66 UL 94V-0

CKT	Part No	DIM A	DIM B
2	WT125A0-02	1.25	2.95
3	WT125A0-03	2.5	4.2
4	WT125A0-04	3.75	5.45
5	WT125A0-05	5	6.7
6	WT125A0-06	6.25	7.95
7	WT125A0-07	7.5	9.2
8	WT125A0-08	8.75	10.45
9	WT125A0-09	10	11.7
10	WT125A0-10	11.25	12.95
11	WT125A0-11	12.5	14.2
12	WT125A0-12	13.75	15.45
-	-	-	-
20	WT125A0-20	23.75	25.45

Wafer

Material and Finish :

Housing: Nylon 66 UL .94V-0 & Terminal:Brass Finish: Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
2	WT125AL-02	1.25	3.2
3	WT125AL-03	2.5	4.45
4	WT125AL-04	3.75	5.7
5	WT125AL-05	5	6.95
6	WT125AL-06	6.25	8.2
7	WT125AL-07	7.5	9.45
8	WT125AL-08	8.75	10.7
9	WT125AL-09	10	11.95
10	WT125AL-10	11.25	13.2
11	WT125AL-11	12.5	14.45
12	WT125AL-12	13.75	15.7
-	-	-	-
20	WT125AL-20	23.75	25.7

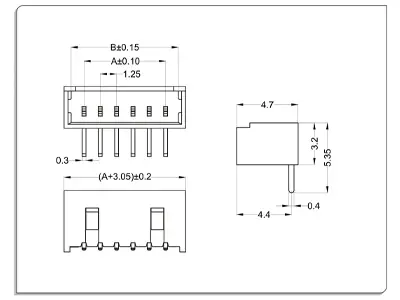

Material and Finish :

Housing: Nylon 66 UL .94V-0 & Terminal:Brass Finish: Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
2	WT125AW-02	1.25	3.2
3	WT125AW-03	2.5	4.45
4	WT125AW-04	3.75	5.7
5	WT125AW-05	5	6.95
6	WT125AW-06	6.25	8.2
7	WT125AW-07	7.5	9.45
8	WT125AW-08	8.75	10.7
9	WT125AW-09	10	11.95
10	WT125AW-10	11.25	13.2
11	WT125AW-11	12.5	14.45
12	WT125AW-12	13.75	15.7
-	-	-	-
20	WT125AW-20	23.75	25.7
