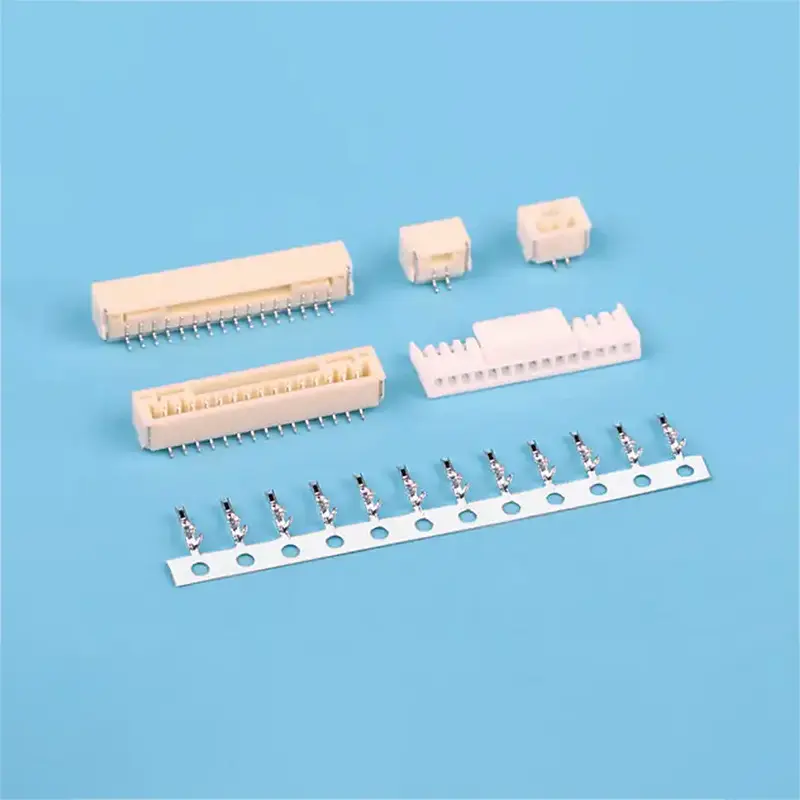

1.25-H Type (GH) PCB Wire-to-Board Strip Connector/-Customized
Specifications
| Model | Diagram | Specification |
| 1.25-H Type (GH) PCB Wire-to-Board Strip Connector |  |
1、CKT: 2Pin to 18Pin 2、Current rating: 1A AC/DC 3、Voltage rating(max); 50V, AC/DC 4、Working Temperature: -25°C~+85°C, (Including temperature rise in applying electrical current) 5、Contact resistance: Initial value ≤20mΩ After environmental testing≤40mΩ 6、Insulation resistance: ≥100MΩ 7、Withstand voltage: 500VAC(rms) 8、Applicable wire: AWG #32 to #26 9、Applicable PCB board thickness: 1.6mm to 2.0mm |

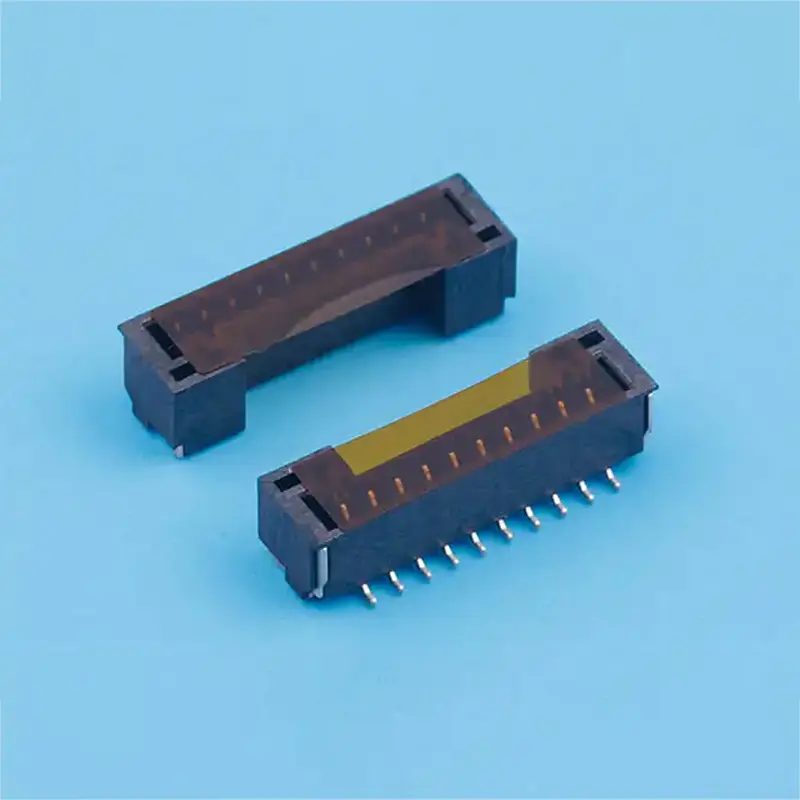

| 1.25-H Type (GH)PCB Wire-to-Board Strip Connector-Customized |  |
Mounting Measurement
| Straight Angle | Right Angle | |
| 1.25-H Type (GH) PCB Wire-to-Board Strip Connector |
|
|
| 1.25-H Type (GH)PCB Wire-to-Board Strip Connector-Customized |
|
 |
Product Parameter

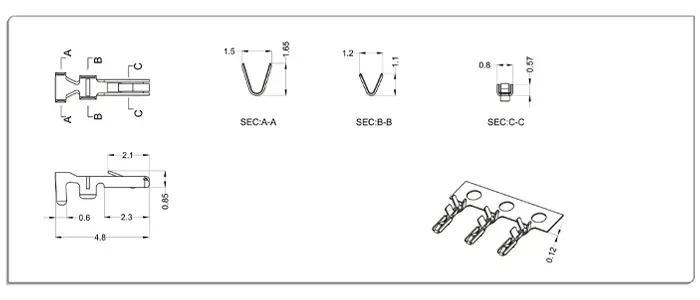

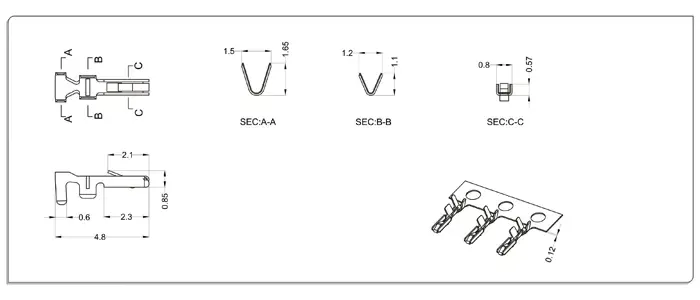

1.25-H Type (GH) PCB Wire-to-Board Strip Connector
Terminal: T=0.12mm
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| WT125H0- T0 | AWG#32~ #26 | 1.0mm MAX | phosphor bronze | Tin & Gold-plated |
1.25-H Type (GH)PCB Wire-to-Board Strip Connector-Customized
Terminal: T=0.12mm
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| WT125H0- T0 | AWG#32~ #26 | 1.0mm MAX | phosphor bronze | Tin & Gold-plated |

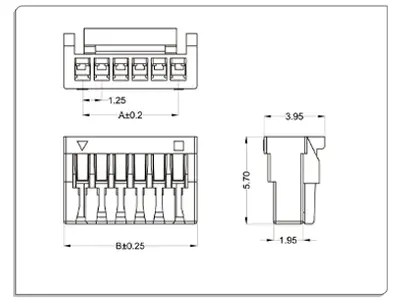

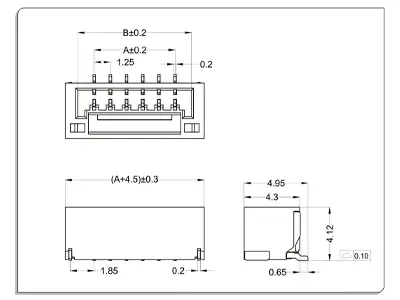

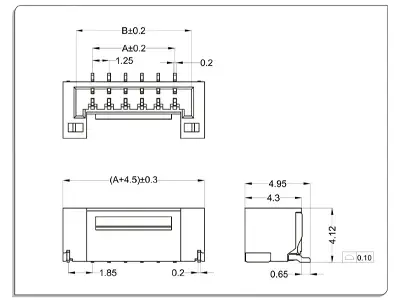

Product description
1.25-H Type (GH) PCB Wire-to-Board Strip Connector
Housing
Material: Nylon 66 UL 94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | WT125H0-02 | 1.25 | 3.75 |
| 3 | WT125H0-03 | 2.5 | 5 |
| 4 | WT125H0-04 | 3.75 | 6.25 |
| 5 | WT125H0-05 | 5 | 7.5 |
| 6 | WT125H0-06 | 6.25 | 8.75 |
| 7 | WT125H0-07 | 7.5 | 10 |
| 8 | WT125H0-08 | 8.75 | 11.25 |
| 9 | WT125H0-09 | 10 | 12.5 |
| 10 | WT125H0-10 | 11.25 | 13.75 |
| 11 | WT125H0-11 | 12.5 | 15 |
| 12 | WT125H0-12 | 13.75 | 16.25 |
| - | - | - | - |
| 18 | WT125H0-18 | 21.25 | 23.75 |

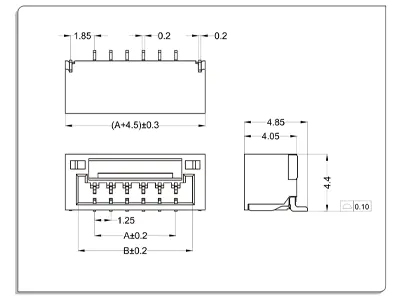

Wafer
Material and Finish :
Housing:PA6T UL 94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;
Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2 | WT125HL-02 | 1.25 | 3.8 |
| 3 | WT125HL-03 | 2.5 | 5.05 |
| 4 | WT125HL-04 | 3.75 | 6.3 |
| 5 | WT125HL-05 | 5 | 7.55 |
| 6 | WT125HL-06 | 6.25 | 8.8 |
| 7 | WT125HL-07 | 7.5 | 10.05 |
| 8 | WT125HL-08 | 8.75 | 11.3 |
| 9 | WT125HL-09 | 10 | 12.55 |
| 10 | WT125HL-10 | 11.25 | 13.8 |
| 11 | WT125HL-11 | 12.5 | 15.05 |
| 12 | WT125HL-12 | 13.75 | 16.3 |
| - | - | - | - |
| 16 | WT125HL-16 | 18.25 | 21.3 |
Material and Finish :
Housing:PA6T UL 94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;
Finish: Tin-plated & Gold-plated

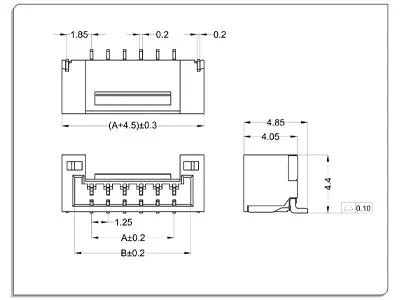

| CKT | Part No | DIM A | DIM B |
| 2 | WT125HW-02 | 1.25 | 3.8 |
| 3 | WT125HW-03 | 2.5 | 5.05 |
| 4 | WT125HW-04 | 3.75 | 6.3 |
| 5 | WT125HW-05 | 5 | 7.55 |
| 6 | WT125HW-06 | 6.25 | 8.8 |
| 7 | WT125HW-07 | 7.5 | 10.05 |
| 8 | WT125HW-08 | 8.75 | 11.3 |
| 9 | WT125HW-09 | 10 | 12.55 |
| 10 | WT125HW-10 | 11.25 | 13.8 |
| 11 | WT125HW-11 | 12.5 | 15.05 |
| 12 | WT125HW-12 | 13.75 | 16.3 |
| - | - | - | - |
| 18 | WT125HW-18 | 21.25 | 23.8 |

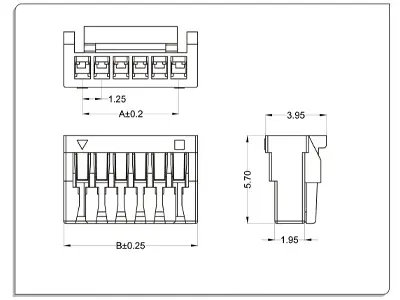

1.25-H Type (GH)PCB Wire-to-Board Strip Connector-Customized
Housing
Material: Nylon 66 UL 94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | WT125H0-02 | 1.25 | 3.75 |
| 3 | WT125H0-03 | 2.5 | 5 |
| 4 | WT125H0-04 | 3.75 | 6.25 |
| 5 | WT125H0-05 | 5 | 7.5 |
| 6 | WT125H0-06 | 6.25 | 8.75 |
| 7 | WT125H0-07 | 7.5 | 10 |
| 8 | WT125H0-08 | 8.75 | 11.25 |
| 9 | WT125H0-09 | 10 | 12.5 |
| 10 | WT125H0-10 | 11.25 | 13.75 |
| 11 | WT125H0-11 | 12.5 | 15 |
| 12 | WT125H0-12 | 13.75 | 16.25 |
| - | - | - | - |
| 18 | WT125H0-18 | 21.25 | 23.75 |
Wafer
Material and Finish :
Housing:PA6T UL 94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2 | WT125HL-02 | 1.25 | 3.8 |
| 3 | WT125HL-03 | 2.5 | 5.05 |
| 4 | WT125HL-04 | 3.75 | 6.3 |
| 5 | WT125HL-05 | 5 | 7.55 |
| 6 | WT125HL-06 | 6.25 | 8.8 |
| 7 | WT125HL-07 | 7.5 | 10.05 |
| 8 | WT125HL-08 | 8.75 | 11.3 |
| 9 | WT125HL-09 | 10 | 12.55 |
| 10 | WT125HL-10 | 11.25 | 13.8 |
| 11 | WT125HL-11 | 12.5 | 15.05 |
| 12 | WT125HL-12 | 13.75 | 16.3 |
| - | - | - | - |
| 16 | WT125HL-16 | 18.25 | 21.3 |
Material and Finish :
Housing:PA6T UL 94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2 | WT125HW-02 | 1.25 | 3.8 |
| 3 | WT125HW-03 | 2.5 | 5.05 |
| 4 | WT125HW-04 | 3.75 | 6.3 |
| 5 | WT125HW-05 | 5 | 7.55 |
| 6 | WT125HW-06 | 6.25 | 8.8 |
| 7 | WT125HW-07 | 7.5 | 10.05 |
| 8 | WT125HW-08 | 8.75 | 11.3 |
| 9 | WT125HW-09 | 10 | 12.55 |
| 10 | WT125HW-10 | 11.25 | 13.8 |
| 11 | WT125HW-11 | 12.5 | 15.05 |
| 12 | WT125HW-12 | 13.75 | 16.3 |
| - | - | - | - |
| 18 | WT125HW-18 | 21.25 | 23.8 |
