1.0mm Pitch And 1.25mm Pitch
0102030405

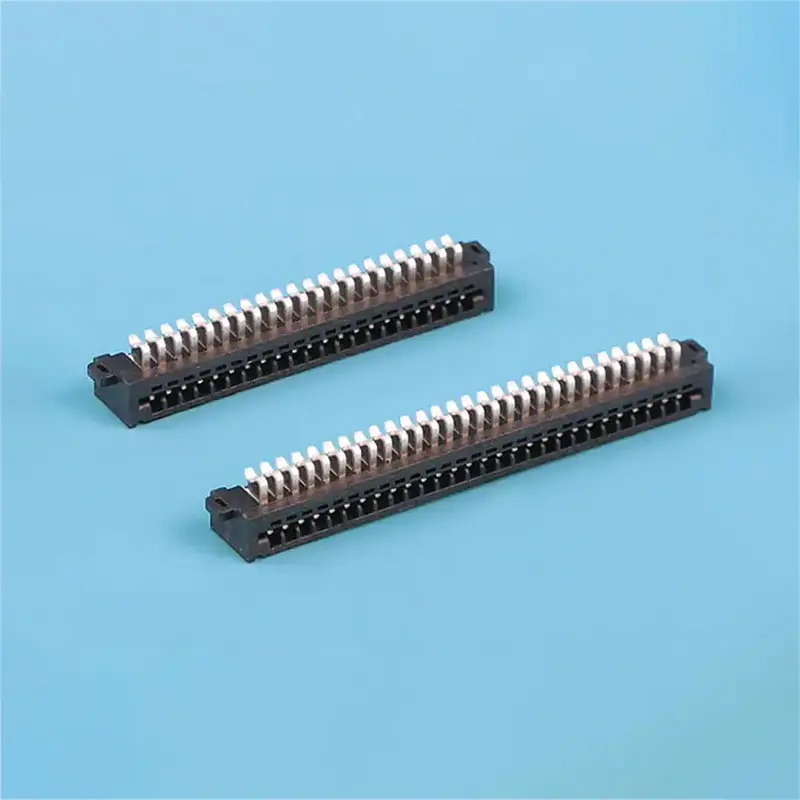

1.25- SMT Card Edge Type FPC Flat Connector
Product Features
◆Medium Size: The pitch of the 1.25mm Pitch FPC flat connector is between 1.0mm and 2.0mm, suitable for medium-density circuit board designs.
◆High Stability: It uses high-strength materials and precise manufacturing processes to ensure the stability and reliability of the connector.
◆Good Conductivity: The connector surface is plated with gold, providing good conductivity and reducing signal transmission losses.
◆Wide Compatibility: It is suitable for various FPC (Flexible Printed Circuit) connections and can be compatible with a wide range of electronic devices.
Specifications
| Diagram | Specification |
|
1、CKT: 4Pin to 30Pin 2、Current rating: 0.5A AC/DC 3、Voltage rating(max): 50V, AC/DC 4、Working Temperature: -25°C~+85"C,(Including temperature rise in applying electrical current) 5、Contact resistance: Initial value≤30mΩ After environmental testing≤50mΩ 6、Insulation resistance: ≥100MΩ 7、Withstand voltage: 500VAC(rms) 8、Applicable PCB board thickness: 1 .6mm to 2.0mm |
Mounting Measurement
| Assembly Layout | Applicable Flat Cable | P.C.B Layout |
|
|
|

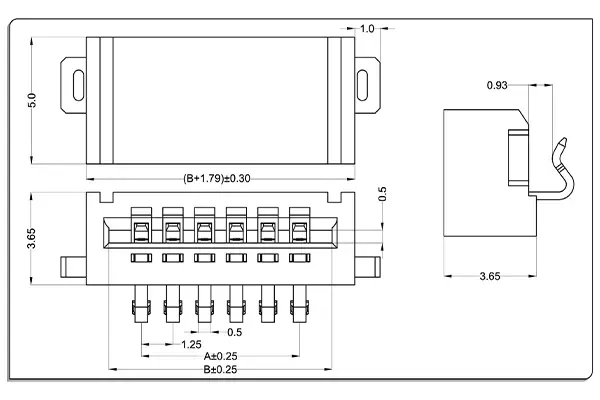

Product description
Material and Finish ：
Housing:PA6T UL94V-0 & Terminal:phosphor bronze Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 4 | KB12320-04 | 3.75 | 6.31 |
| 6 | KB12320-06 | 6.25 | 8.81 |
| 8 | KB12320-08 | 8.75 | 11.31 |
| 10 | KB12320-10 | 11.25 | 13.81 |
| 12 | KB12320-12 | 13.75 | 16.31 |
| 14 | KB12320-14 | 16.25 | 18.81 |
| 16 | KB12320-16 | 18.75 | 21.31 |
| 18 | KB12320-18 | 21.25 | 23.81 |
| 20 | KB12320-20 | 23.75 | 26.31 |
| 22 | KB12320-22 | 26.25 | 28.31 |
| 24 | KB12320-24 | 28.75 | 31.31 |
| - | - | - | - |
| 30 | KB12320-30 | 36.25 | 38.81 |
