2.5mm Pitch
0102030405
2.5-K Type(XHB) Wire-to-Board Strip Connector
Specifications
| model | Diagram | Specification |

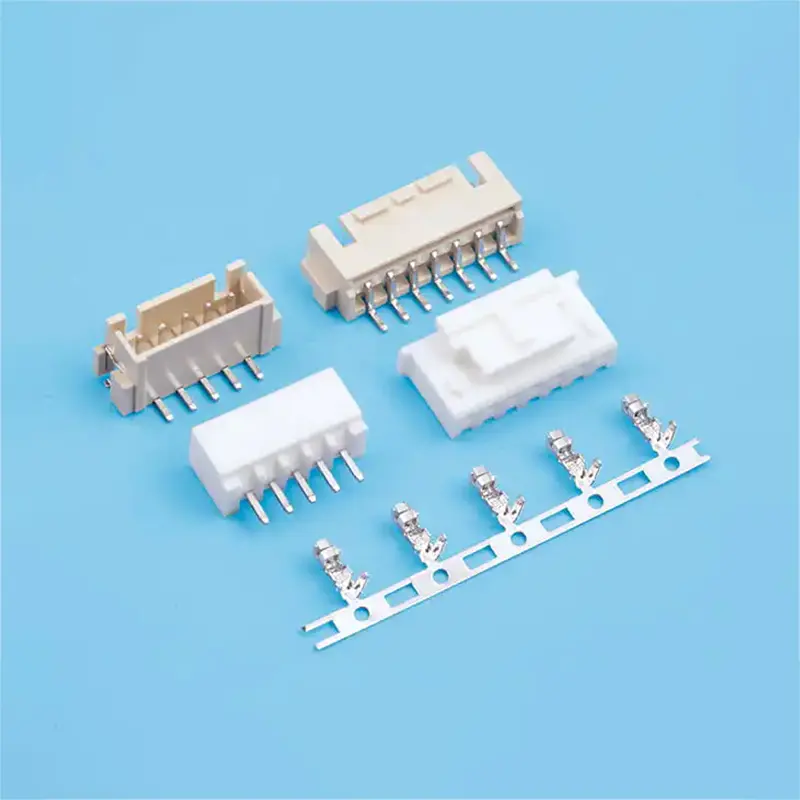

| 2.5-K Type(XHB) Wire-to-Board Strip Connector |  |
1、CKT: 2Pin to 16Pin 2、Current rating: 3A AC/DC 3、Voltage rating(max): 250V, AC/DC 4、Working Temperature: -25°C~+85°C, (Including temperature rise in applying electrical current) 5、Contact resistance: Initial value ≤20mΩ After environmental testing≤30mΩ 6、Insulation resistance: ≥1000MΩ 7、Withstand voltage: 1000VAC(rms) 8、Applicable wire: AWG #28 to #22 9、Applicable PCB board thickness: 1.6mm to 2.0mm |

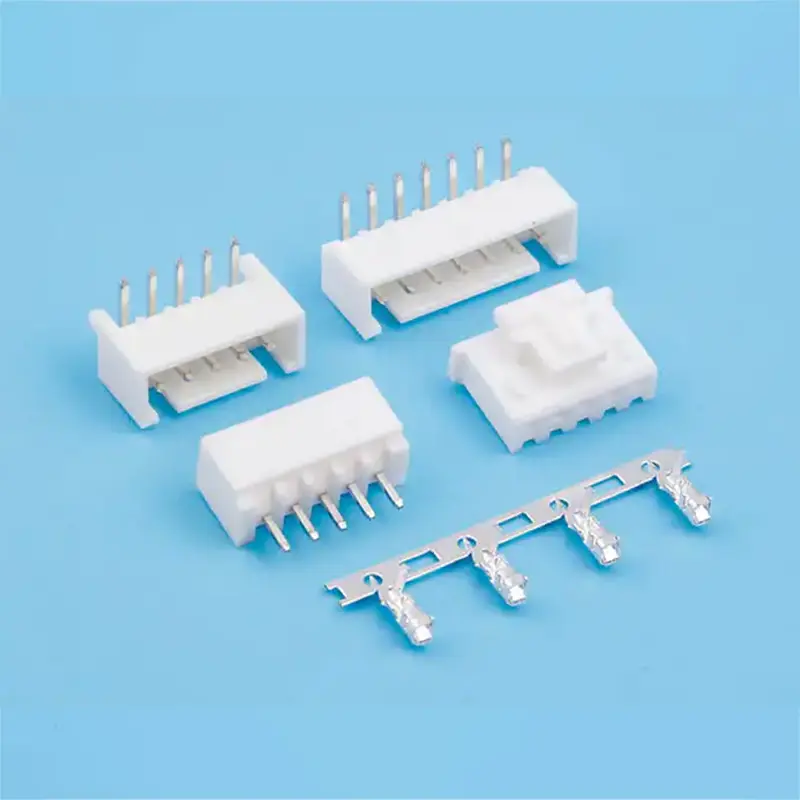

| 2.5-K Type(XHB) Wire-to-Board Strip Connector 2 |  |
Mounting Measurement
| Straight Angle | Right Angle | |
| 2.5-K Type(XHB) Wire-to-Board Strip Connector |  |
 |
| 2.5-K Type(XHB) Wire-to-Board Strip Connector 2 |  |
 |

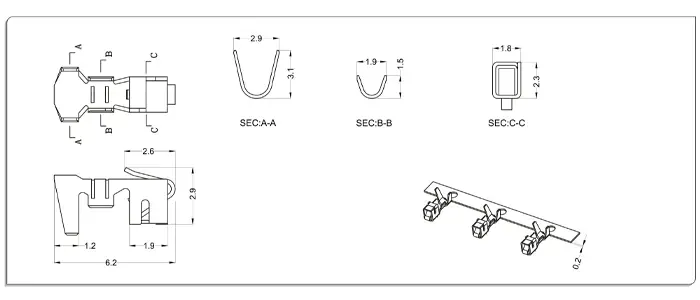

Product Parameter
Terminal: T=0.2mm
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| WT250M0-T0 | AWG#28~ #22 | 1.90mm MAX | phosphor bronze | Tin & Gold-plated |
Product description

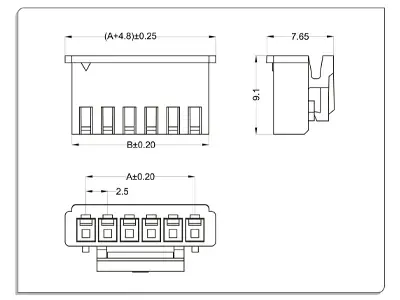

2.5-K Type(XHB).1 Housing
Material: Nylon 66 UL94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | WT250K0-02 | 2.5 | 7.5 |
| 3 | WT250K0-03 | 5 | 10 |
| 4 | WT250K0-04 | 7.5 | 12.5 |
| 5 | WT250K0-05 | 10 | 15 |
| 6 | WT250K0-06 | 12.5 | 17.5 |
| 7 | WT250K0-07 | 15 | 20 |
| 8 | WT250K0-08 | 17.5 | 22.5 |
| 9 | WT250K0-09 | 20 | 25 |
| 10 | WT250K0-10 | 22.5 | 27.5 |
| 11 | WT250K0-11 | 25 | 30 |
| 12 | WT250K0-12 | 27.5 | 32.5 |
| - | - | - | - |
| 16 | WT250K0-16 | 37.5 | 42.5 |

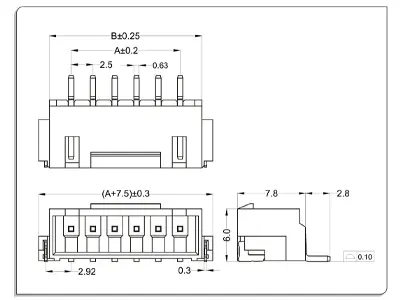

Wafer
Material and Finish:
Housing: LCP UL 94V-0 & Terminal: Brass & Fitting:Brass;
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2 | WT250KL-02 | 2.5 | 7.5 |
| 3 | WT250KL-03 | 5 | 10 |
| 4 | WT250KL-04 | 7.5 | 12.5 |
| 5 | WT250KL-05 | 10 | 15 |
| 6 | WT250KL-06 | 12.5 | 17.5 |
| 7 | WT250KL-07 | 15 | 20 |
| 8 | WT250KL-08 | 17.5 | 22.5 |
| 9 | WT250KL-09 | 20 | 25 |
| 10 | WT250KL-10 | 22.5 | 27.5 |
| 11 | WT250KL-11 | 25 | 30 |
| 12 | WT250KL-12 | 27.5 | 32.5 |
| - | - | - | - |
| 16 | WT250KL-16 | 37.5 | 42.5 |

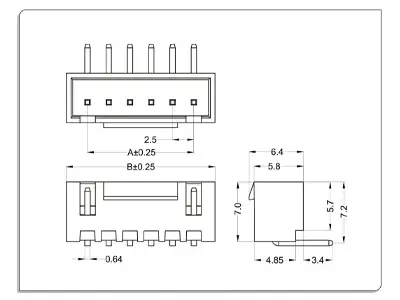

Material and Finish:
Housing:LCP UL94V-0 & Terminal:Brass & Fitting:Brass;
Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 2 | WT250KW-02 | 2.5 | 7.5 |
| 3 | WT250KW-03 | 5 | 10 |
| 4 | WT250KW-04 | 7.5 | 12.5 |
| 5 | WT250KW-05 | 10 | 15 |
| 6 | WT250KW-06 | 12.5 | 17.5 |
| 7 | WT250KW-07 | 15 | 20 |
| 8 | WT250KW-08 | 17.5 | 22.5 |
| 9 | WT250KW-09 | 20 | 25 |
| 10 | WT250KW-10 | 22.5 | 27.5 |
| 11 | WT250KW-11 | 25 | 30 |
| 12 | WT250KW-12 | 27.5 | 32.5 |
| - | - | - | - |
| 16 | WT250KW-16 | 37.5 | 42.5 |

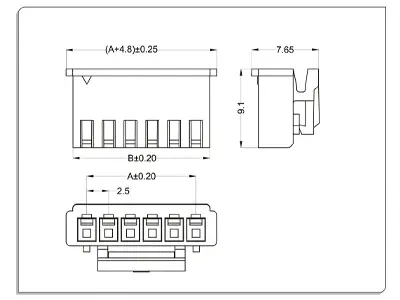

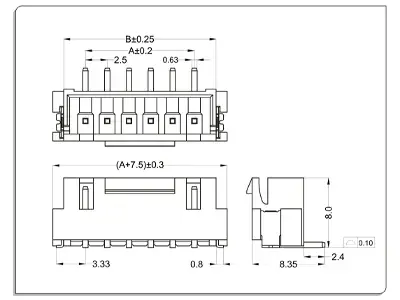

2.5-K Type(XHB).2Housing
Material: Nylon 66 UL94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | WT250K0-02 | 2.5 | 7.5 |
| 3 | WT250K0-03 | 5 | 10 |
| 4 | WT250K0-04 | 7.5 | 12.5 |
| 5 | WT250K0-05 | 10 | 15 |
| 6 | WT250K0-06 | 12.5 | 17.5 |
| 7 | WT250K0-07 | 15 | 20 |
| 8 | WT250K0-08 | 17.5 | 22.5 |
| 9 | WT250K0-09 | 20 | 25 |
| 10 | WT250K0-10 | 22.5 | 27.5 |
| 11 | WT250K0-11 | 25 | 30 |
| 12 | WT250K0-12 | 27.5 | 32.5 |
| - | - | - | - |
| 16 | WT250K0-16 | 37.5 | 42.5 |

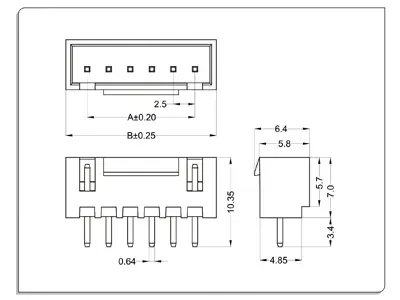

Wafer
Material and Finish:
| CKT | Part No | DIM A | DIM B |
| 2 | WT250KL-02 | 2.5 | 7.5 |
| 3 | WT250KL-03 | 5 | 10 |
| - | - | - | - |
| 16 | WT250KL-16 | 37.5 | 42.5 |
| 2 | WT250KW-02 | 2.5 | 7.5 |
| 3 | WT250KW-03 | 5 | 10 |
| - | - | - | - |
| 16 | WT250KW-16 | 37.5 | 42.5 |
| 2 | WT250KW-02 | 2.5 | 7.5 |
| 3 | WT250KW-03 | 5 | 10 |
| - | - | - | |
| 16 | WT250KW-16 | 37.5 | 42.5 |
Material and Finish:
Housing: Nylon 66 UL 94V-0 & Terminal:Brass Finish: Tin-plated & Gold-plated
