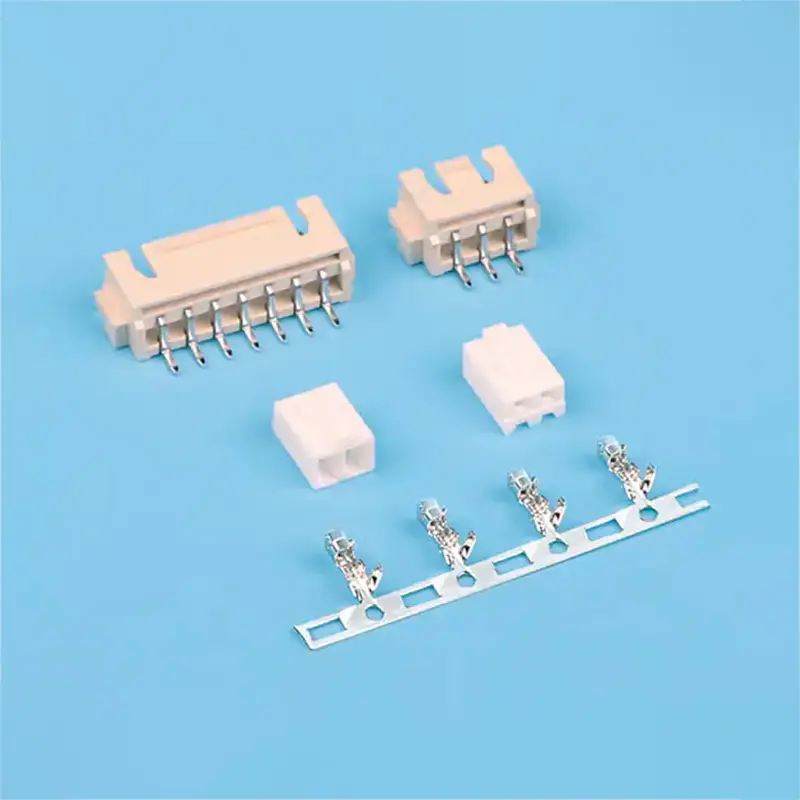

1.2.5-M Type(XHD) Locking WTB Board-to-Board Connector Strip.jpg

2.5-M Type(XHD) Locking WTB Board-to-Board Connector Strip

2.5mm pitch locking wtb board-to-board connector strip, wire-to-board interface, pcb mount, durable housing, snap-in locking feature.The connector uses high-quality materials and strict quality control, exhibiting good durability and reliability, capable of stable operation in various harsh environments for a long time.The connector supports the transmission of multiple signal types, including high-speed data transmission, power supply, and ground connection, meeting the needs of different application scenarios.

    Contact us
    Product Details

    Specifications

    Diagram Specification
    1、CKT: 2Pin to 16Pin
    2、Current rating: 3A AC/DC
    3、Voltage rating(max): 250V, AC/DC
    4、Working Temperature: -25°C~+85°C,
    (Including temperature rise in applying electrical current)
    5、Contact resistance: Initial value ≤20mΩ
    After environmental testing≤30mΩ
    6、Insulation resistance: ≥1000MΩ
    7、Withstand voltage:1000VAC(rms)
    8、Applicable wire: AWG #28 to #22
    9、Applicable PCB board thickness: 1.6mm to 2.0mm

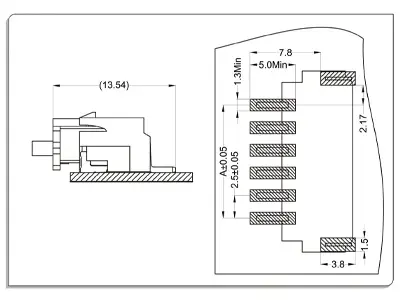

    Mounting Measurement

    Right Angle

    3.Right Angle.jpg

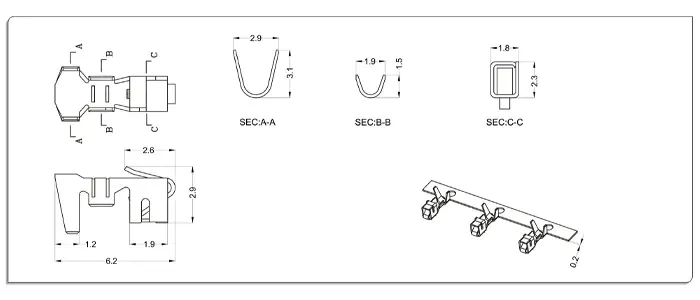

    Product Parameter

    Terminal: T=0.2mm

    4.Product Parameter.1.jpg

    Part No. Wire Range Insulation O.D Material Finish
    WT250M0-T0 AWG#28~ #22 1.90mm MAX phosphor bronze Tin & Gold-plated

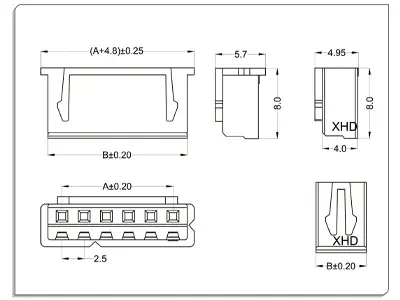

    Product description

    Housing

    Material: Nylon 66 UL 94V-0

    5.Product description.1.jpg

    CKT Part No DIM A DIM B
    2 WT250M0-02 2.5 5.7
    3 WT250M0-03 5 8.2
    4 WT250M0-04 7.5 10.7
    5 WT250M0-05 10 13.2
    6 WT250M0-06 12.5 15.7
    7 WT250M0-07 15 18.2
    8 WT250M0-08 17.5 20.7
    9 WT250M0-09 20 23.2
    10 WT250M0-10 22.5 25.7
    11 WT250M0-11 25 28.2
    12 WT250M0-12 27.5 30.7
    - - - -
    16 WT250M0-16 37.5 40.7

    Wafer

    Material and Finish:

    Housing: LCP UL 94V-0 & Terminal:Brass Fitting:Brass; Finish: Tin-plated & Gold-plated

    CKT Part No DIM A DIM B
    3 WT250MW-03 5 10
    4 WT250MW-04 7.5 12.5
    5 WT250MW-05 10 15
    6 WT250MW-06 12.5 17.5
    7 WT250MW-07 15 20
    8 WT250MW-08 17.5 22.5
    9 WT250MW-09 20 25
    10 WT250MW-10 22.5 27.5
    11 WT250MW-11 25 30
    12 WT250MW-12 27.5 32.5
    - - - -
    16 WT250MW-16 37.5 42.5
