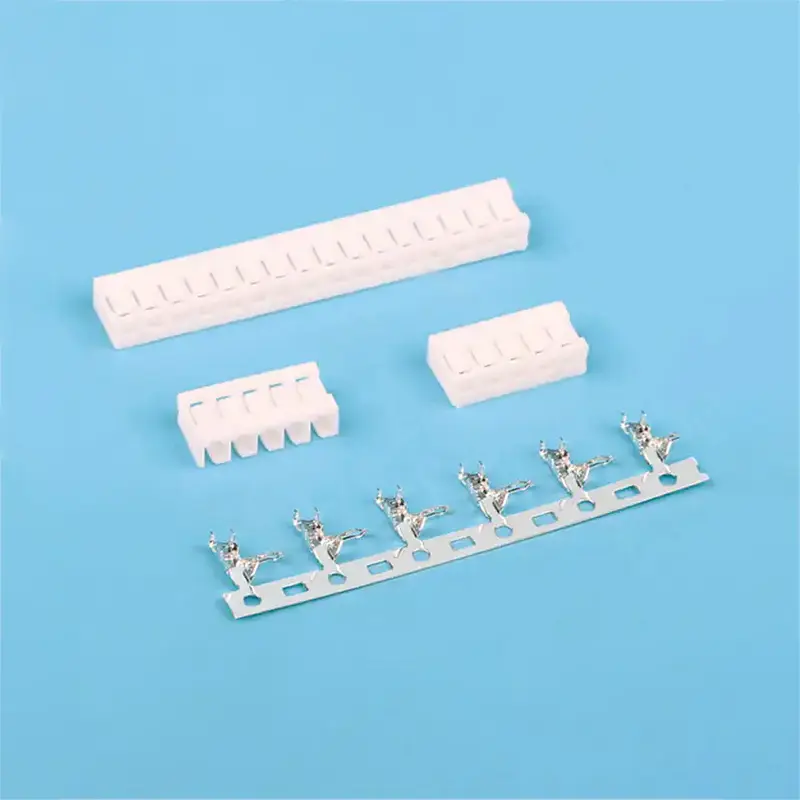

1.JC25 Wire-to-Board Strip Connector.jpg

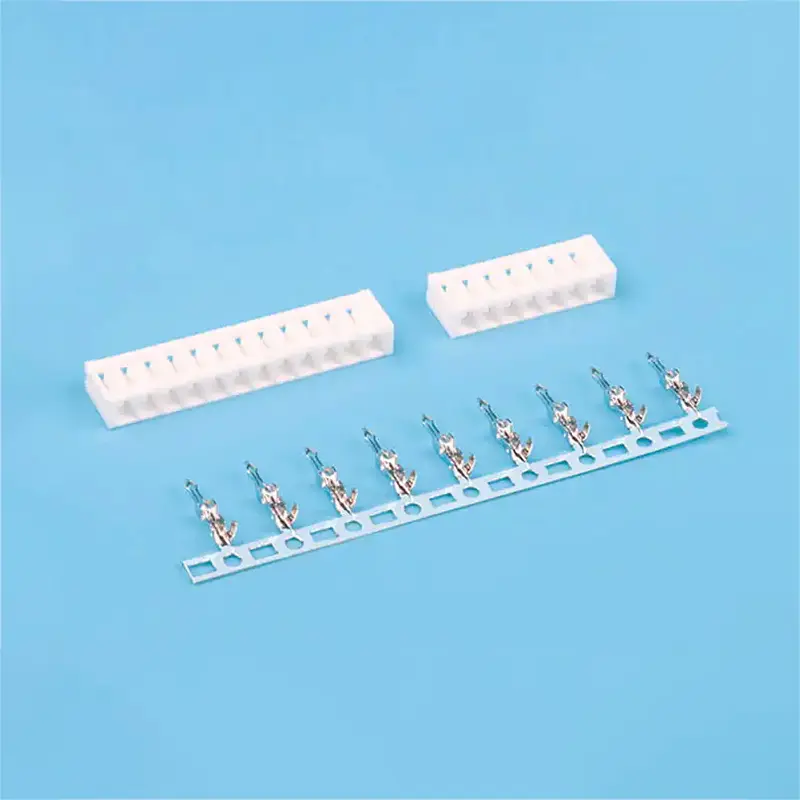

1.SCN2.5 Wire-to-Board Straight Connector.jpg

JC25/SCN2.5 Wire-to-Board Strip Connector

2.5mm pitch wire-to-board strip connector, pcb mount, multi-circuit power connector, durable, for electronic applications；2.5mm pitch wire-to-board strip connector, pcb mount, signal transfer, electrical component, durable housing, industrial standard, easy installation.

    Contact us
    Product Details

    Specifications

    model Diagram Specification
    JC25 Wire-to-Board Strip Connector 1、CKT: 2Pin to 16Pin

    2、Current rating: 2.5A AC/DC

    3、Voltage rating(max): 250V, AC/DC

    4、Working Temperature: -25°C~+85°C,

    (Including temperature rise in applying electrical current)

    5、Insulation resistance: ≥1000MΩ

    6、Withstand voltage: 1000VAC(rms)

    7、Applicable wire: AWG #26 to #22

    8、Applicable PCB board thickness: 1.6mm to 2.0mm
    SCN2.5 Wire-to-Board Straight Connector

    Product Parameter

    JC25 Terminal: T=0.2mm

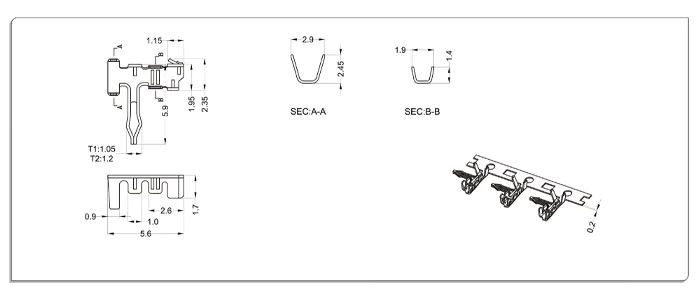

    3.Product Parameter.1.jpg

    Part No. Wire Range Insulation O.D Material Finish
    WTJC250-T0 AWG#26~ #22 1.70mm MAX phosphor bronze Tin & Gold-plated

    SZN2.5 Terminal: T=0.2mm

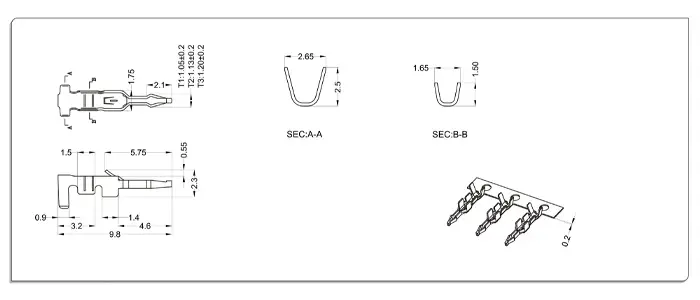

    3.Product Parameter.2.jpg

    Part No. Wire Range Insulation O.D Material Finish
    WTSCN25-T0 AWG#26~ #22 1.70mm MAX phosphor bronze Tin & Gold-plated

    Product description

    JC25 Housing

    Material: Nylon 66 UL94V-0

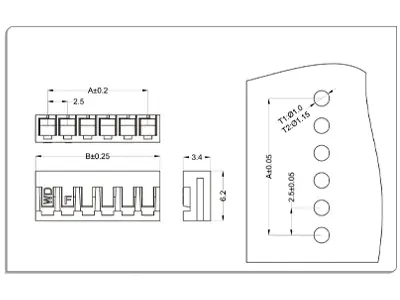

    4.Product description.1.jpg

    CKT Part No DIM A DIM B
    2 WTJC250-02 2.5 5.5
    3 WTJC250-03 5 8
    4 WTJC250-04 7.5 10.5
    5 WTJC250-05 10 13
    6 WTJC250-06 12.5 15.5
    7 WTJC250-07 15 18
    8 WTJC250-08 17.5 20.5
    9 WTJC250-09 20 23
    10 WTJC250-10 22.5 25.5
    11 WTJC250-11 25 28
    12 WTJC250-12 27.5 30.5
    - - - -
    16 WTJC250-13 37.5 40.5

    SZN1.5 Housing

    Material: Nylon 66 UL94V-0

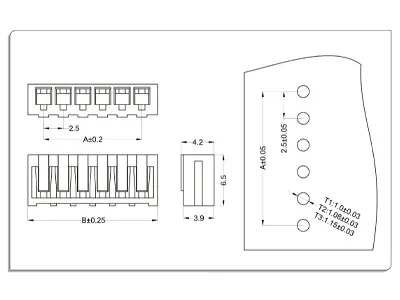

    4.Product description.2.jpg

    CKT Part No DIM A DIM B
    2 WTSCN25-02 2.5 6.5
    3 WTSCN25-03 5 9
    4 WTSCN25-04 7.5 11.5
    5 WTSCN25-05 10 14
    6 WTSCN25-06 12.5 16.5
    7 WTSCN25-07 15 19
    8 WTSCN25-08 17.5 21.5
    9 WTSCN25-09 20 24
    10 WTSCN25-10 22.5 26.5
    11 WTSCN25-11 25 29
    12 WTSCN25-12 27.5 31.5
    - - - -
    16 WTSCN25-13 37.5 41.5
