0.5mm Pitch
0102030405

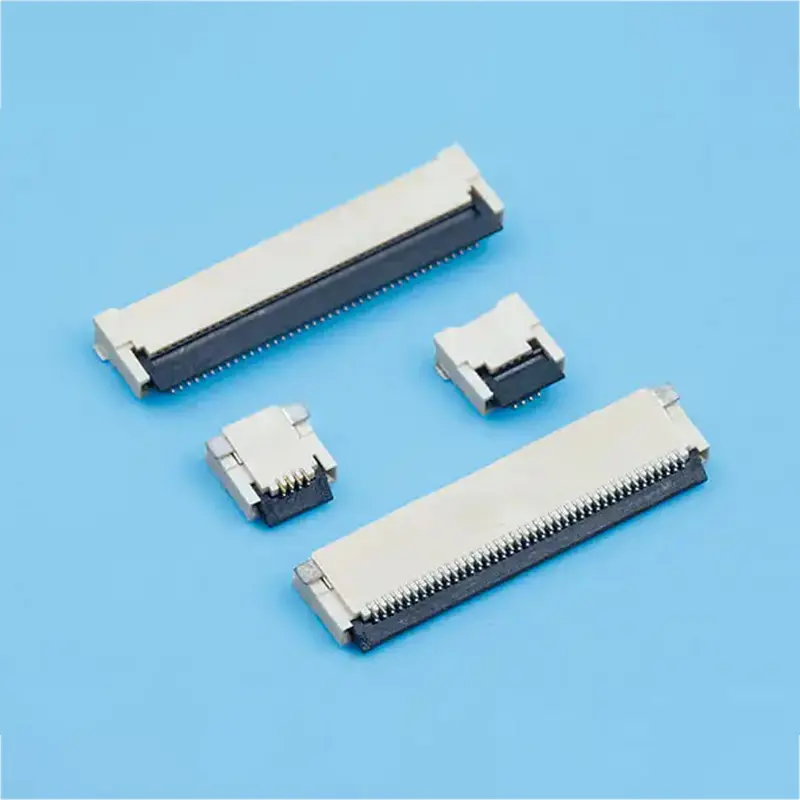

0.5mm Pitch Back Flip Type H=2.0
Product Advantages
1.Adaptable to Multiple Application Scenarios: FPC flat connector 0.5mm Pitch is suitable for various electronic device connection needs, including smartphones, tablets, laptops, digital cameras, etc., meeting the needs of different industries and fields.2.High Durability: FPC flat connector 0.5mm Pitch is made of sturdy and durable materials, with good durability and corrosion resistance, allowing for long-term use in harsh working environments.
3.Easy Installation and Maintenance: The flat connector design makes it easier to install and maintain the connector, reducing the time and cost required for installation and maintenance.
Specifications
| Diagram | Specification |
|
1、CKT: 4Pin to 80Pin 2、Current rating: 0.5A AC/DC 3、Voltage rating(max): 50V, AC/DC 4、Working Temperature: -25°C~+85"C, (Including temperature rise in applying electrical current) 5、Contact resistance: Initial value≤30mΩ After environmental testing≤50mΩ 6、Insulation resistance: 2500MΩ 7、Withstand voltage: 500VAC(rms) 8、Applicable PCB board thickness: 1.6mm to 2.0mm |

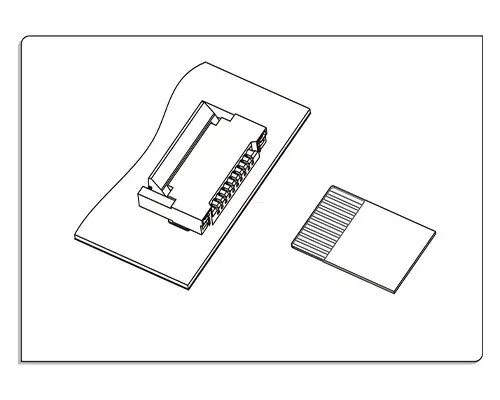

Mounting Measurement
| Assembly Layout | Applicable Flat Cable | P.C.B Layout |
|
|
 |

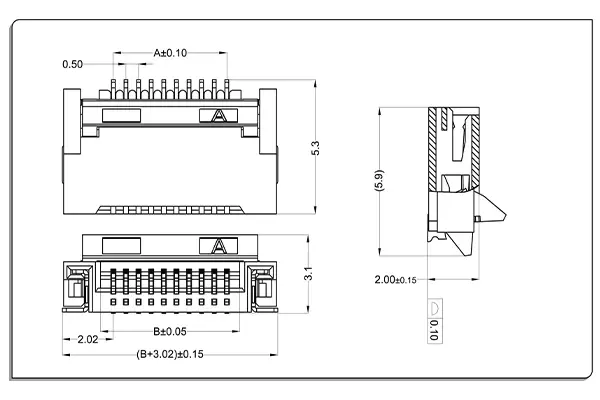

Product description
Back Flip R/A
Material and Finish ：
Housing:LCP UL94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;
Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 4 | HW05200-04 | 1.5 | 2.52 |
| 5 | HW05200-05 | 2 | 3.02 |
| 6 | HW05200-06 | 2.5 | 3.52 |
| 7 | HW05200-07 | 3 | 4.02 |
| 8 | HW05200-08 | 3.5 | 4.52 |
| 9 | HW05200-09 | 4 | 5.02 |
| 10 | HW05200-10 | 4.5 | 5.52 |
| 11 | HW05200-11 | 5 | 6.02 |
| 12 | HW05200-12 | 5.5 | 6.52 |
| 13 | HW05200-13 | 6 | 7.02 |
| 14 | HW05200-14 | 6.5 | 7.52 |
| - | - | - | - |
| 80 | HW05200-80 | 39.5 | 40.52 |
