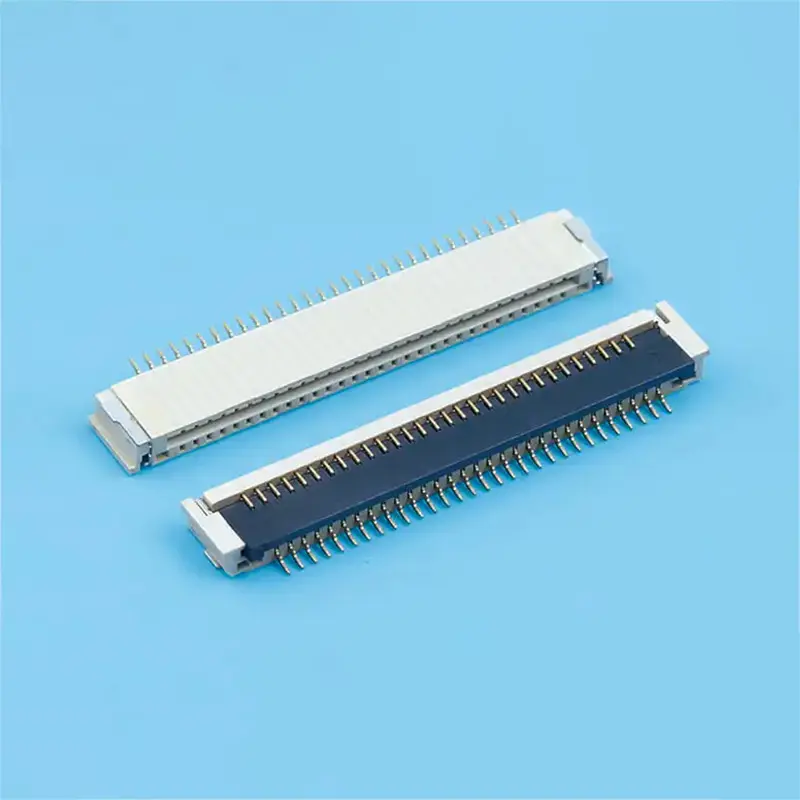

0.5mm Pitch Back Flip Type H=2.7

Product Overview

The connector supports multiple configurations from 10Pin to 68Pin and can be used in a variety of electronic systems. The 0.5A AC/DC rated current capacity ensures that it can meet medium power requirements, while the 50V AC/DC maximum rated voltage provides a safe operating range for most electronic circuits. These specifications make the 0.5mm pitch rear flap H=2.7 connector a reliable choice for engineers and designers who want to integrate FPC technology into their products.

The connector has an operating temperature range of -25°C to +85°C and can withstand a variety of environmental conditions, including the temperature rise generated when power is applied. Such a wide operating temperature range ensures that the connector can operate reliably in a variety of applications from consumer electronics to industrial equipment. The electrical performance characteristics of the 0.5mm pitch rear flap H=2.7 connector are low contact resistance, with an initial value of ≤20mΩ and a maximum value of ≤40mΩ after environmental testing.

Specifications

Diagram	Specification
	1、CKT: 10Pin to 68Pin 2、Current rating: 0.5A AC/DC 3、Voltage rating(max): 50V, AC/DC 4、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current) 5、Contact resistance:Initial value≤20mΩ After environmental testing≤40mΩ 6、Insulation resistance:≥100MΩ 7、Withstand voltage: 500VAC(rms) 8、Applicable PCB board thickness: 1.6mm to 2.0mm

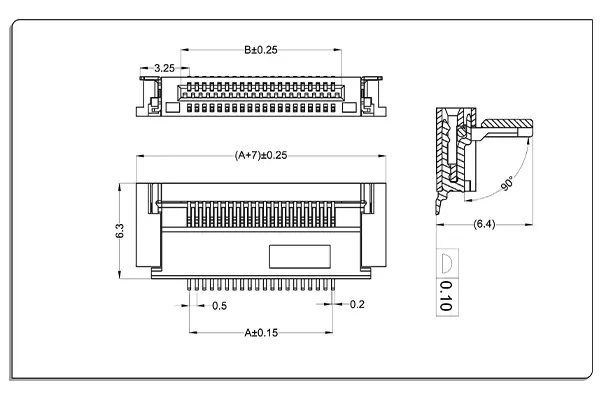

Mounting Measurement

Assembly Layout	Applicable Flat Cable	P.C.B Layout

Product description

Back Flip R/A With Buckle

Material and Finish ：

Housing:LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:Brass;

Finish: Tin-plated & Gold-plated
