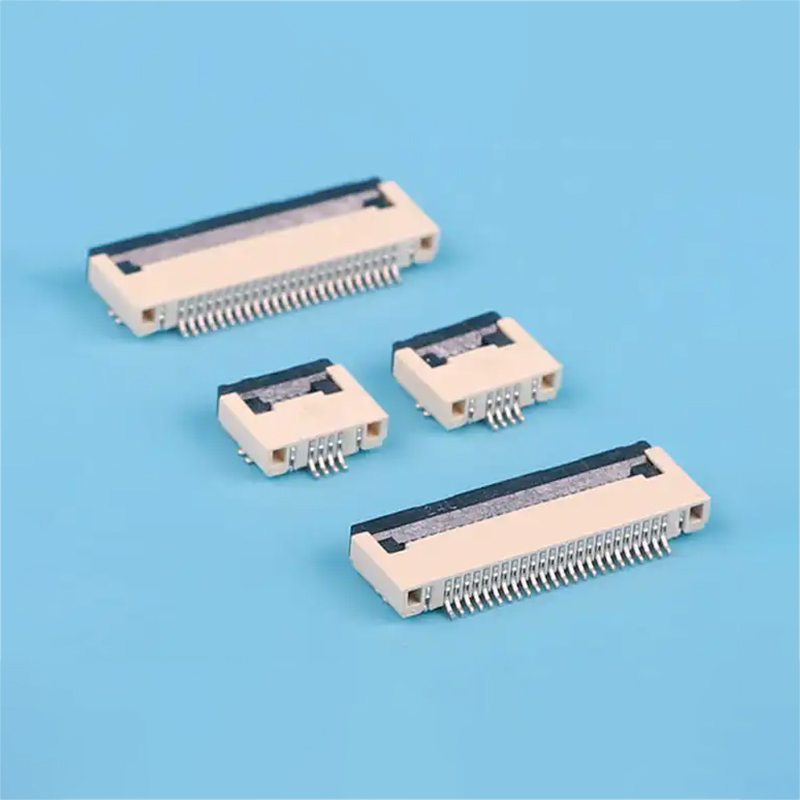

0.5mm Pitch Easy On Type H=2.0

FPC Flat Connector 0.5mm Pitch is a connector product with small pitch design, high reliability, fast plug-in and pull-out, and good signal transmission performance. Its advantages lie in saving space, improving production efficiency, reducing production costs, enhancing signal transmission quality, adapting to various application scenarios, strong durability, easy installation and maintenance, providing customized services, and good after-sales service. Whether in the fields of smartphones, tablets, laptops, or digital cameras, FPC Flat Connector 0.5mm Pitch can provide customers with high-quality connection solutions to meet the needs of different industries and fields.0.5mm pitch easy-on fpc flat ribbon connector, 2.0mm height, locking zif slide type, horizontal contact, flexible printed circuit board connector

Product Details

Product Advantages

1.Reduced Production Costs: The small pitch design of FPC flat connector 0.5mm Pitch can reduce the number and length of connectors, thereby reducing production costs.

2.Improved Signal Transmission Quality: The 0.5mm Pitch design enables the connector to provide better signal transmission performance, reducing signal loss and interference, and improving the efficiency and stability of electronic devices.

Specifications

Diagram	Specifications
	1、CKT: 4Pin to 65Pin 2、Current rating: 0.5A AC/DC 3、Voltage rating(max): 50V， AC/DC 4、Working Temperature: -25°C~+85°C, (Including temperature rise in applying electrical current) 5、Contact resistance: Initial value≤30mΩ After environmental testing≤50mΩ 6、Insulation resistance:≥500MΩ 7、Withstand voltage: 500VAC(rms) 8、Applicable PCB board thickness: 1.6mm to 2.0mm

Mounting Measurement

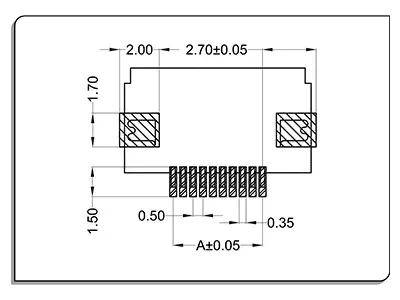

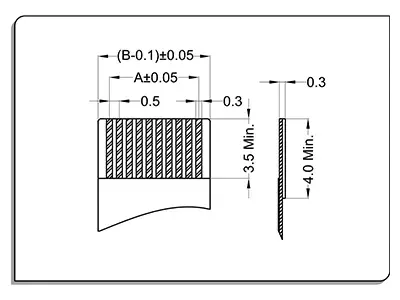

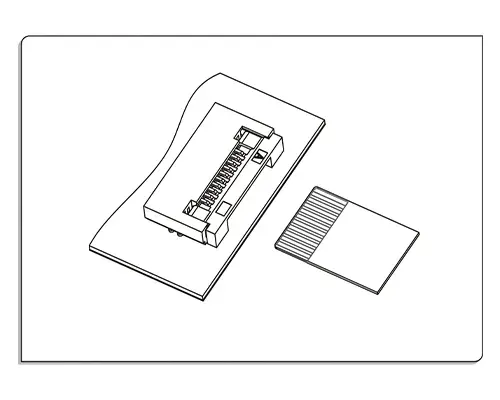

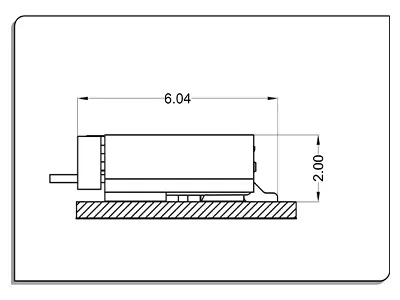

Assembly layout	Applicable Flat cable	P.C.B Layout

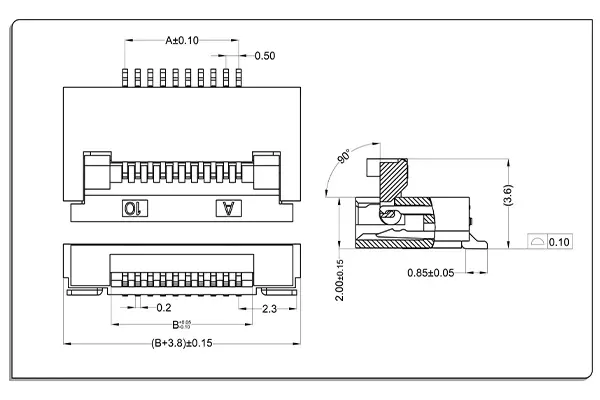

Product description

Easy-on R/A
Material and Finish ：
Housing:LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:Brass;
Finish:Tin-plated & Gold-plated
4.Product description.jpg

CKT	Part No	DIM A	DIM B
4	XW05202-04	1.5	2.6
5	XW05202-05	2	3.1
6	XW05202-06	2.5	3.6
7	XW05202-07	3	4.1
8	XW05202-08	3.5	4.6
9	XW05202-09	4	5.1
10	XW05202-10	4.5	5.6
11	XW05202-11	5	6.1
12	XW05202-12	5.5	6.6
13	XW05202-13	6	7.1
14	XW05202-14	6.5	7.6
-	-	-	-
65	XW05202-65	32.5	33.1
