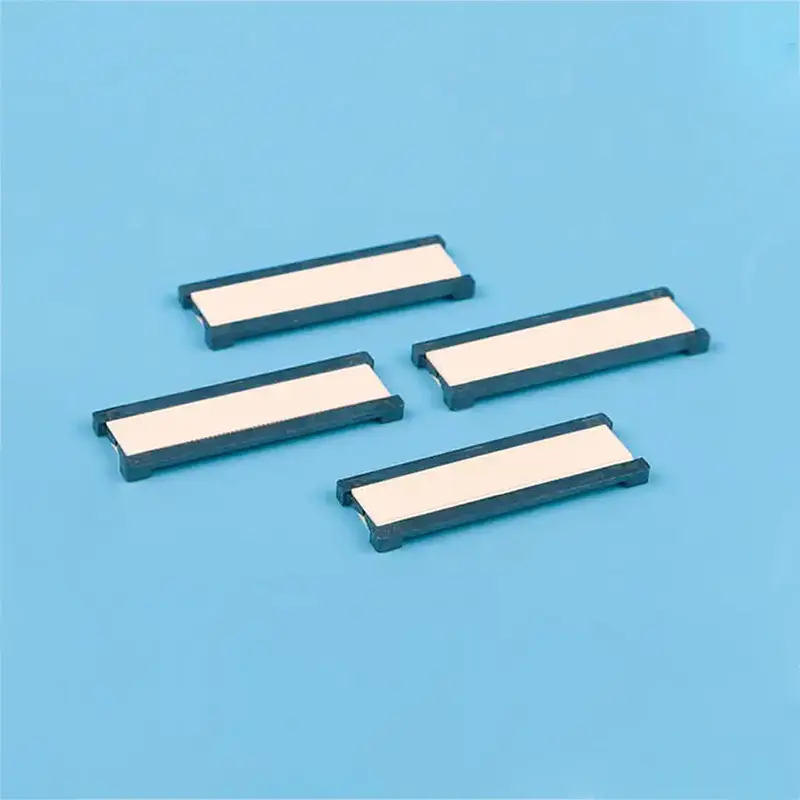

0.5mm Pitch ZIF Double Side
Product Overview
The 0.5mm Pitch ZIF Double Side connector is rated at 0.5A for both AC and DC applications. This current rating represents the maximum current that the connector can safely withstand in the event of overheating or damage. The 0.5mm Pitch ZIF Double Side connector has excellent contact resistance values. The initial contact resistance rating is ≤30mΩ, ensuring minimal energy loss during operation. After environmental testing, the contact resistance remained within the acceptable range of ≤60mΩ;adaptability to external factors such as humidity and temperature changes. The insulation resistance rating of this connector is ≥500MΩ, which is critical to preventing leakage and ensuring the safety of connected equipment.
Specifications
| Diagram | Specification |
 |
1、CKT: 4Pin to 60Pin 2、Current rating: 0.5A AC/DC 3、Voltage rating(max): 50V, AC/DC 4、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current) 5、Contact resistance: Initial value≤30mΩ After environmental testing≤60mΩ 6、Insulation resistance:≥500MΩ 7、Withstand voltage: 250VAC(rms) |
Mounting Measurement
| Assembly Layout | Applicable Flat Cable |
|
 |

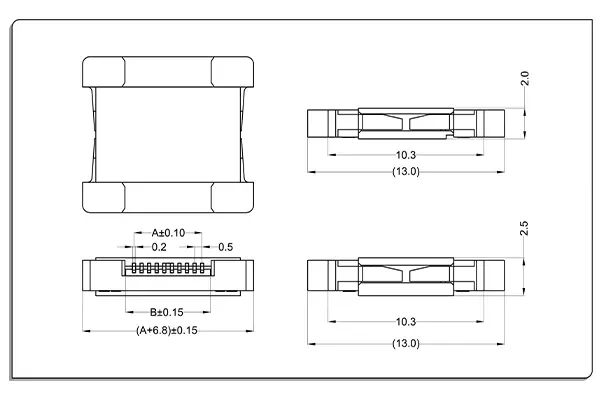

Product description
Double- Side drawing
Material and Finish ：
Housing:LCP UL 94V-0 & Terminal:phosphor bronze & Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 4 | SL05200-04 | 1.5 | 2.56 |
| 5 | SL05200-05 | 2 | 3.06 |
| 6 | SL05200-06 | 2.5 | 3.56 |
| 7 | SL05200-07 | 3 | 4.06 |
| 8 | SL05200-08 | 3.5 | 4.56 |
| - | - | - | - |
| 60 | SL05200-60 | 29.5 | 30.56 |
| 4 | SL05250-10 | 4.5 | 2.56 |
| 5 | SL05250-11 | 5 | 3.06 |
| 6 | SL05250-12 | 5.5 | 3.56 |
| 7 | SL05250-13 | 6 | 4.06 |
| 8 | SL05250-14 | 6.5 | 4.56 |
| - | - | - | - |
| 60 | SL05250-60 | 29.5 | 30.56 |
